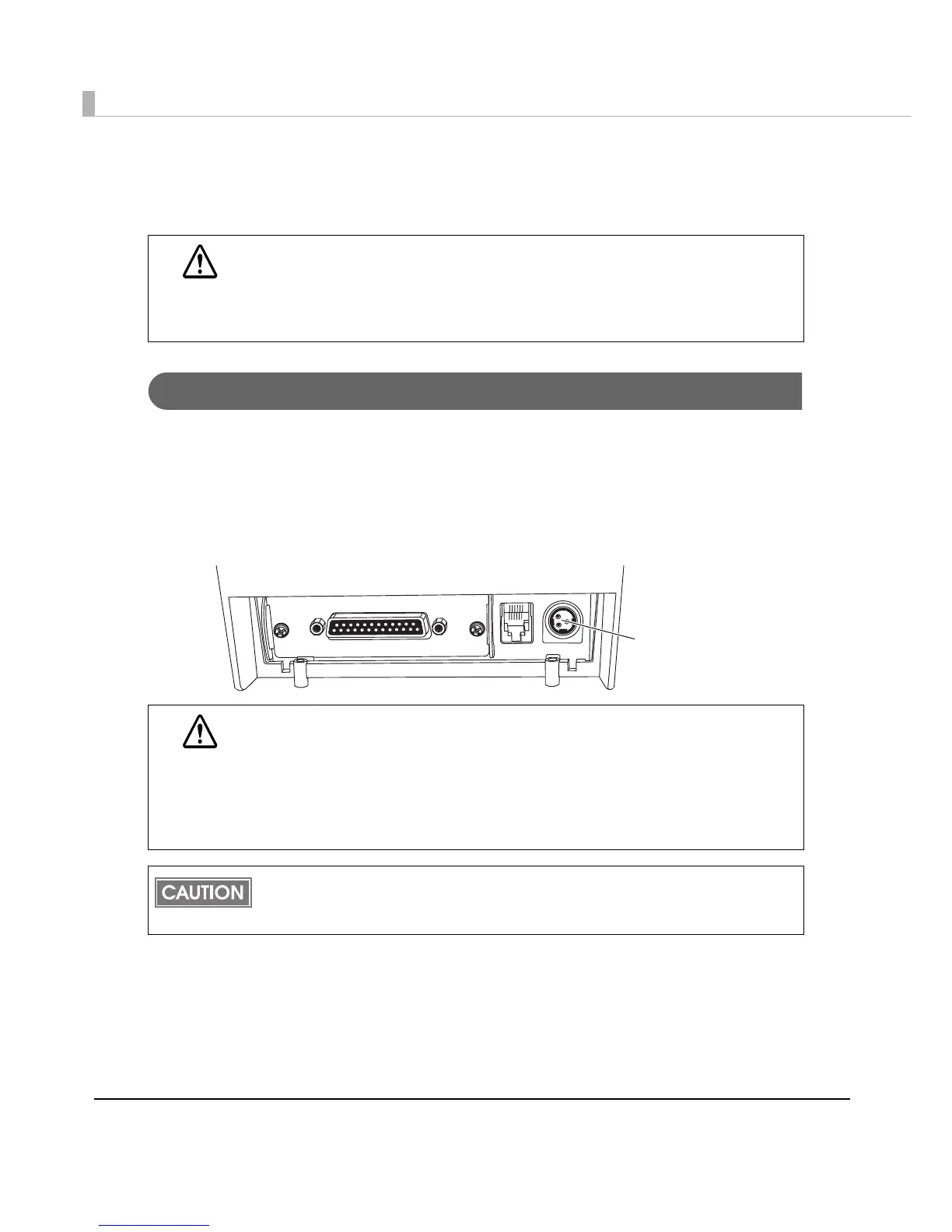

Epson TM T88IV Technical Reference Guide

54
Connecting the Power Supply Unit (PS-180)
Use the PS-180 or an equivalent product as the power supply unit.
Connecting the Power Supply Unit
1
Make sure the printer’s power supply is turned off and the power supply
unit’s power cable has been removed from the wall socket.
2
Insert the connector of the power supply cable onto the power supply
connector (stamped 24V).
WARNING
• Always use the EPSON PS-180 or an equivalent product as the power supply unit.
Using a nonstandard power supply can result in electric shock and fire.
• Should a fault ever occur in the EPSON PS-180 or equivalent product, immediately
turn off the power to the printer and remove the power supply cable from the wall
socket.
WARNING
• Be sure to remove the power supply unit’s cable from the wall socket whenever
connecting or disconnecting the power supply unit to the printer.
Failure to do so may result in damage to the power supply unit or the printer.
• Make sure the wall socket power supply satisfies the rated voltage requirements
of the power supply unit. Never insert the power supply cable plug into a socket
that does not meet the rated voltage requirements of the power supply unit.
Doing so may result in damage to both the power supply and the printer.
Before removing the DC cable connector from the PS-180, make sure the power supply
cable has been removed from the power supply unit, then grasp the arrow-marked section
of the connector and pull straight out.
DK
DC24V
FG
FG
Power supply connector
