Epson TM T88IV Technical Reference Guide

56

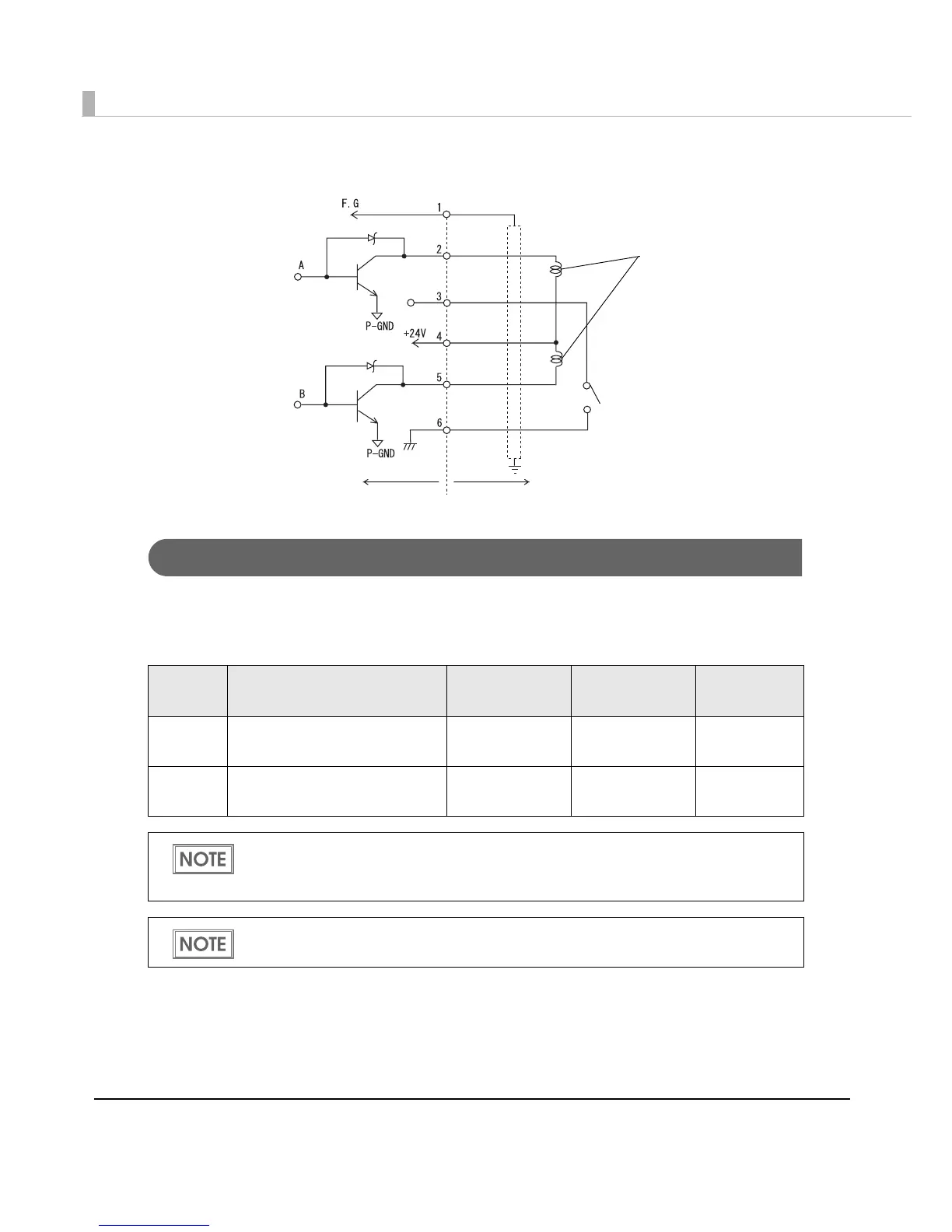

Drawer Circuitry
Setting the Buzzer
Models with the buzzer function can beep the buzzer when the drawer is opened.
The buzzer setting is performed by setting the DIP switches for the buzzer and specifying
connector pin numbers to which a command outputs a pulse signal.
DIP
switch
Specified connector pin ON OFF Initial setting
1 Drawer kick out connector pin 2 Buzzer beeps.
Buzzer does not
beep.
ON
2 Drawer kick out connector pin 5 Buzzer beeps.
Buzzer does not
beep.
OFF
Since the buzzer drive signal and the cash drawer drive signal are common in the printer,
do not use the same connector pin numbers to output the signal for the buzzer and the
cash drawer.
For detailed information about ESC/POS commands, see the ESC/POS Application
Programing Guide.
With shielded
Drawer kick-out connector
Printer side User side [Drawer kick-out side]
Drawer open/close switch
Drawer kick-out solenoid

Epson TM T88IV Specifications

General

Dimensions (WxDxH)	145 x 195 x 148 mm
Standard interfaces	Ethernet
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Type	POS printer
Character size	1.1 x 2.1 mm
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Safety	UL/CSA, TUV
Certification	CE, EN55022, EN55024, RoHS, WEEE
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, PDF417, UPC-A, UPC-E
Country of origin	China
Autocutter durability	1.5 million cuts
Mean time between failures (MTBF)	360000 h
Product color	White
Maximum roll diameter	83 mm
Supported paper width	72 mm
Operating temperature (T-T)	5 - 45 °C
Wi-Fi	No
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Power supply type	DC
Pallet width	800 mm
Pallet height	1837 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Pallet height (UK)	2250 mm
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Master (outer) case width	400 mm
Quantity per pallet layer	16 pc(s)
Master (outer) case height	255 mm
Master (outer) case length	490 mm
Quantity per pallet layer (UK)	24 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2780 g
Quantity per pack	1 pc(s)
