Epson TM T88IV Technical Reference Guide

Chapter 2 Setup
45
2

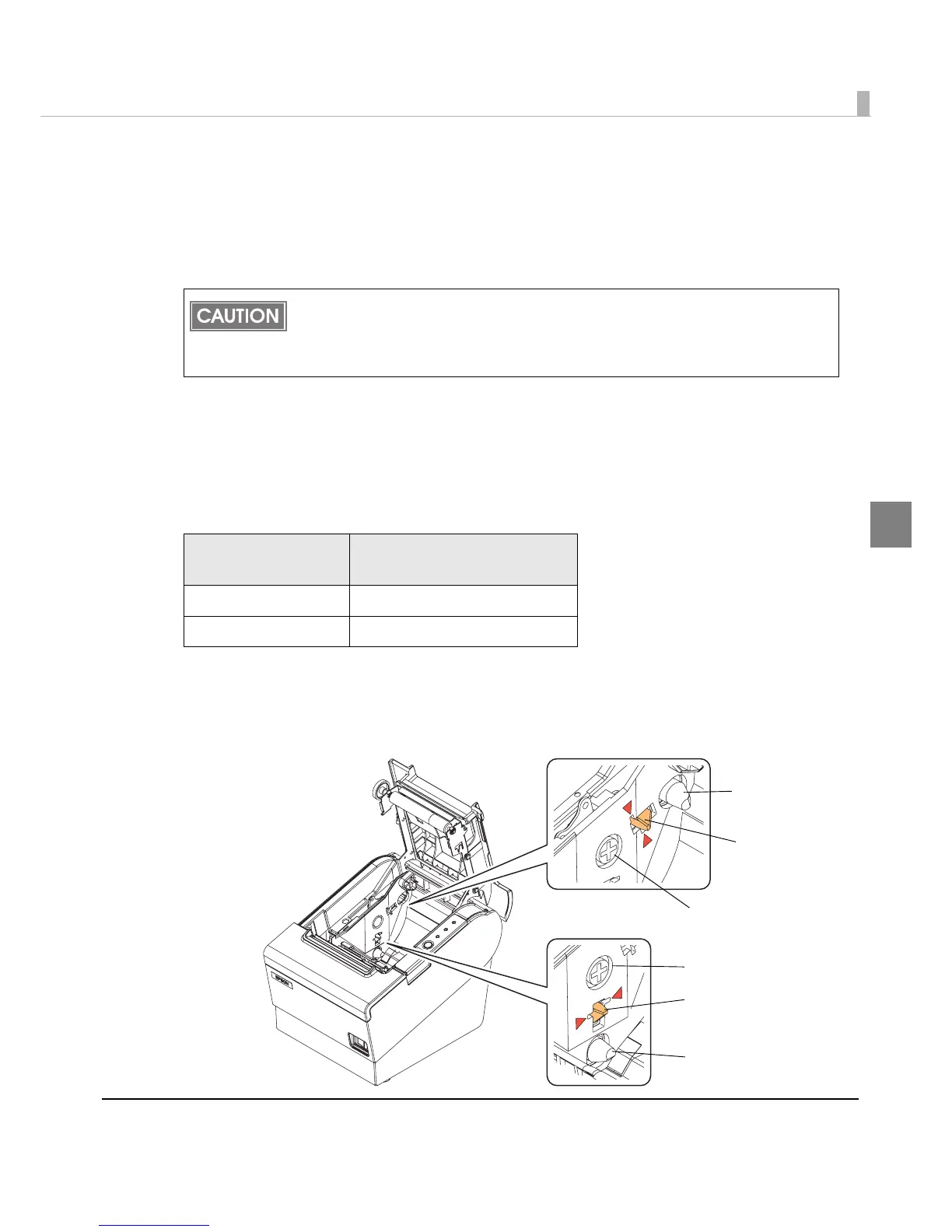

Adjusting the Paper Roll Near-End Sensor
Below are two situations where a roll paper NE sensor adjustment is required.
•To adjust the detection position to suit the diameter of the roll paper core used.
•To adjust the detection position of remaining amount of paper.
Follow the steps below to adjust the roll paper near-end detector.
1
Open the roll paper cover, and remove the roll paper.
2
Loosen the adjustment screw fastening the sensor, and align the upper
edge of the positioning plate with the adjustment position.
3
Tighten the adjustment screw.
4
After adjustment, make sure that the detection lever operates smoothly.
• Since roll paper cores vary slightly in shape, depending on paper roll design and
manufacturing tolerances, it is impossible to detect the remaining paper exactly.
• Use roll paper with a core inner diameter of 12 mm {0.47"} and outer diameter of 18 mm
{0.71"} so that the NE sensor can detect the remaining paper as accurately as possible.
Adjustment position
Remaining amount of paper
(outer diameter: mm)
Upper Approx. 27 {1.06"}
Lower (Initial setting) Approx. 23 {0.97"}
Detection lever
Positioning
plate
Adjustment screw
Adjustment screw
Positioning
plate
Detection lever
For wall-hanging
For horizontal installation

Epson TM T88IV Specifications

General

Dimensions (WxDxH)	145 x 195 x 148 mm
Standard interfaces	Ethernet
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Type	POS printer
Character size	1.1 x 2.1 mm
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Safety	UL/CSA, TUV
Certification	CE, EN55022, EN55024, RoHS, WEEE
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, PDF417, UPC-A, UPC-E
Country of origin	China
Autocutter durability	1.5 million cuts
Mean time between failures (MTBF)	360000 h
Product color	White
Maximum roll diameter	83 mm
Supported paper width	72 mm
Operating temperature (T-T)	5 - 45 °C
Wi-Fi	No
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Power supply type	DC
Pallet width	800 mm
Pallet height	1837 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Pallet height (UK)	2250 mm
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Master (outer) case width	400 mm
Quantity per pallet layer	16 pc(s)
Master (outer) case height	255 mm
Master (outer) case length	490 mm
Quantity per pallet layer (UK)	24 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2780 g
Quantity per pack	1 pc(s)
