Epson TM T88IV

48
For Parallel Interface

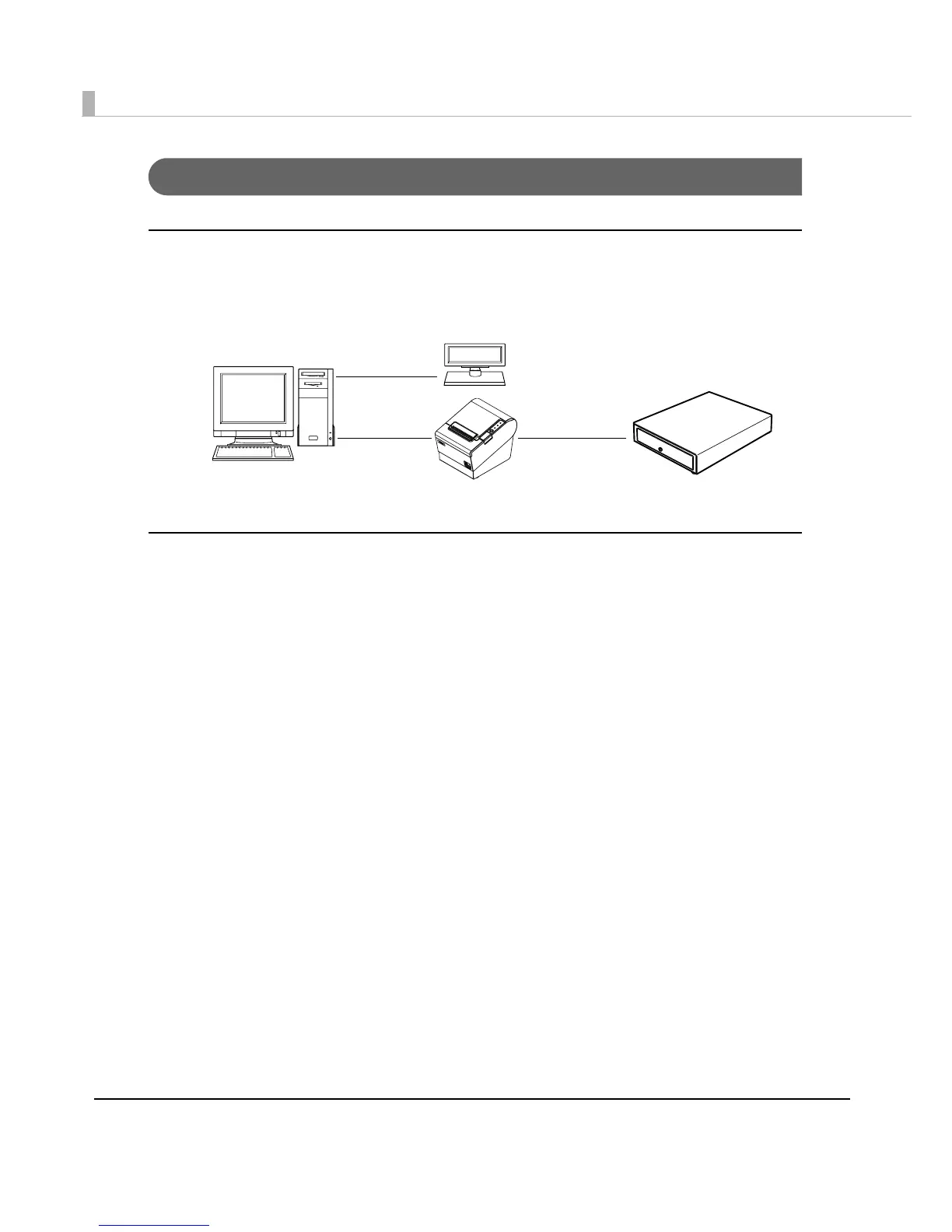

Parallel interface connection diagram
This printer is connected to the host computer via the parallel port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port.
Connecting the parallel interface cable
1
Insert the interface cable connector firmly into the interface connector
on the connector panel.
2
Press down the clips on either side of the connector to lock it in place.
3
When using interface cables equipped with a ground line, attach the
ground line to the screw hole marked “FG” on the printer.
4
Connect the other end of the interface cable to the host computer.
TM-T88IV
DM-D
Serial cable
Cash drawer
Parallel cable Modular cable
