Epson TM-U590 Technical Reference Guide

14
RELEASE LED (green)
•Lights when the slip paper can be inserted.
•Flashes during waiting for continuous self-test printing.
SLIP LED (green)
•Lights during regular operation.
•Flashes during waiting for slip insertion/removal.
•Goes out when ejecting a slip paper.
Connectors

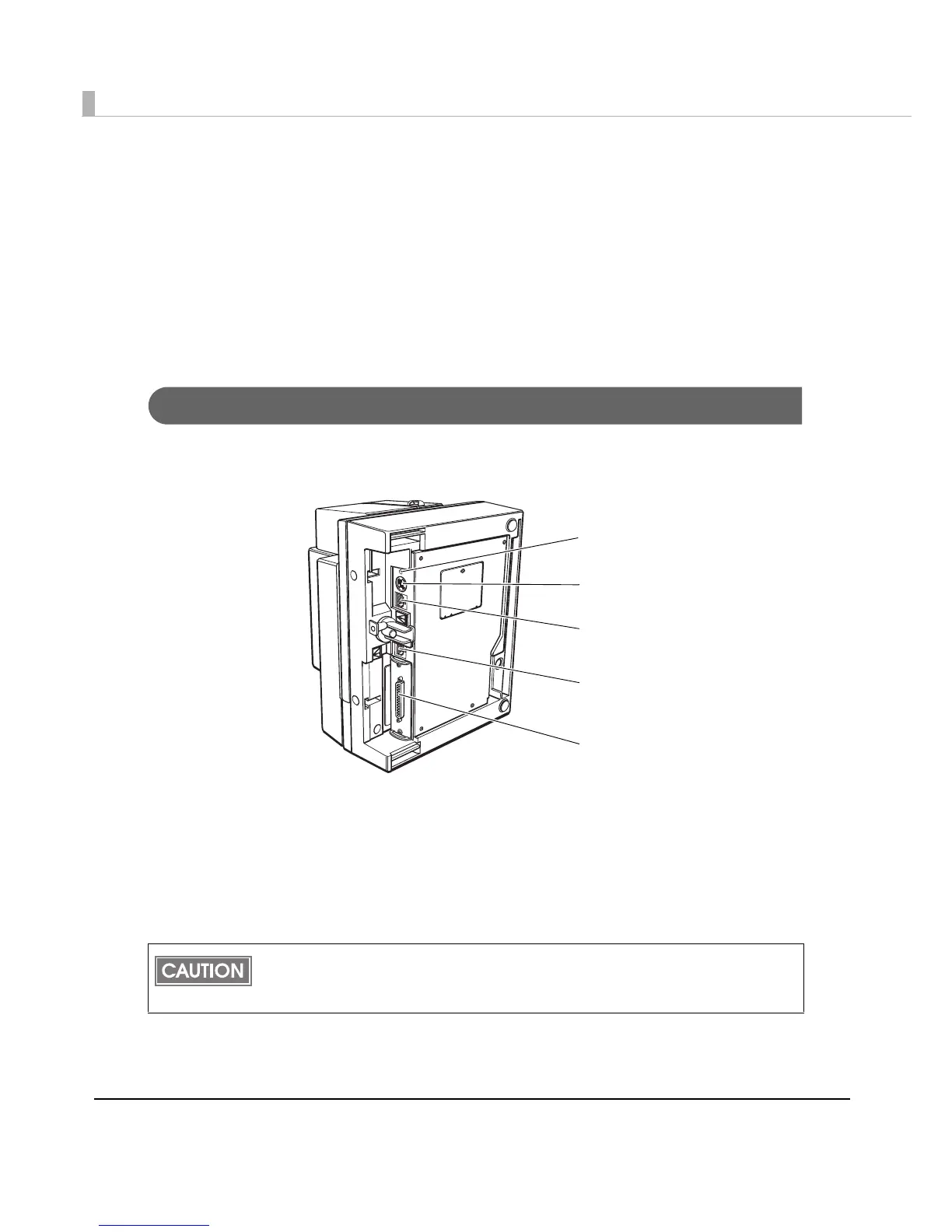

All cables are connected to the connector panel on the lower rear of the printer.
•Grounding connector: Connects the ground wire.
•Power supply connector: Connects the power supply unit.
• Drawer kick-out connector: Connects the cash drawer.
•Customer display connector: Connects the customer display.
•Int
erface connector: Connects the printer with the host computer interface.
The picture above shows a serial interface model. For details on the parallel interface and
how to connect the power supply connector and cash drawer, see "Connecting the Printer
to the Host Computer" on page 31 and "Connecting the Cash Drawer" on page 35.
Interface connector
Drawer kick-out connector
Power supply connector
Customer display connector
Grounding connector

Epson TM-U590 Specifications

General

Color	No
Maximum number of copies	4 copies
Maximum print size	A4 (210 x 297 mm)
Media thickness	0.09 - 0.36 mm
Dimensions (WxDxH)	252 x 266 x 185 mm
Power requirements	24 DVC± 10%
Connectivity technology	Wired
Safety	UL / C-UL / TUV
Certification	VCC # 1, FCC class A, CE
Country of origin	China
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2600 mm
Quantity per pallet	6 pc(s)
Quantity per pallet (UK)	56 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	8 pc(s)
Package depth	333 mm
Package width	322 mm
Package height	253 mm
Package weight	5725 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	266 mm
Width	252 mm
Height	185 mm
