Epson TM-U590 Technical Reference Guide

Chapter 2 Setup
33
2
For Parallel Interface

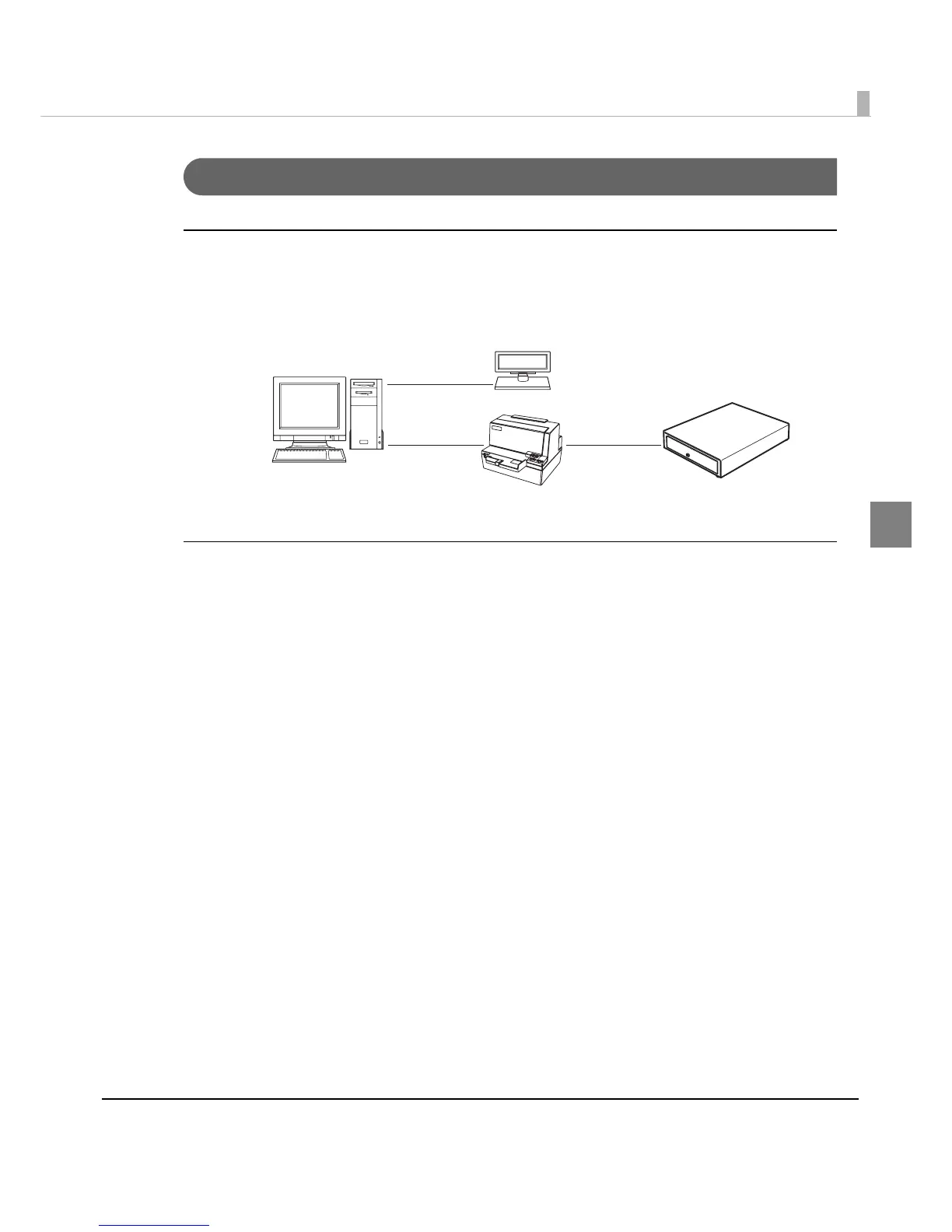

Parallel interface connection diagram
This printer is connected to the host computer via the parallel port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port.
Connecting the parallel interface cable
1
Insert the interface cable connector firmly into the interface connector
on the connector panel.
2
Press down the clips on either side of the connector to lock it in place.
3
When using interface cables equipped with a ground line, attach the
ground line to the screw hole marked “FG” on the printer.
4
Connect the other end of the interface cable to the host computer.
P
O
W
E
R
E
R
R
O
R
R
E
L
E
A
S
E
S
L
I
P
F
O
R
W
A
R
D
F
O
R
W
A
RD
R
E
V
E
R
S
E
RE
V
E
R
S
E
RE
LE
A
SE
R
ELEA
SE
EPSON
TM-U590
DM-D
Serial cable
Parallel cable
Modular
Cash drawer

Epson TM-U590 Specifications

General

Color	No
Maximum number of copies	4 copies
Maximum print size	A4 (210 x 297 mm)
Media thickness	0.09 - 0.36 mm
Dimensions (WxDxH)	252 x 266 x 185 mm
Power requirements	24 DVC± 10%
Connectivity technology	Wired
Safety	UL / C-UL / TUV
Certification	VCC # 1, FCC class A, CE
Country of origin	China
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2600 mm
Quantity per pallet	6 pc(s)
Quantity per pallet (UK)	56 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	8 pc(s)
Package depth	333 mm
Package width	322 mm
Package height	253 mm
Package weight	5725 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	266 mm
Width	252 mm
Height	185 mm
