Chapter 2 Setup

Connecting the Cash Drawer

Use a cash drawer handled by EPSON or your dealer.

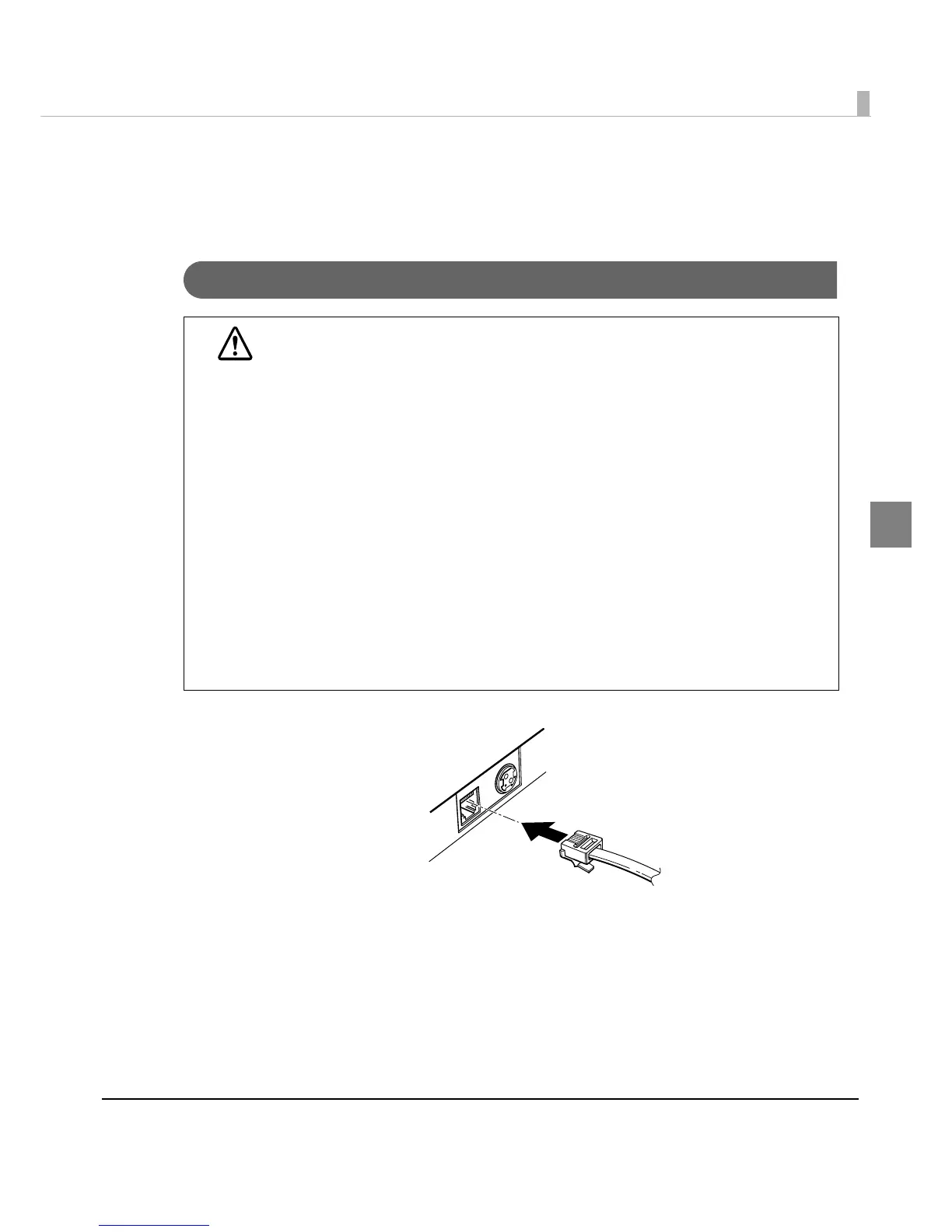

Connecting the Drawer Kick-out Cable

Connect the connector of the drawer kick-out cable to the printer.

WARNING

• Specifications of drawers differ depending on makers or models. When you use a

drawer other than specified, make sure its specification meets the following

conditions.

Otherwise, devices may be damaged.

∗ The load, such as a drawer kick-out solenoid, must be connected between pins 4 and

2 or pins 4 and 5 of the drawer kick-out connector.

∗ When the drawer open/close signal is used, a switch must be provided between

drawer kick-out connector pins 3 and 6.

∗ The resistance of the load, such as a drawer kick-out solenoid, must be 24

Ω or more

or the input current must be 1A or less.

∗ Be sure to use the 24V power output on drawer-kick out connector pin 4 for driving the

equipment.

• Use a shield cable for the drawer connector cable.

• Leave intervals longer than 4 times the drawer driving pulse when sending it

continuously.

• Be sure to use the printer power supply (connector pin 4) for the drawer power

source.

• Do not insert a telephone line into the drawer kick-out connector.

Doing so may damage the telephone line or printer.
