B-8 How to Install the Printer on a Wall with the WH-10
Rev. D

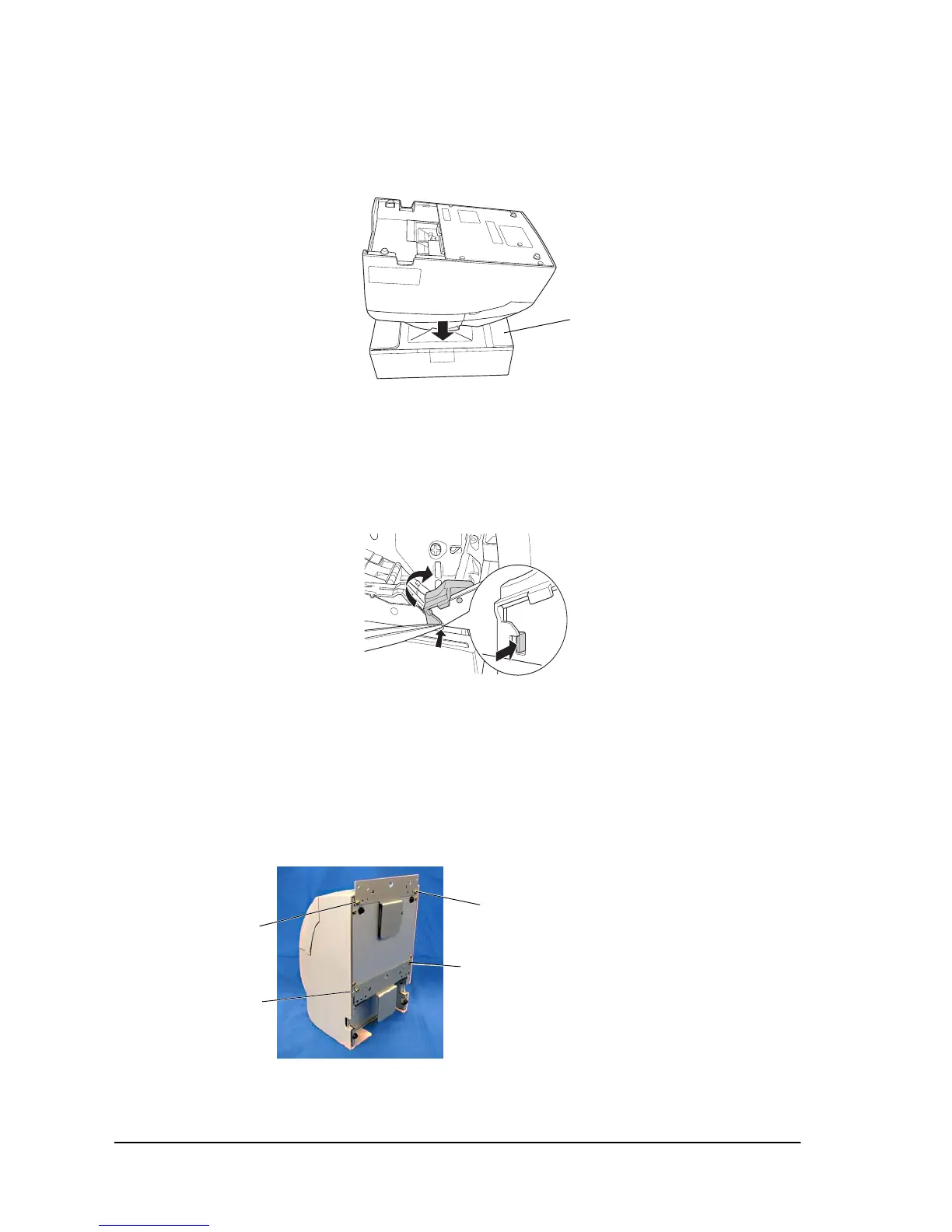

14. Turn the printer over and then put it on a packing box as a platform horizontally.
15. See the “Installing the Brackets” section for attaching the brackets.
Removing the cam
While you push the cam through the hole on the platen frame with a pointed tool such as
tweezers, rotate the cam in the upper direction to remove it.
B.1.6 Installing the brackets
Four different sets of screw holes are found on each bracket. Each hole is identified by a number;
be sure to use the holes indicated in the instructions.
Attach the upper bracket to the holes numbered “2” and the lower bracket to the holes
numbered “1”using the screws (3×6).
Fold this part inside and
insert it into holes to
assemble the package.
2
2
1
1
To Next Page
