Rev. D Setup 3-31
TM-U220 Technical Reference Guide
3.4.8.1 Serial Interface model
Before connecting any of the cables, make sure that both the printer and the host PC are turned
off.
1. Plug the cable connector securely into the printer’s interface connector.

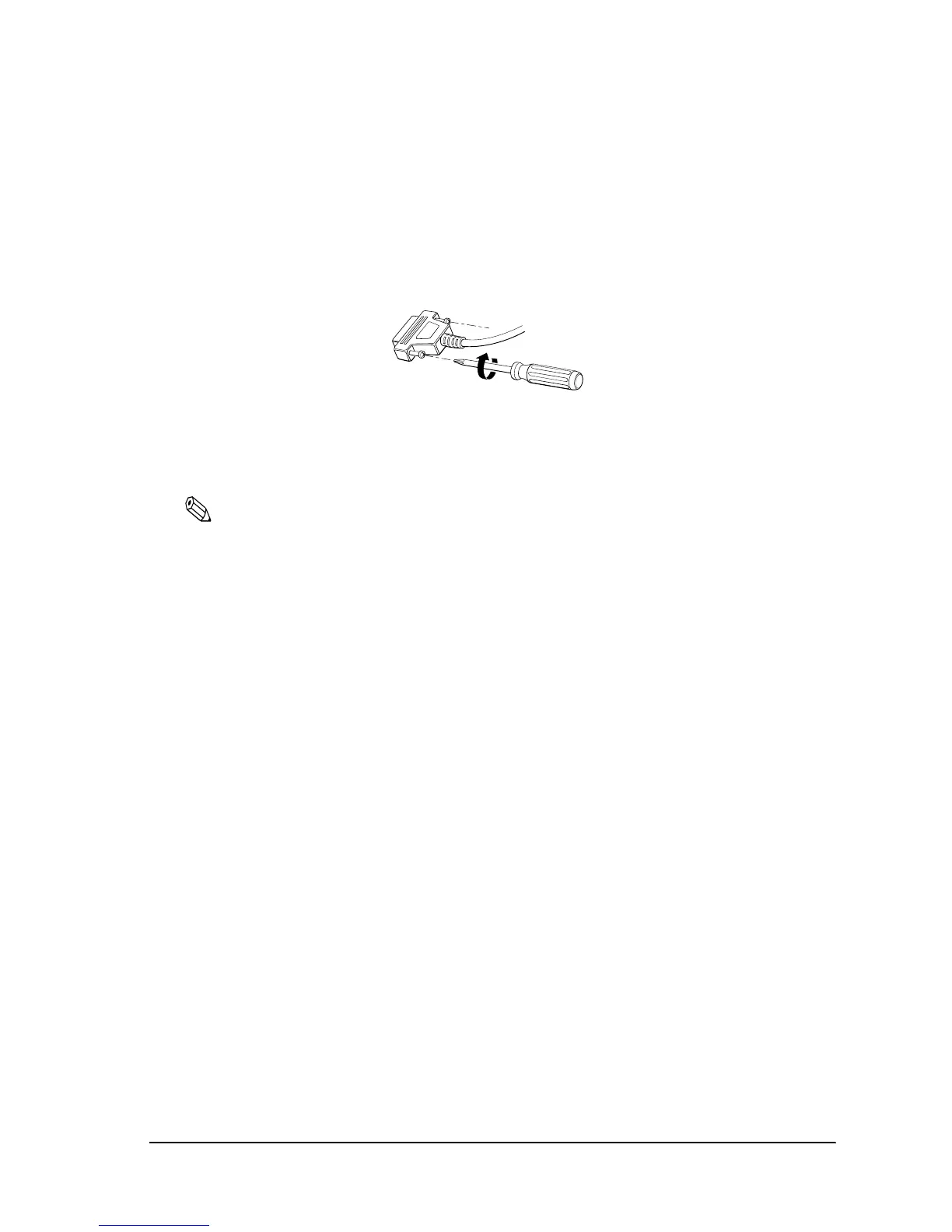

2. If the cable connector has screws on it, tighten the screws on both sides of the connector.
3. If your interface connector has a grounding wire, attach it to the printer using the screw
labeled FG, which is next to the interface connector.
4. Attach the other end of the cable to the host PC.
Note:
When using serial interface, you need to adjust serial communication using the DIP switches. See
“Adjusting the DIP Switches” (page 3-15) for details.
When using serial interface, see “Serial Connection” in Chapter 2 also.
3.4.8.2 Parallel Interface Models
1. Press the connector on the end of the interface cable firmly into the interface connector on
the connector panel.
2. Press down the clips on either side of the connector to lock it in place.
3. For interface cables equipped with a ground line, attach the ground line to the screw hole
marked "FG" on the printer.
4. Connect the other end of the interface cable to the host computer.
3.4.8.3 USB Interface Models
1. Attach the locking wire saddle at the location shown in the figure below.
2. Hook the USB cable through the locking wire saddle, as shown in the figure below.
To Next Page
