3-2 Setup Rev. D

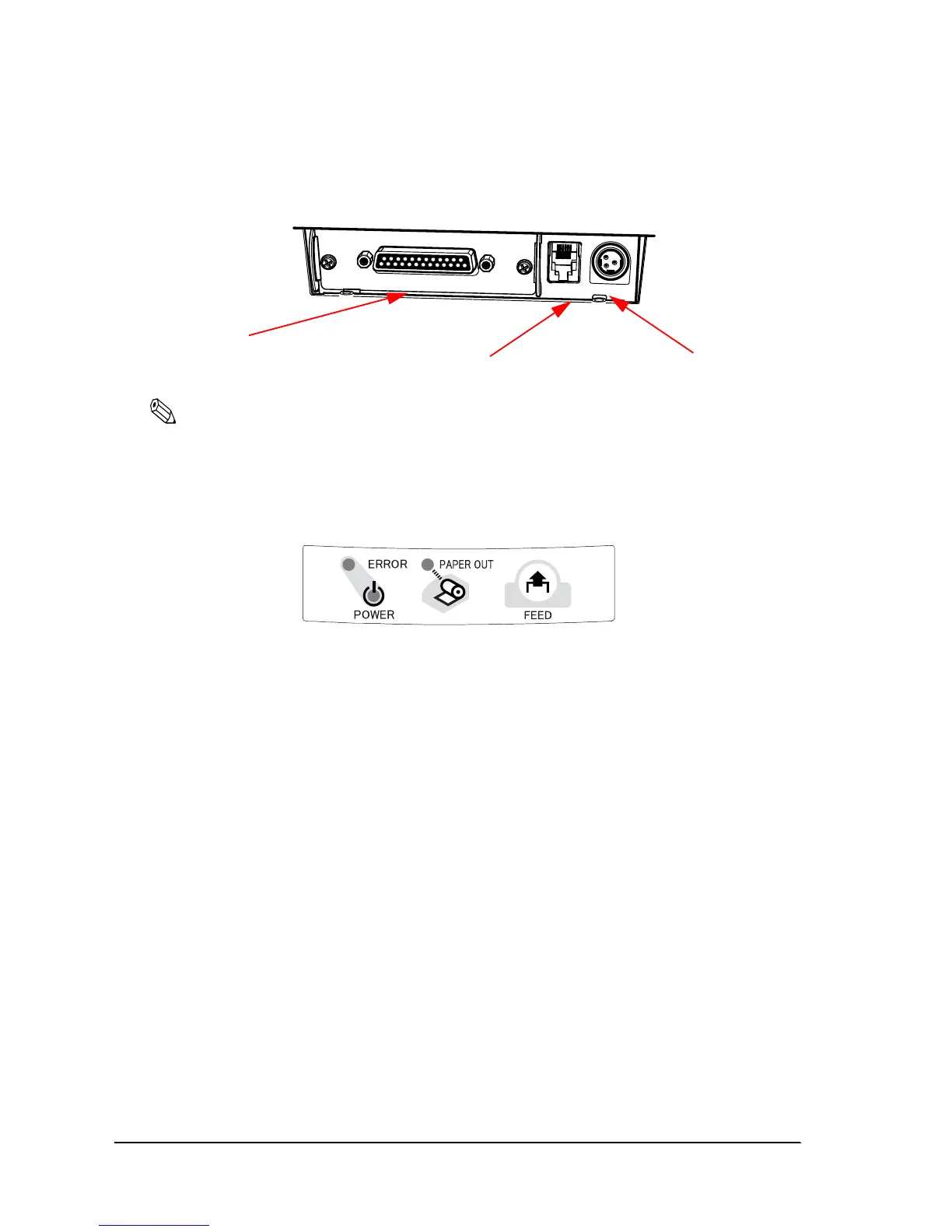

You can connect up to four cables to the printer. They all connect to the connector panel (on the
bottom rear of the printer), which is shown below.
Note:
This illustration shows the serial interface model. The other interface connector looks slightly different.
3.1.2 The Control Panel
The control panel is shown below.
❏ POWER LED
❏ ERROR LED
❏ PAPER OUT LED
❏ FEED button
3.1.2.1 LED
POWER
ERROR
When this light is on but not blinking, it means that the printer is offline. Check to see if a cover
is open. When this light is blinking, there is an error. See “LED Blinking Pattern” in Chapter 4.
On: Power supply is stable.
Off: Power supply is not stable.
To Next Page
