Epson U220B - TM Two-color Dot-matrix Printer Technical Reference Guide

3-26 Setup Rev. D

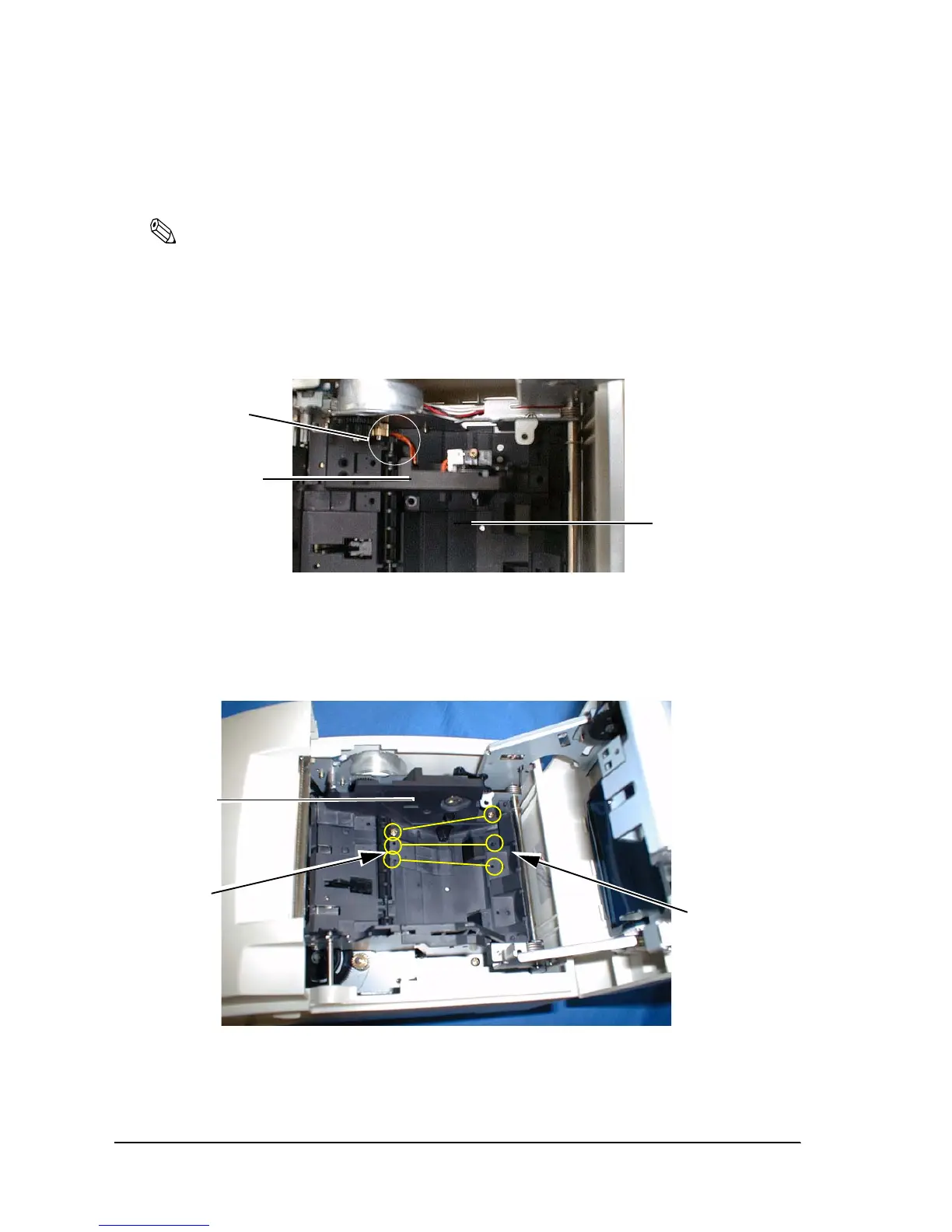

3.4.5 Adjusting Roll paper width
The TM-U220 accommodates 76 mm {3"},69.5 mm {2.74"}, 57.5 mm {2.26"} wide paper rolls.
Note:
When you use a near-end detector equipped model, be sure not to pinch the lead wires of the near-end
detector between the roll paper guide and the roll paper holder, and to push the lead wires inside so that the
lead wire of the paper-end detector does not contact the motor gear.
When replacing the wires, be sure that the wires do not catch between the roll paper guide and the roll
paper holder.
1. Make sure the power supply is disconnected.
2. Open the roll paper cover.
3. Take off the roll paper guide from the printer by loosening the two screws.
4. Push the roll paper guide on the appropriate width (See figure above.)
leading the wires
between the holder
and frame
Roll paper guide
Roll paper holder
B
C
A
Roll paper
guide
position of fixing
the screws (left
side)
position of fixing the
screws (right side)
A: paper width76 mm
B: paper width69.5mm
C:paper width57.5m
m

Epson U220B - TM Two-color Dot-matrix Printer Specifications

General

Print Method	9-pin, serial impact dot matrix
MTBF	180, 000 hours
Weight	Approx. 2.5 kg
Data Buffer	4 KB or 40 bytes
Paper Handling	Friction feed
Character Set	95 Alphanumeric, 128 x 12 Graphic
Paper Dimensions	58, 70, 76 mm
Interface	USB, Serial (RS-232C), Parallel (IEEE-1284)
Reliability	18 million lines
Dimensions	160 (W) x 248 (D) x 139 (H) mm
Inked Ribbon	ERC-38
Color Support	Two-color printing (Black and Red)
Print Speed	4.7 LPS (lines per second) at 40 columns, 6.0 LPS at 30 columns
Character Size	1.2 × 3.1 mm (W × H) / 1.6 × 3.1 mm (W × H)
