VT6L Maintenance 15. AMP Board
VT series Maintenance Manual Rev.2 125

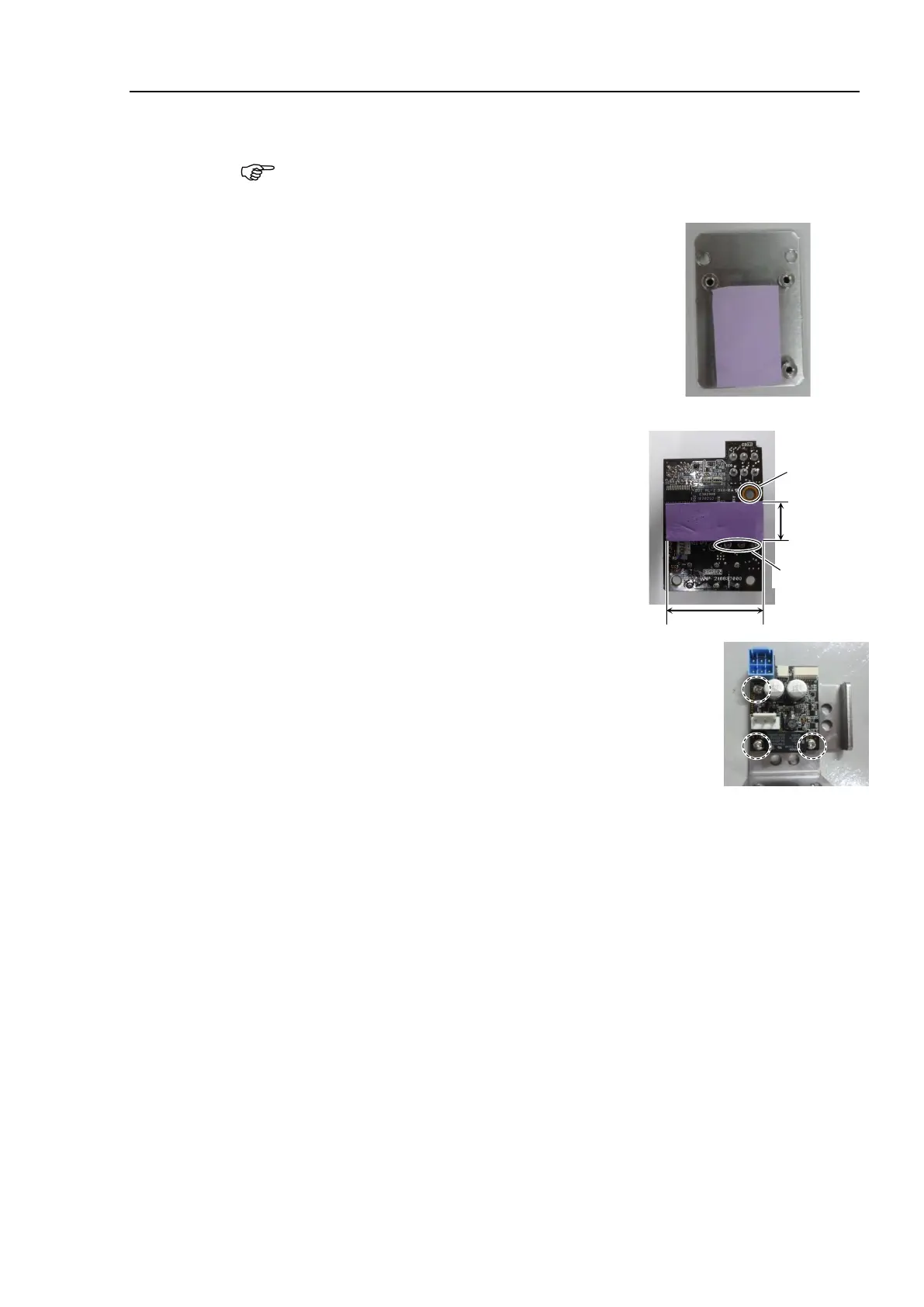

If the thermal conductive sheet is
removed in the Removal step (3), attach the sheet.
The size of the thermal conductive sheet varies depending on the shipping time.
According to the size of the thermal conductive sheet, follow the procedures below
to attach the sheet.
thermal conductive sheet is
×24mm:
Attach the thermal conductive sheet on the plate.
Attach the sheet in the direction that the longer
sides of the thermal conductive sheet and the plate
are parallel. As shown in the picture, the attachment
position is
inside the range surrounded by three
spacers of the AMP board fixing part.
The size of the thermal conductive sheet is
35mm
×14mm:
Attach the thermal conductive sheet on the AMP
board.
For the attachment position of the t
hermal
conductive sheet, refer to the picture on the right.
Be careful not to cover projections and hole.
Mount the AMP board on the plate.
Cross-recessed screws with a washer: 3-M3×6
Tightening torque: 0.45 ± 0.1 N·m
Mount the plate (with AMP board) on the Arm #3.
Reference: 12.1 Joint #4 Motor Installation
