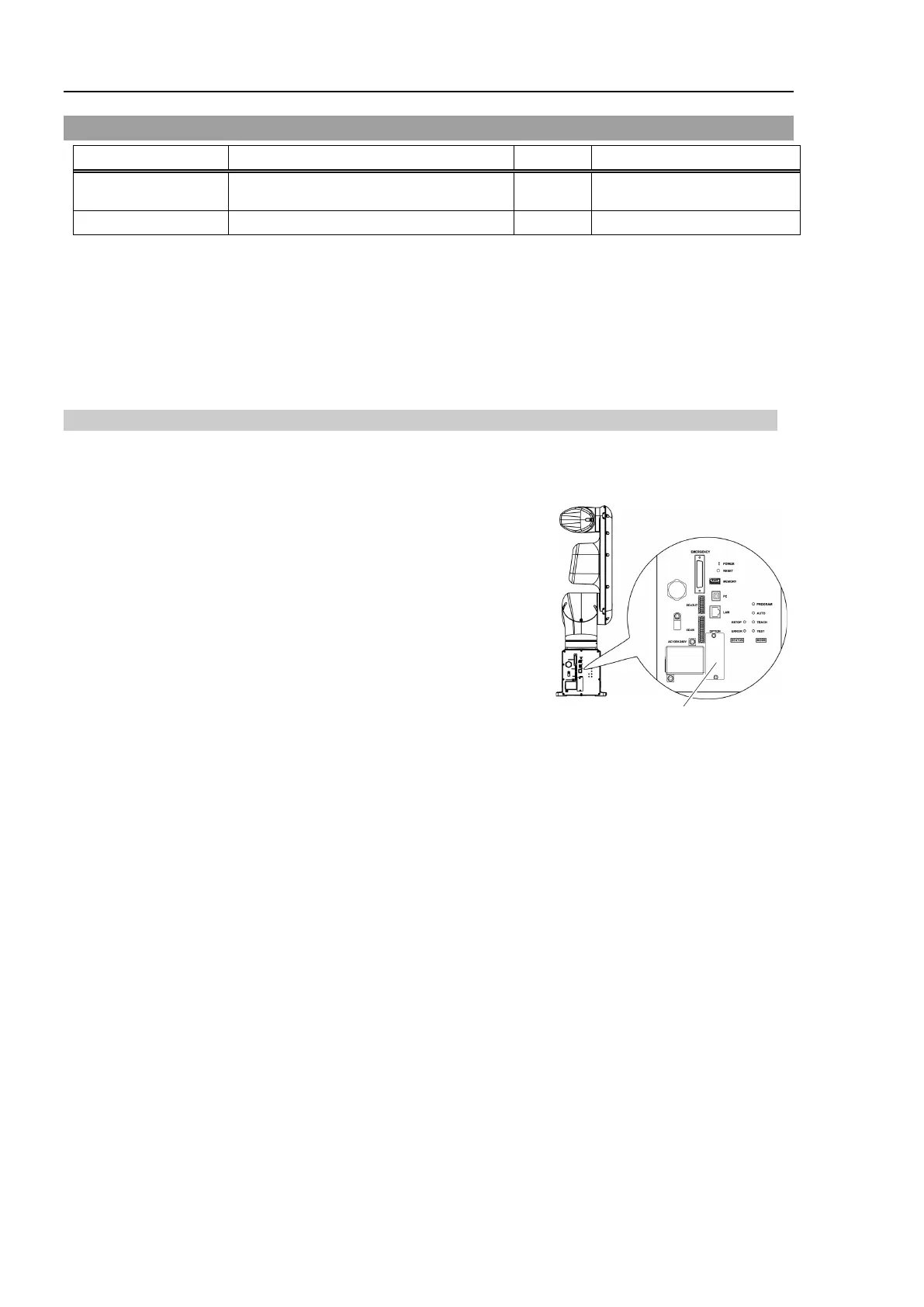

18.6 Replacing SD Card
Name
Quantity
Note
Maintenance
parts
SD Card 1 2182748
Tools
Cross-point screwdriver (No. 2)
1
Remove the SD card after removing the fieldbus I/O module if fieldbus I/O module is
inserted to the optional slot. Also, install fieldbus I/O module after installing the SD
card.
For more details about fieldbus I/O module, refer to the following.
Reference: 18.7 Installing Fieldbus I/O.
18.6.1 Standard, Cleanroom Model
SD
Card
R
emoval
Standard,
Cleanroom
(1)
Turn OFF the Manipulator
.
(2)
Remove the power plug.
(3)
Remove
the optional slot cover.
Pan head screws: 2-M3×6 Sems
Optional slot cover
(4)
Push the SD card which is inserted near the
option
al slot to eject.
SD
Card
Installation
Standard,
Cleanroom
(1)
Push the SD card and inset to the SD card slot near the option
al slot.
(2)
M
ount the optional slot cover.
Pan head screws: 2-M3×6 Sems
Tightening torque: 0.45 ± 0.1 N·m

NOTE
