Epson VT Series - Standard, Cleanroom Model

VT6L Maintenance 18. Controller Unit
VT series Maintenance Manual Rev.2 135

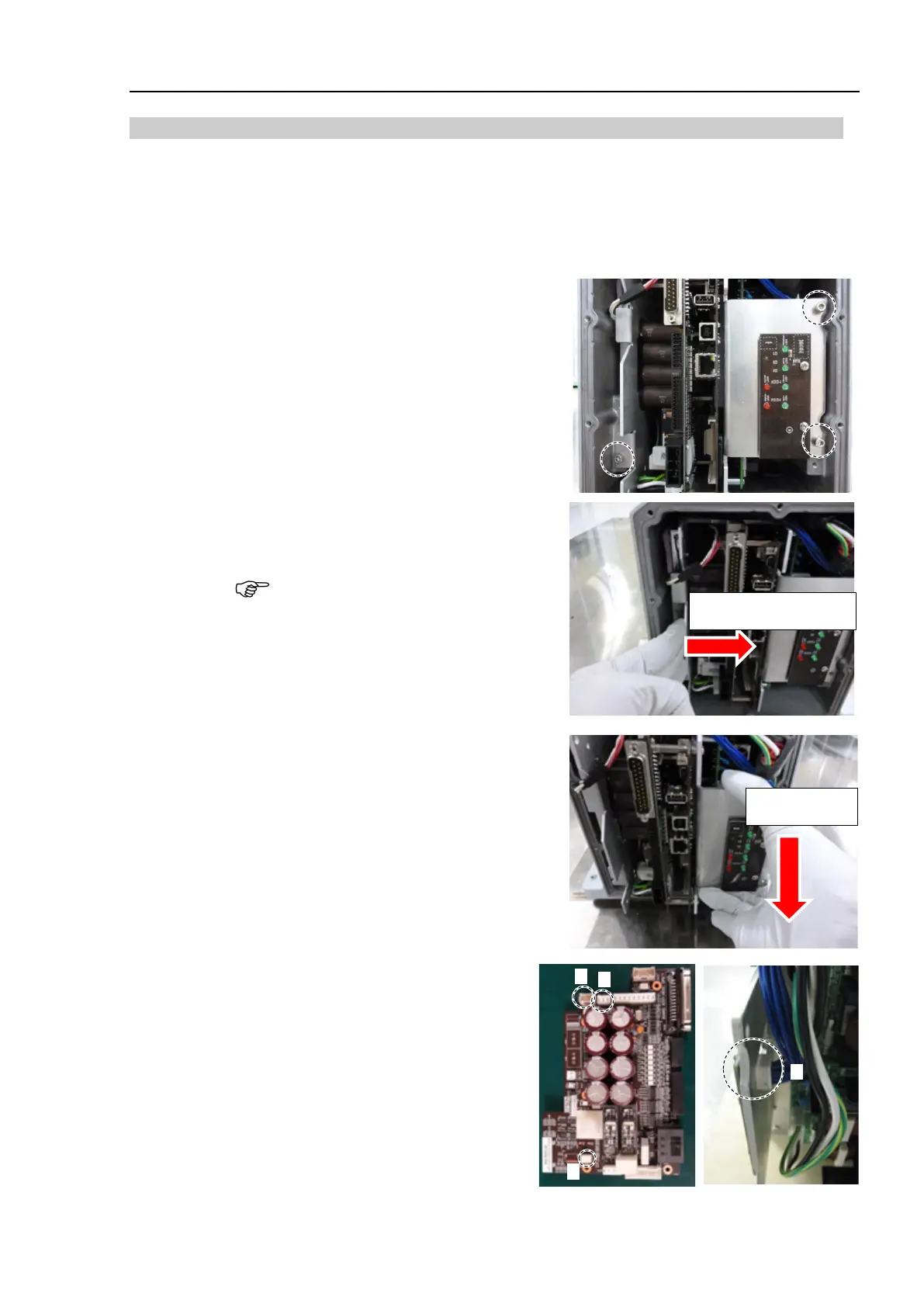

18.1.1 Standard, Cleanroom Model
Controller Unit
Removal
(1)
Turn O
FF the Manipulator.
(2)
Remove
the connector plate.
Reference: Maintenance 7.7 Connector Plate
S
tandard
C
leanroom
(3)
Disconnect
the TP connector which is connected (inside) the connector plate.
(4)
Unscrew
the
mounting screws of the
Controller Unit.
Hexagon socket head cap bolts:
3-M4×10 (with a plain washer)
(
5)
Pull out the
Controller Unit from the
Manipulator base.
When pulling it out,
firstly push the plate of
the Controller
Unit
to the right (see the picture) gently,
then remove the thermal conductive
sheet
on the base and the Controller
Unit
.
Next, pull
the Controller Unit forward.
Gently push to the right
Pull it forward
(
6)
Disconnect
the following
connectors of the
Controller Unit.
A: Power cable connector
B: Signal cable connector
C: LED connectors × 2
C
A
B
C

NOTE
