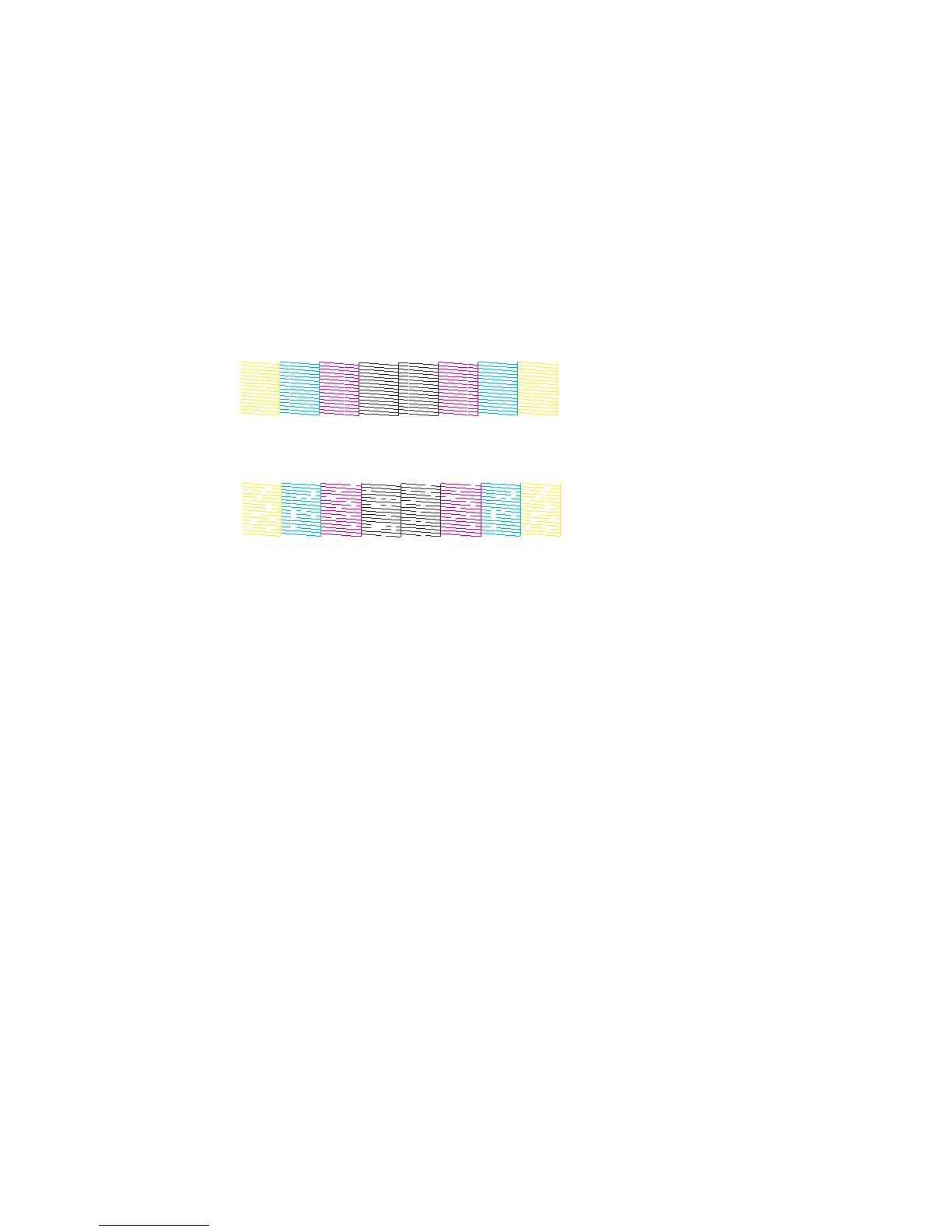

5. Check the printed pattern to see if there are gaps in the lines.
Print head is clean
Print head needs cleaning
6. If there are no gaps, click Finish.
If there are gaps or the pattern is faint, clean the print head.
Parent topic: Print Head Nozzle Check
Related concepts
Print Head Cleaning
Related topics
Loading Paper
Print Head Cleaning
If print quality has declined and the nozzle check pattern indicates clogged nozzles, you can clean the
print head.
Note: You cannot clean the print head if ink is expended, and may not be able to clean it when ink is low.
You must replace the ink pack first.
Cleaning the Print Head Using the Product Control Panel
Cleaning the Print Head Using a Computer Utility
Flushing the Ink Tubes
302

Epson WF-R5690 Specifications

General

Max Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scanner Type	Flatbed, ADF
Max Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Fax	Yes
Print Technology	PrecisionCore Inkjet
Paper Capacity	250 sheets
Duty Cycle	Up to 45, 000 pages per month
Paper Sizes	A4, A5, A6, Legal, Letter
Mobile Printing	Apple AirPrint, Google Cloud Print
Display	4.3" Color touchscreen
Weight	12.5 kg
Print Speed	ISO: Up to 20 ppm (black/color)
