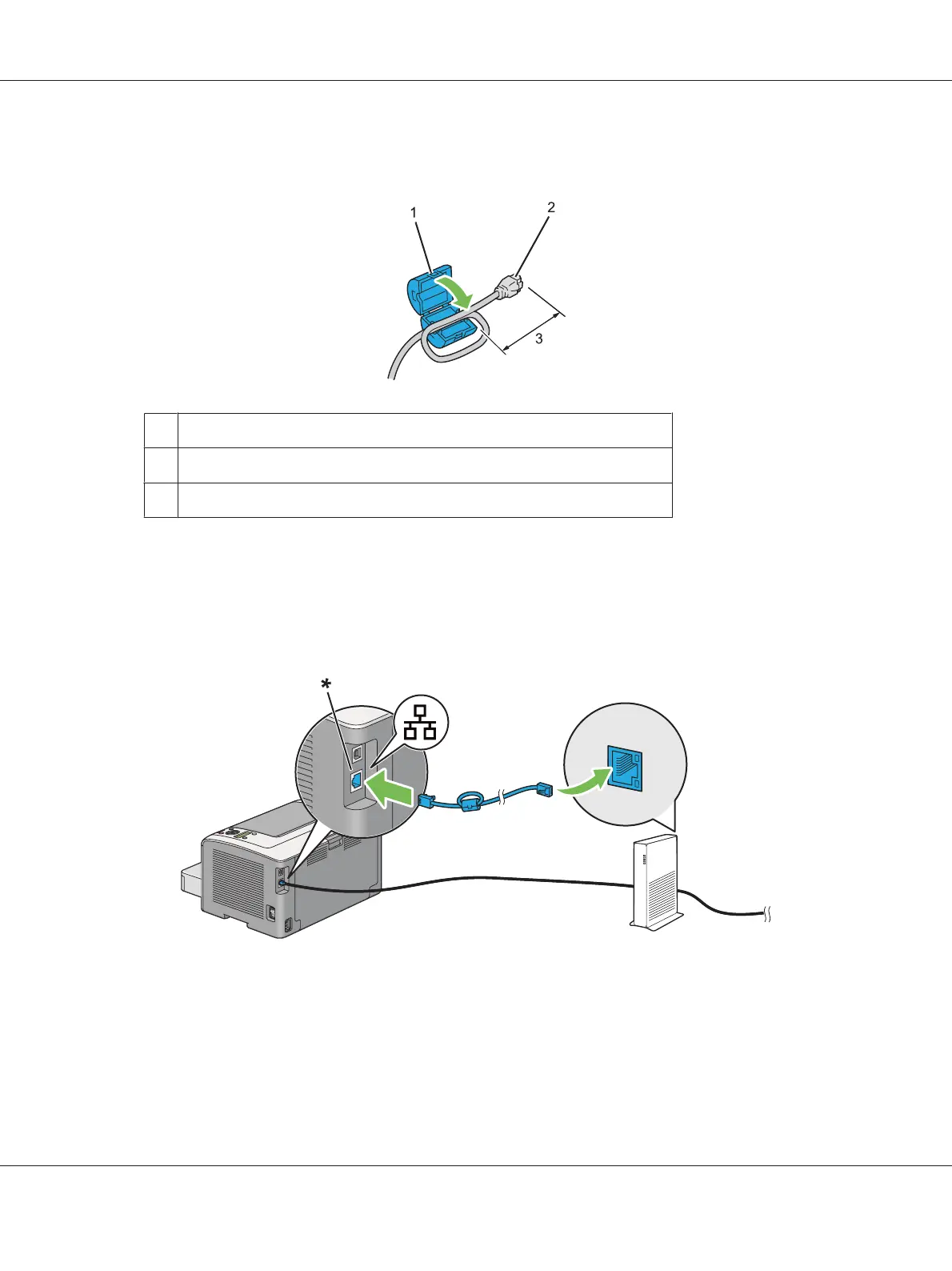

2. Twist the Ethernet cable around the ferrite core shipped with the printer as shown in the figure,
and then close the ferrite core.
1 Ferrite core
2 Connector to be plugged into the Ethernet port of the printer
3Approx. 7 cm
Important:
Do not twist the Ethernet cable too tightly as it may break the cable.
3. Connect one end of an Ethernet cable to the Ethernet port on the rear of the printer, and the other
end to a LAN drop or hub.
* Ethernet port
Note:
Do not connect the Ethernet cable when you intend to use the wireless network feature of the
AL-M200DW model.
