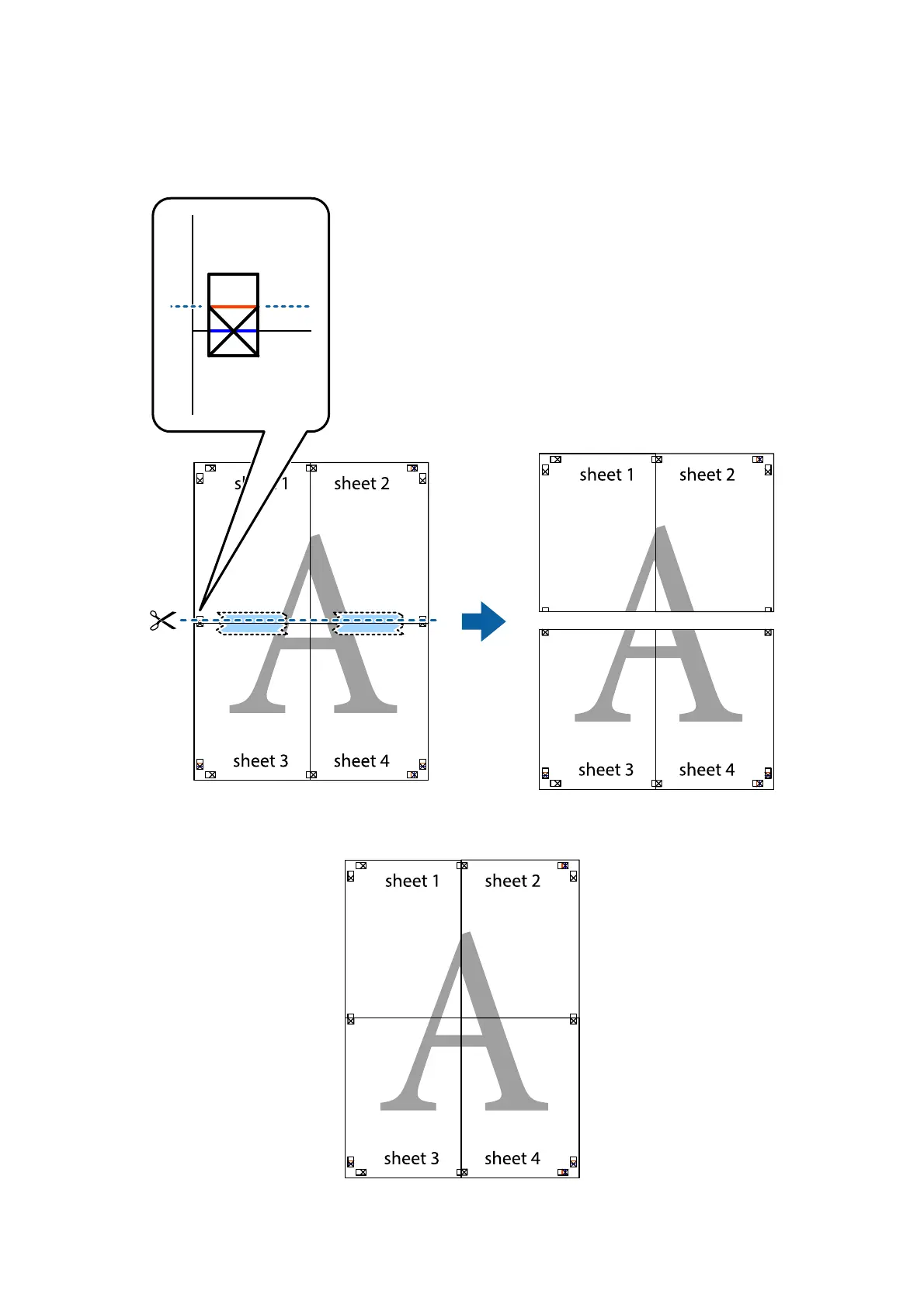

8. Cut the taped sheets in two along the horizontal red line through the alignment markers (this time, the line

above the cross marks).

9. Tape the sheets together from the back.
