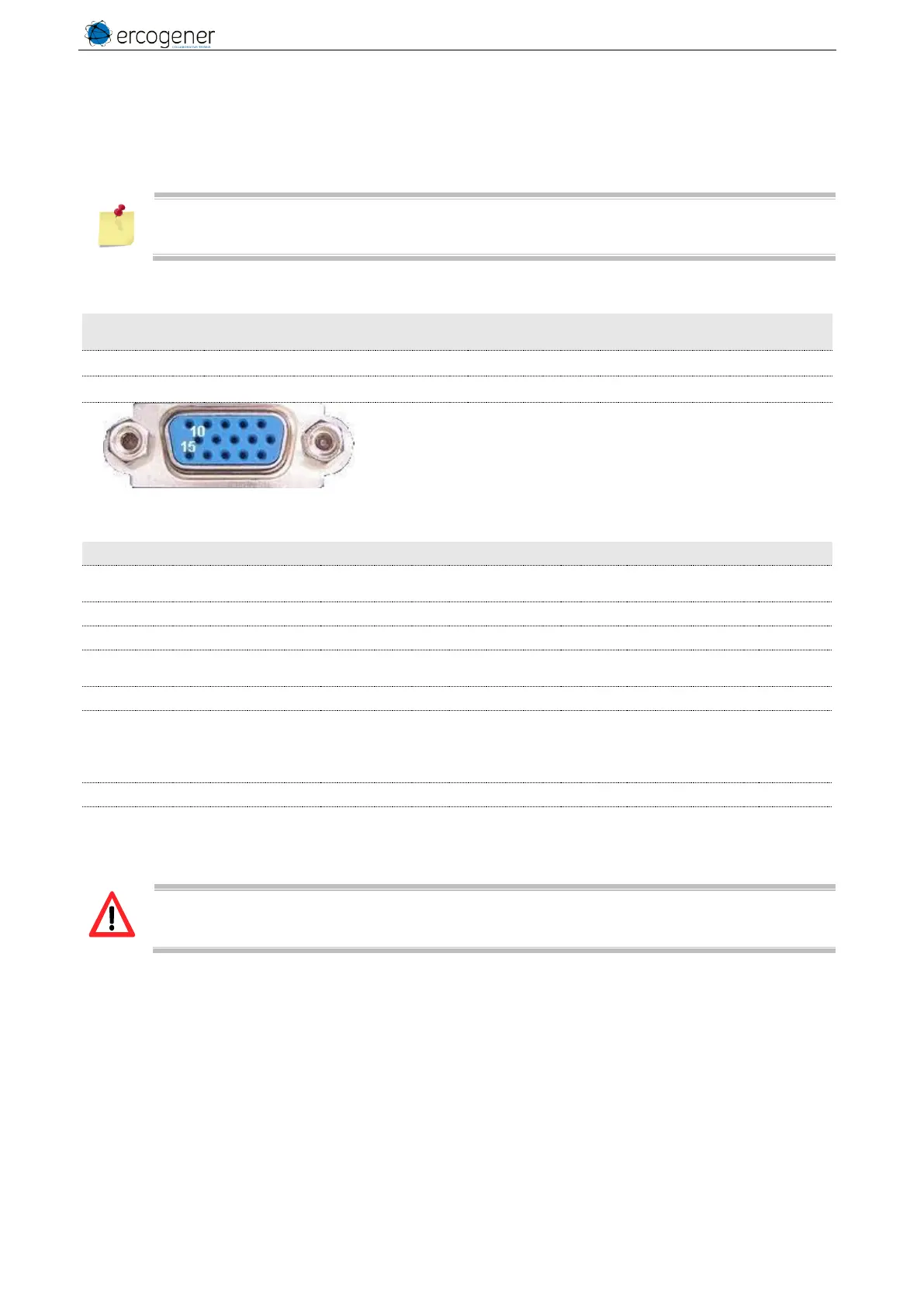

3.10.2 Loudspeaker output (Speaker)
The outputs are assembled in differential in order to reduce the noise in common mode and the TDMA noise.
These outputs can be directly connected to a loudspeaker (Earphone).
By default, the loudspeaker output is not active.
For more details, see the command AT+USPM.
If the feature is not in use the pins 10 and 15 (SPK-SPK +) should not be connected.
Table 36 : Description of loudspeaker outputs
Signal
Connector 16 pins
Pins number
I/O
Kind of I/O
Description
SPKP
10
S
Analog
Sortie positive
SPKN
15
s
Analog
Sortie négative
Table 37 : Characteristics of loudspeaker output
Speaker Output
Parameters/Conditions
Min
Typ
Max
Units
Maximum differential output
voltage
Overdrive Gain stage = +9 dB
6.4
V
PP
Common mode output voltage
1.6
V
Output load resistance
8
Ω
Single-ended output load
capacitance
10
nF
Inductive load
400
µH
Signal to noise
Load = 16 Ω,
Gain stage = +0 dB,
Input signal = 0 dBFS,
Code 0, A-weighted
70
80
dB
Signal to distortion (THD)
Load = 8 Ω, 350 mW
50
dB
Power supply rejection
1 kHz
60
dB
The integrator has the responsibility to protect the outputs from electric disturbances and to
respect the adequate values of the functioning parameters.
