Ercogener GenPro 25e - Typical Assembly; Sim Card; Figure 21: Typical Assembly - Handset; Figure 22: Typical Assembly - Analog Interface

EG_GenPro25e_1055_UG_002_UK
Page 39 / 58
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modification.
Dct_427_02
3.10.3 Typical assembly

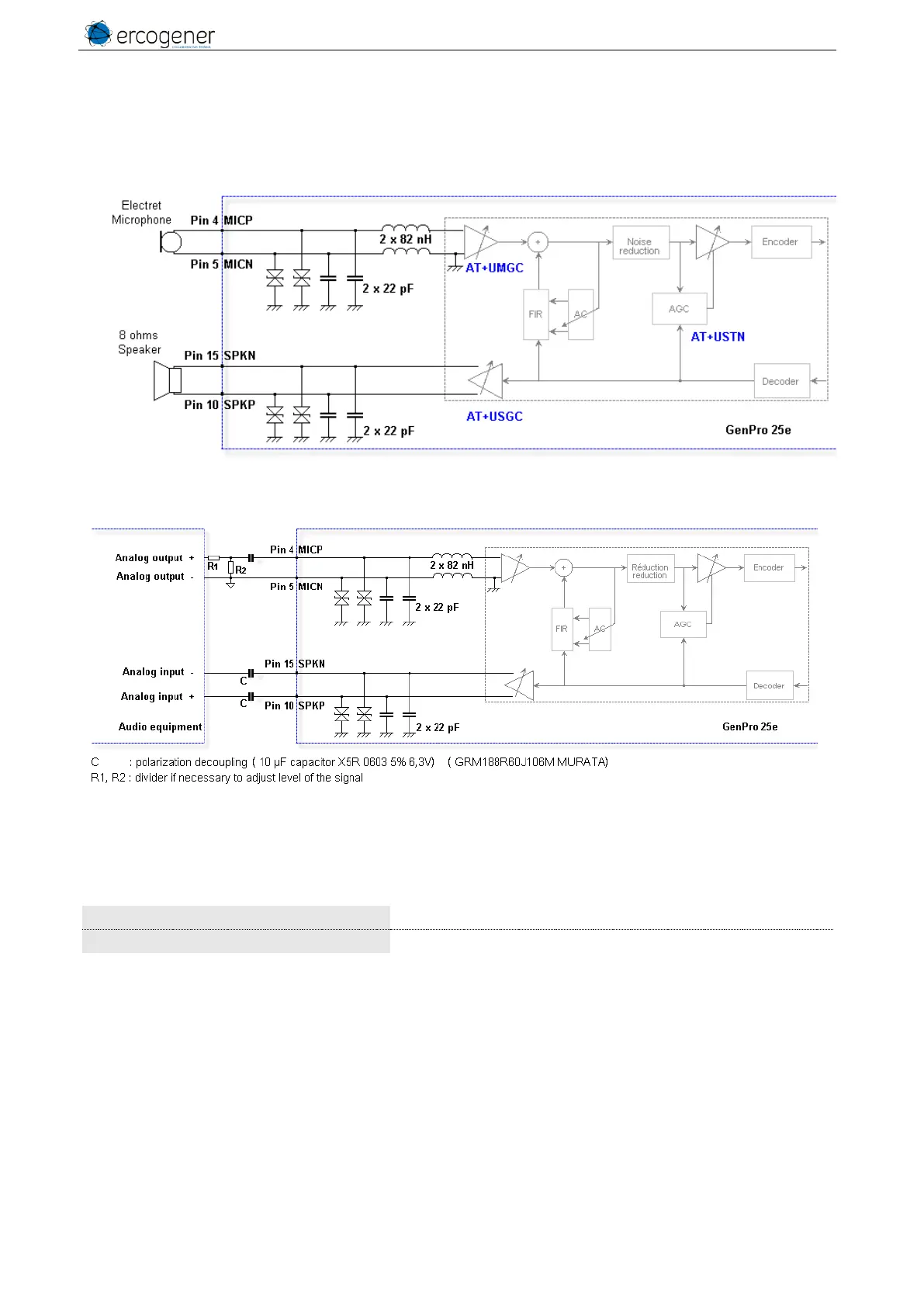

On Figure 21 : Typical assembly - Handset we find the main AT command acting on the audio chain.
Figure 21 : Typical assembly - Handset
Figure 22 : Typical assembly - Analog interface
3.11 SIM card
Table 38 : Characteristics of the SIM card power voltage
Carte SIM
3 V or 1.8 V
Format
Mini SIM Standard 2FF / Plug-in UICC (25x15x0,76 mm)
