ANNEX 1 - 4-pins Micro-FIT cable (Power supply)
(ERCOGENER reference: 4402304215)

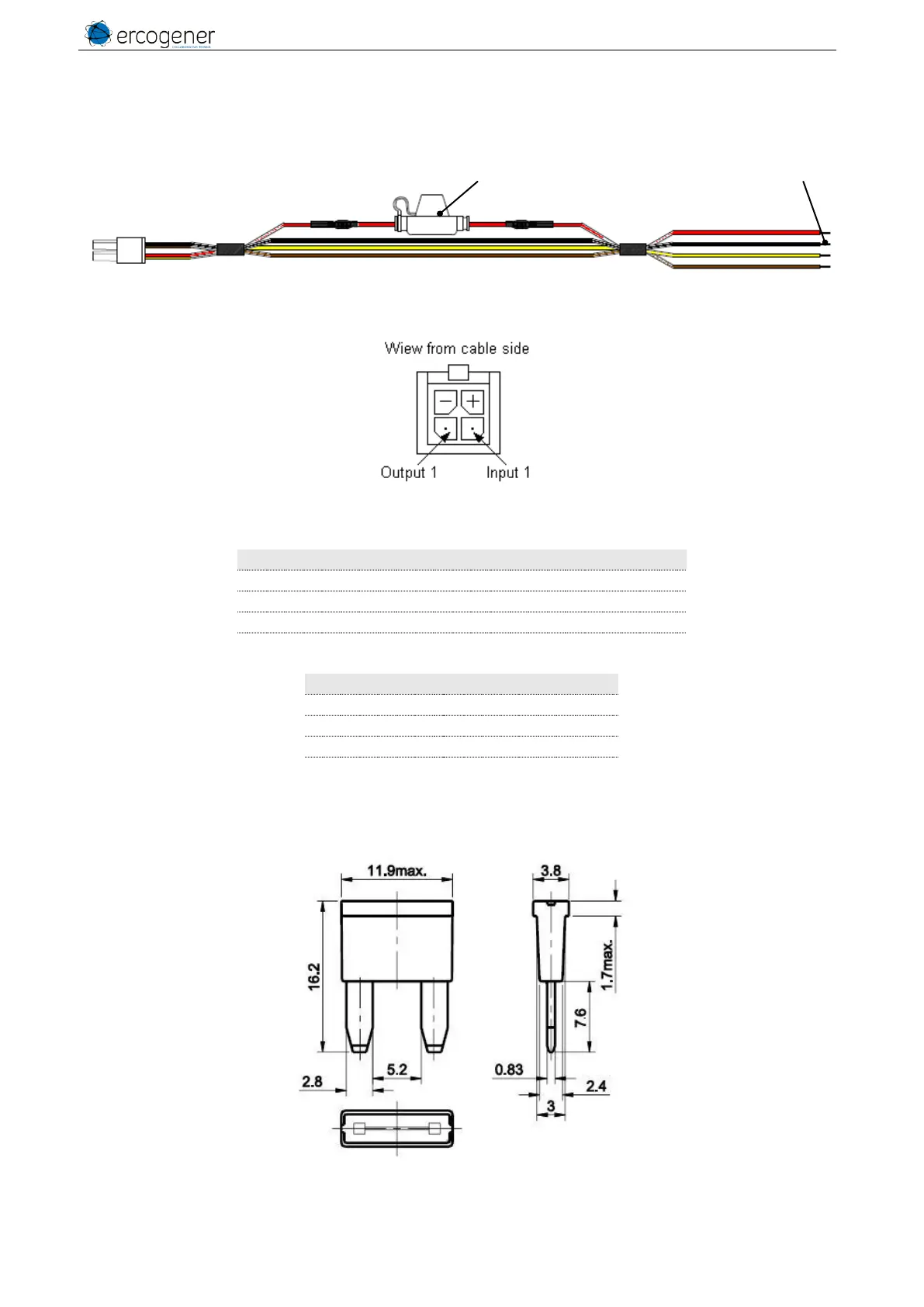

Figure 32 : 4-wires Micro-FIT cable
Table 46 : Characteristics of power supply cable
Component
Characteristics
4-pin connector
Cable
Length ≈ 1.5m
Wire
Section : 0.75 mm²
Fuse
FK2A - 32V
Signal
Color
+V
DC
Red
GND
Black
ENTREE 1 (E1)
Yellow
SORTIE 1 (S1)
Brown
Fuse reference: Mini Blade for automobile 2A - 32V (color code: grey)
Figure 33 : Fuse Mini Blade
Fuse F2A/32V
(Mini BLADE)
3mm tinned
stripped wire)
