ANNEX - 2-wire Micro FIT cable connector (Input/Output)
(ERCOGENER reference: 4402000108)

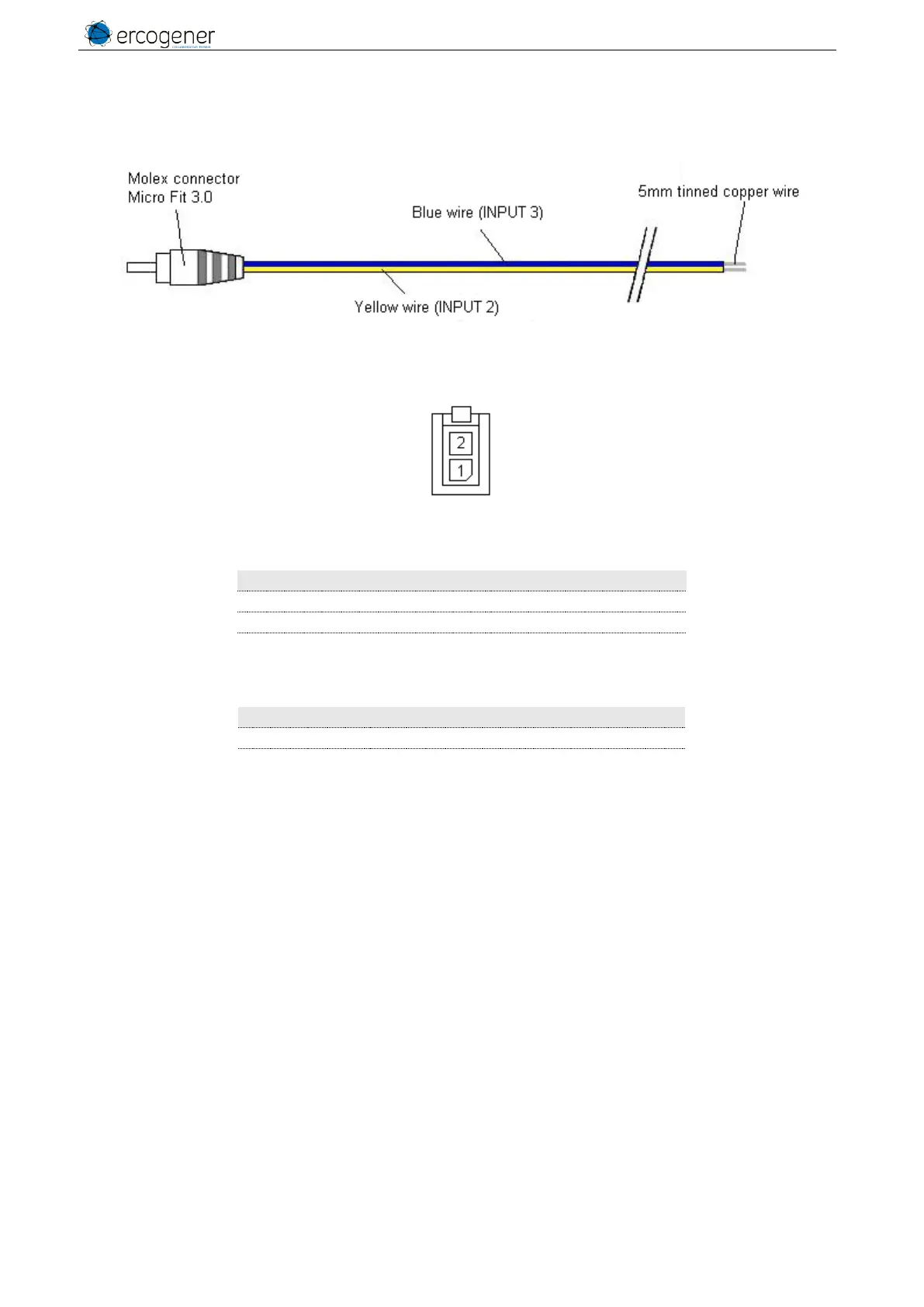

Figure 34 : 2-wire Micro FIT cable connector (Input/Output)
Side view of cable
Table 47 : Characteristics of 2-wire Micro FIT cable
Component
Characteristics
2-pin Micro FIT connector
Cable
Length ≈ 1.5m
Wire
Section : 0.5 mm²
Table 48 : Wiring of 2-wires cable
N° Broche
Signal
Color
1
Input 2 (I2)
Yellow
2
Input 3 (I3)
Blue
