5.9 Recommended accessories
The accessories recommended by ERCOGENER for the modem GenPro 25e are described on our website
in the section Products/Accessories. For more information, please contact our sales department.
5.9.1 DIN-rail Kit – K002
The DIN-rail kit (35mm) K002 allows a quick assembly/disassembly on a DIN Rail (35mm) OMEGA (IEC/EN
60715 / DIN (35mm) 7.5mm).
5.9.1.1 Assembly of the Kit K002
Step 1 – Insert the kit in the groove situated under the equipment. Pay attention to the way of insertion, the
antenna must be upwards.
Step 2 – Center the kit and tighten the 2 screws.

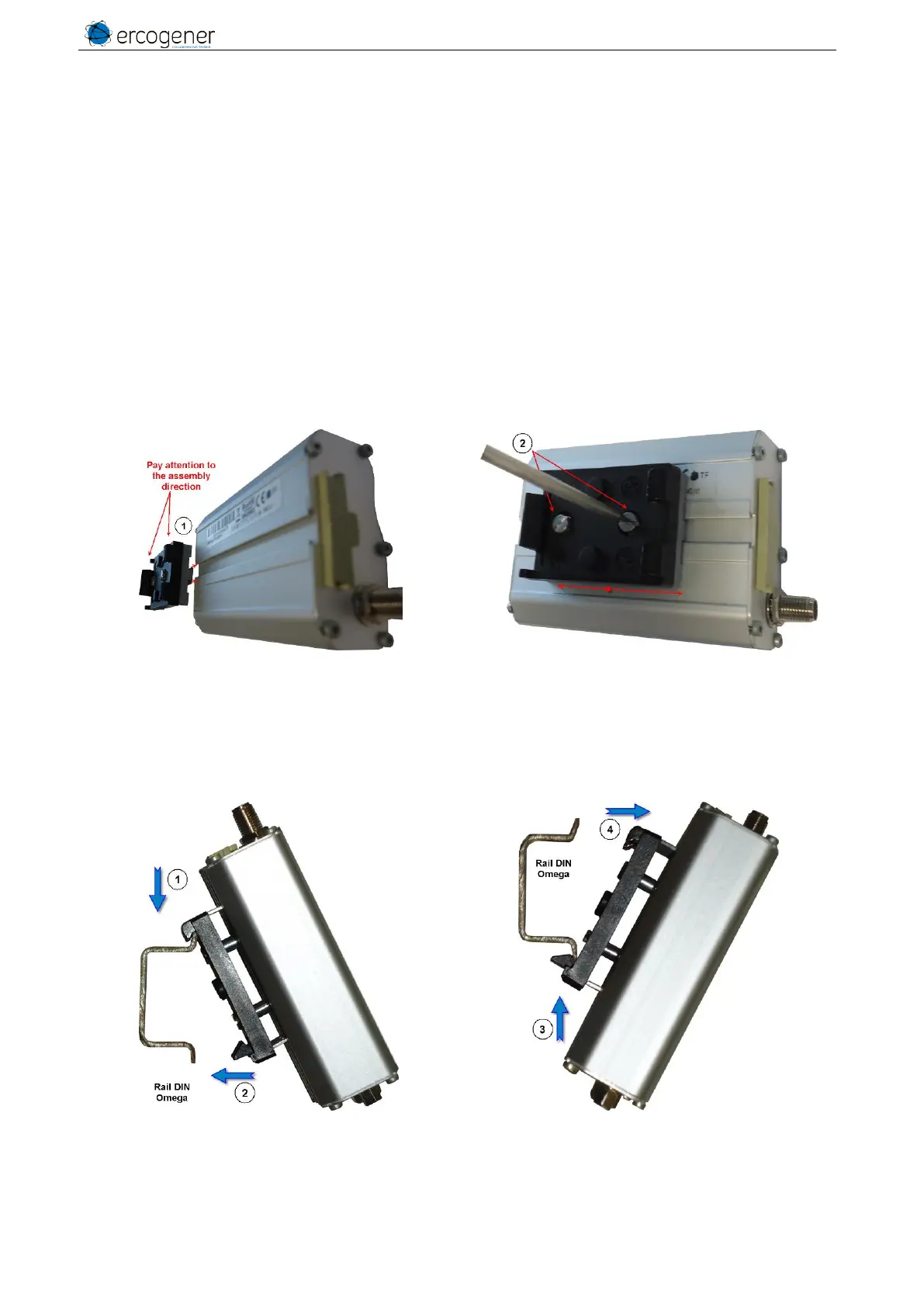

Figure 29 : DIN rail fixing – K002
5.9.1.2 Fixing on a DIN rail
To assemble the modem on a DIN Rail (35mm), follow the step 1 (pressure) and the step 2 (rotation) until
hearing a clic.
Figure 30 : DIN rail fixing
To disassemble the modem from the DIN Rail (35mm), follow the step 3 (pressure) and the step 4 (rotation
and removal).
