3.13 Accelerometer option S0432B
The GenPro 25e provides an accelerometer with 3 axis of sensitivity ±2G or ±8G controllable by software.

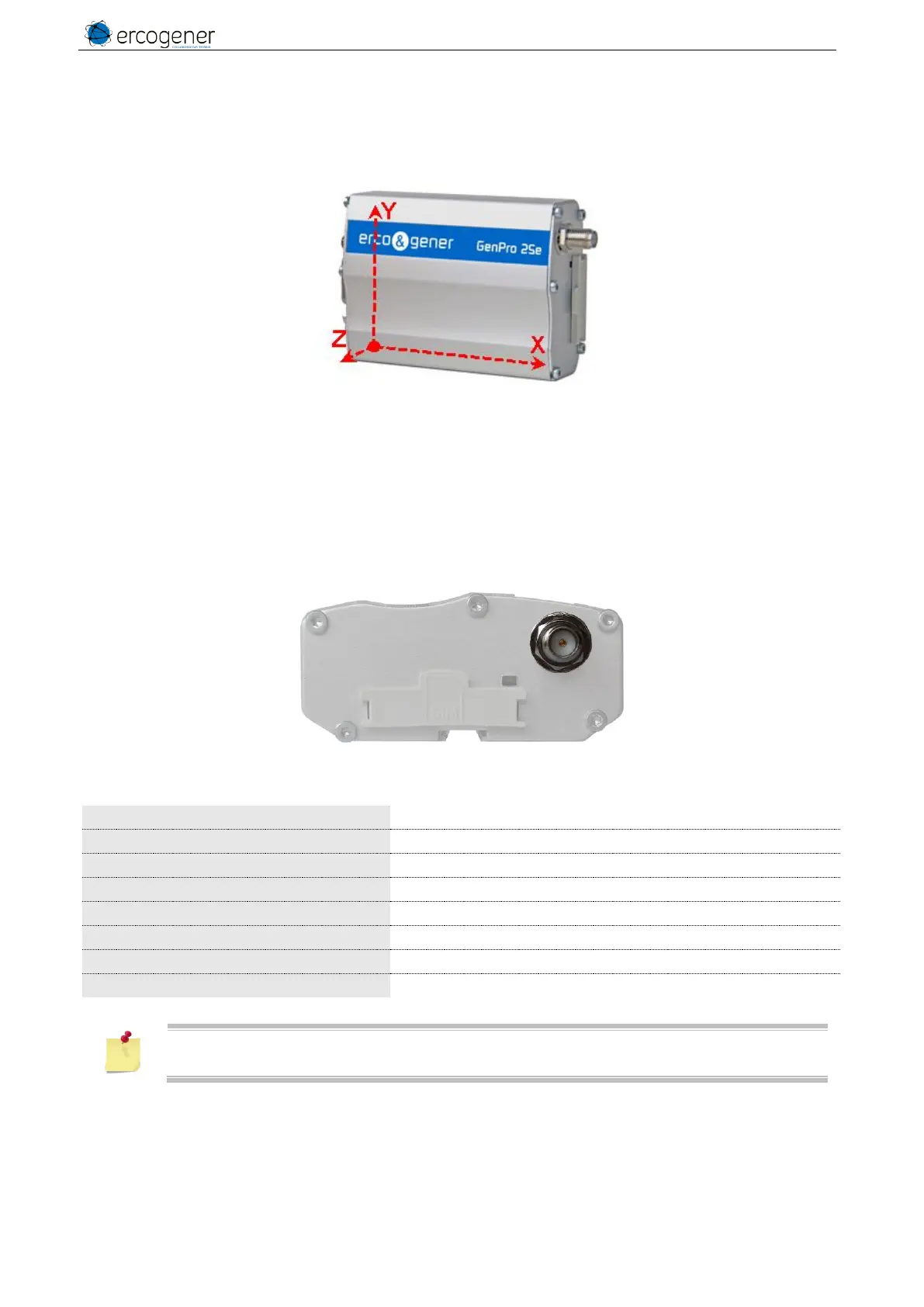

Figure 24 : Positioning of the accelerometer axis
4 GSM external antenna
The GSM external antenna is connected to the modem via le Connector SMA-Female.
The external antenna must respond to the characteristics described in the table below.
Figure 25 : GSM external antenna
Table 41 : Characteristics of GSM external antenna
Frequency band
900
880..960 MHz
1800
1710..1880 MHz
Impedance
50 Ohms nominal
Input power
> 2 W peak
Gain
VSWR
< 2:1 recommended < 3:1 acceptable
Return Loss
S
11
<-10 dB recommended S
11
<-6 dB acceptable
See § 5.9 Recommended accessories, for the GSM antennas recommended by
ERCOGENER.
