Rating plate with supply connection data
-- 7 2 --
cu20i1
INSTALLATION
The installation must be executed by a professional.

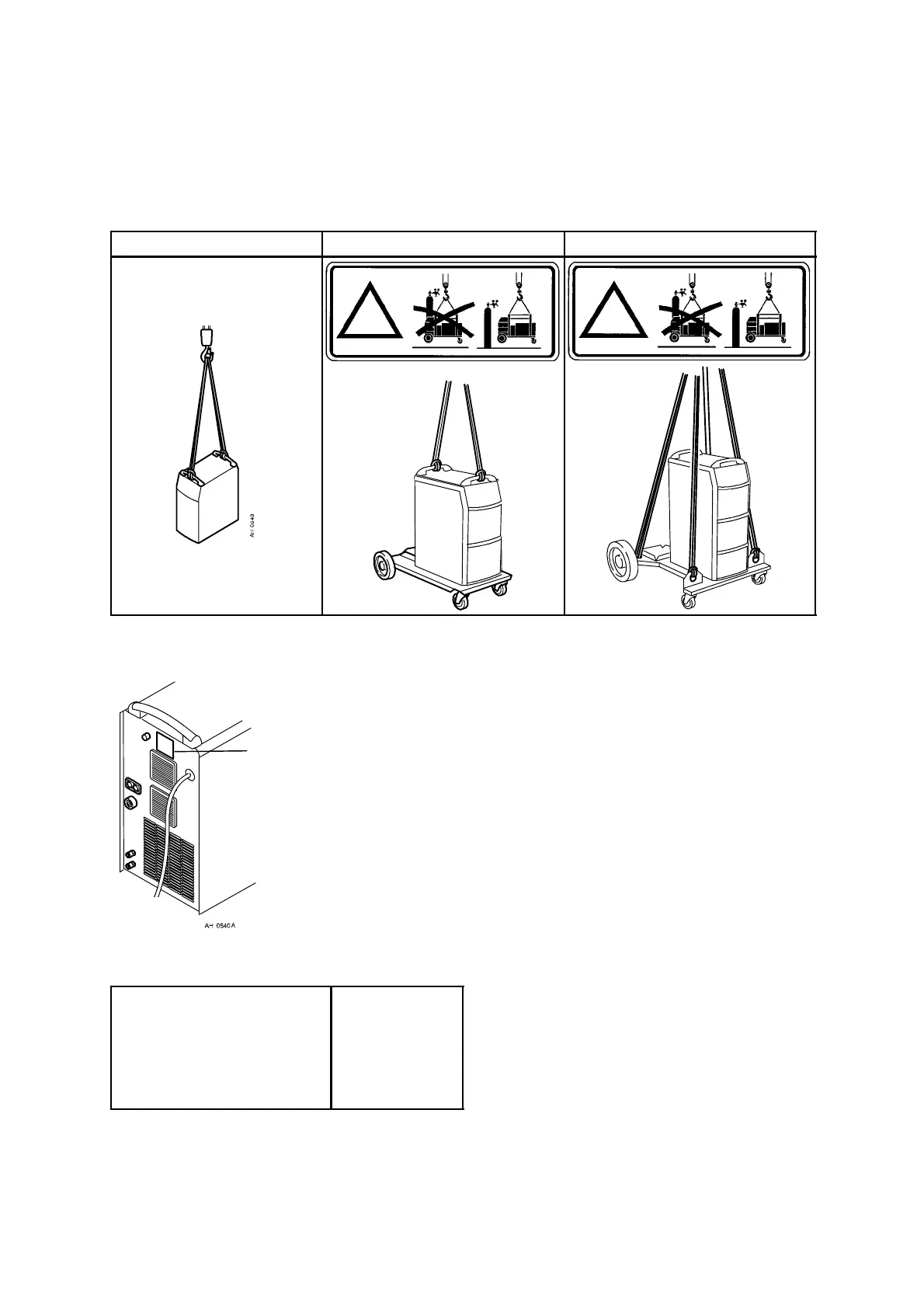

Lifting instructions
Power source Trolley and power source T rolley2 and power source
Mains power supply
Check that the unit is connected to the correct mains power supply
voltage, and that it is protected by the correct fuse sizes. A protective
earth connection must be made, in accordance with regulations.
Recommend ed f use sizes and minimum cable area
Mains voltage 400 V 3µ 50 Hz
Mains cable area, mm
2
4G4
Phase current, I RMS 22 A
Fuse
Anti--surge
Type C MCB
25 A
32 A
NB: The mains cable areas and fuse sizes as shown above are in accordance with
Swedish regulations. They may not be applicable in other countries: make sure that the
cable area and fuse sizes comply with the relevant national regulations.
