ESAB AristoMig U400 - Connections and Control Devices, Aristomig 400; Connections and Control Devices, Aristoarc 400

Edition 050614
-- 7 4 --
cu20i1

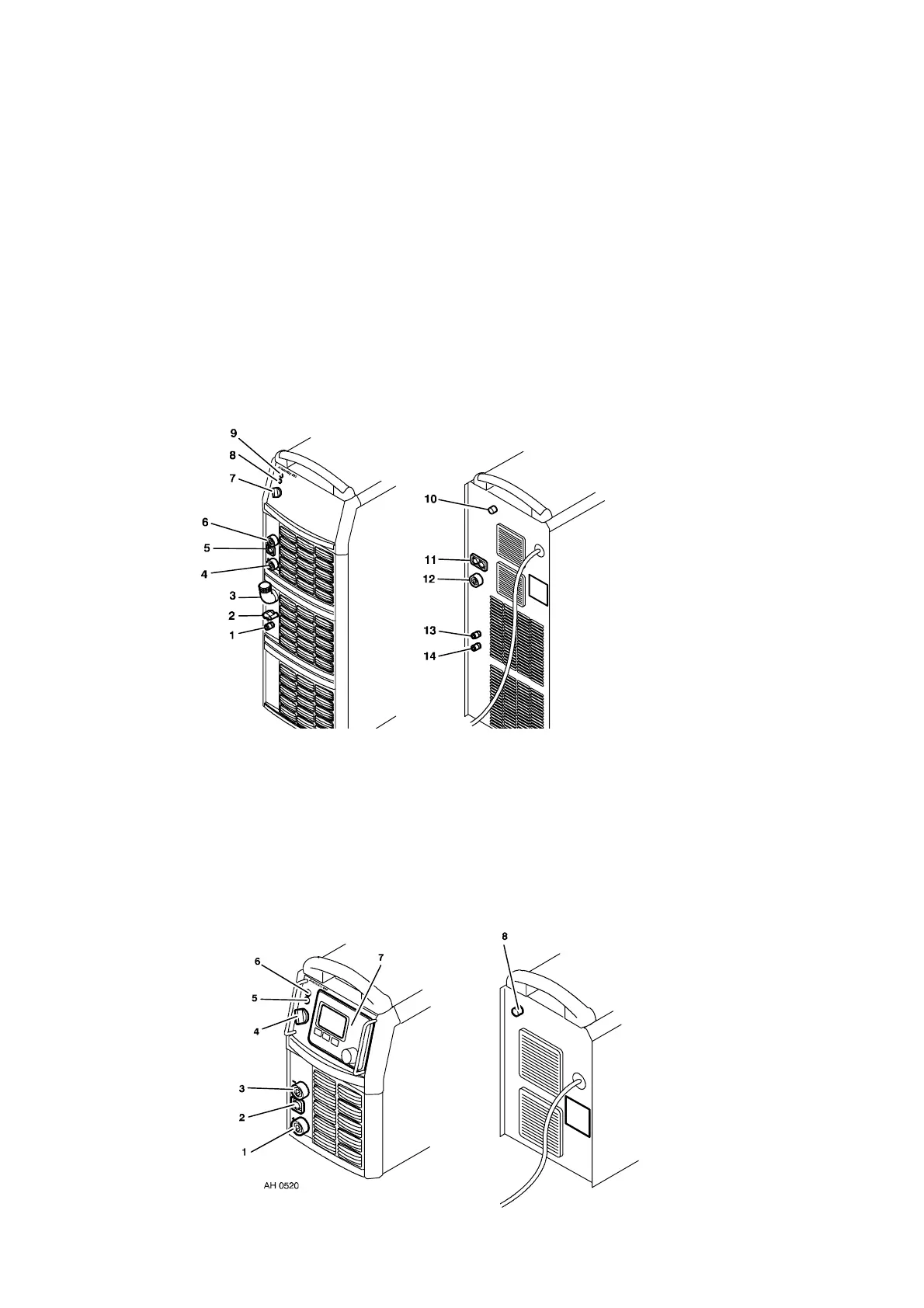

Connections and control devices, AristoMig 400
1 Connection for cooling water. Not used on
this model.
8 White indicating lamp -- Power supply ON
2 Connection for cooling water. Not used on
this model.
9 Orange indicating lamp -- Overheating
3 Cooling water filler 10 MCB
4 Connection for welding current cable (+)
(MMA welding)
11 Connection for control cable to the wire
feed unit or terminating resistor
5 Connection for remote control adapter 12 Connection for welding current to the wire
feed unit
6 Connection for return cable (--) 13 Connection for cooling water to the wire
feed unit -- BLUE
7 Main power supply switch, 0 / 1 / START 14 Connection for cooling water from the wire
feed unit -- RED
Connections and control devices, AristoArc 400
1 Welding current cable connector (+) 5 White indicating lamp, mains power supply
ON
2 Connector for remote control adapter 6 Orange indicating lamp, overheating
3 Return welding current cable connector (--) 7 Control panel
(see respective instruction manual)
4 Main power supply switch, 0 / 1 / START 8 Miniature circuit--breaker
