18

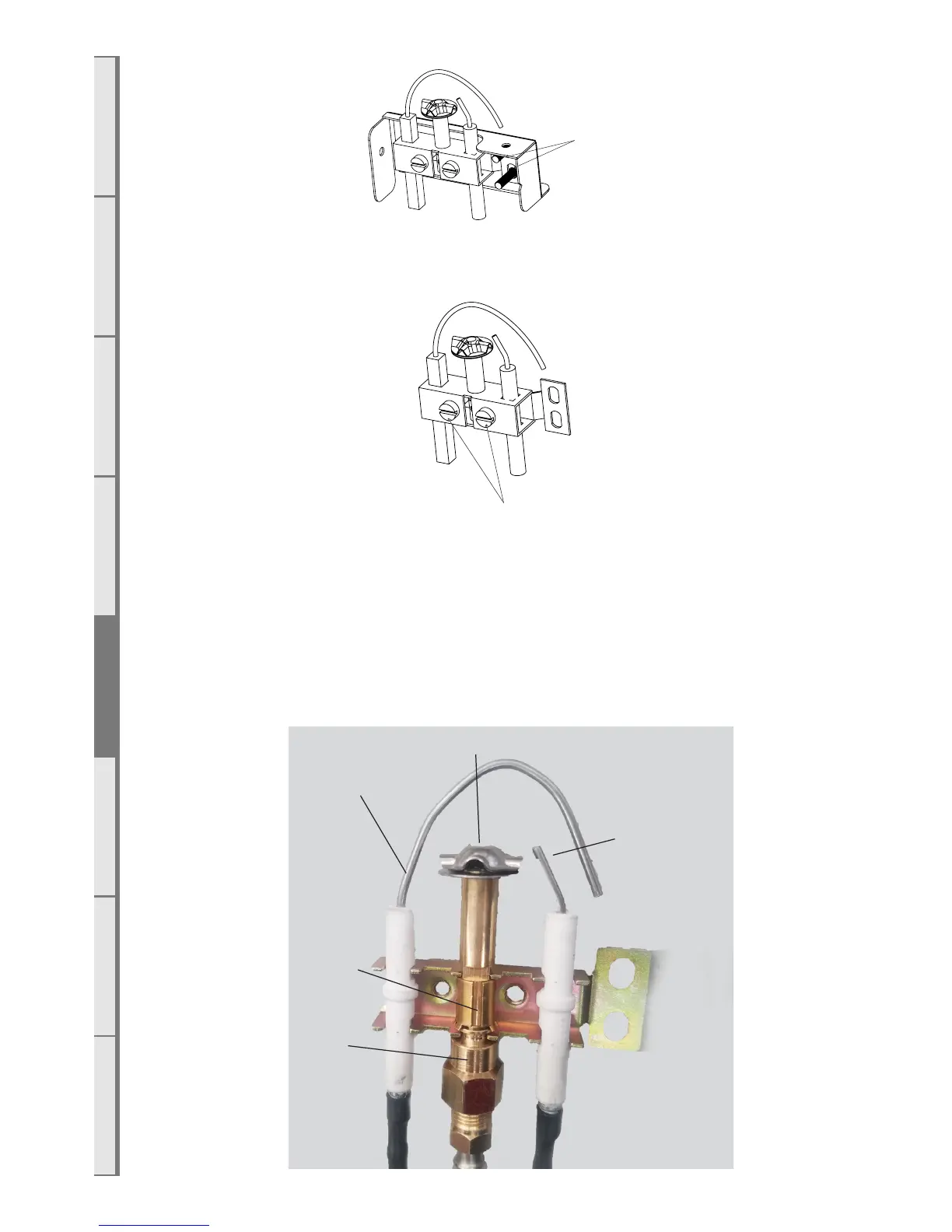

Remove 2 machine
screws and nuts
Step 9: Remove the two bolts from the bracket to allow for replacement of the pilot shroud and
electrodes.
Remove 2 x machine
screws
Step 10: Replace all components as required. If the pilot jet is being replaced, removed the existing jet
from the pilot tube and replace with a new jet.
Note: The pilot jet for LPG has a red stripe on it; the pilot jet for natural gas does not.
Place the electrodes and the pilot shroud back into the bracket.
Warning: Be aware of the orientation of the pilot hood and the spacing between the electrode and
flame sense. Also ensure that the collar hole on the pilot jet is open.
Flame Sense Electrode
Spark Electrode
Pilot Jet
