eschmann T20 Series - Page 10

P10/62 T-IM114b
1
2
3
4
4
3
2
1
5
6
7
8
9
9
10
8
6
11
5
7
9
9
12
View from Leg end
View from Head end
1 Head section
2 Long trunk section
3 Short trunk section
4 Leg section
5 Leg section gas spring
6 Short trunk section release button
7 Accessory side rail (can also be used to stow handset*)
8 Long trunk section release button
9 Head or leg section end block (use to stow UK/EURO handset)
10 Head section release bar
11 Head section gas spring
12 Leg section release bar
* Clip on handset must match side rail type, see accessory section 4.8

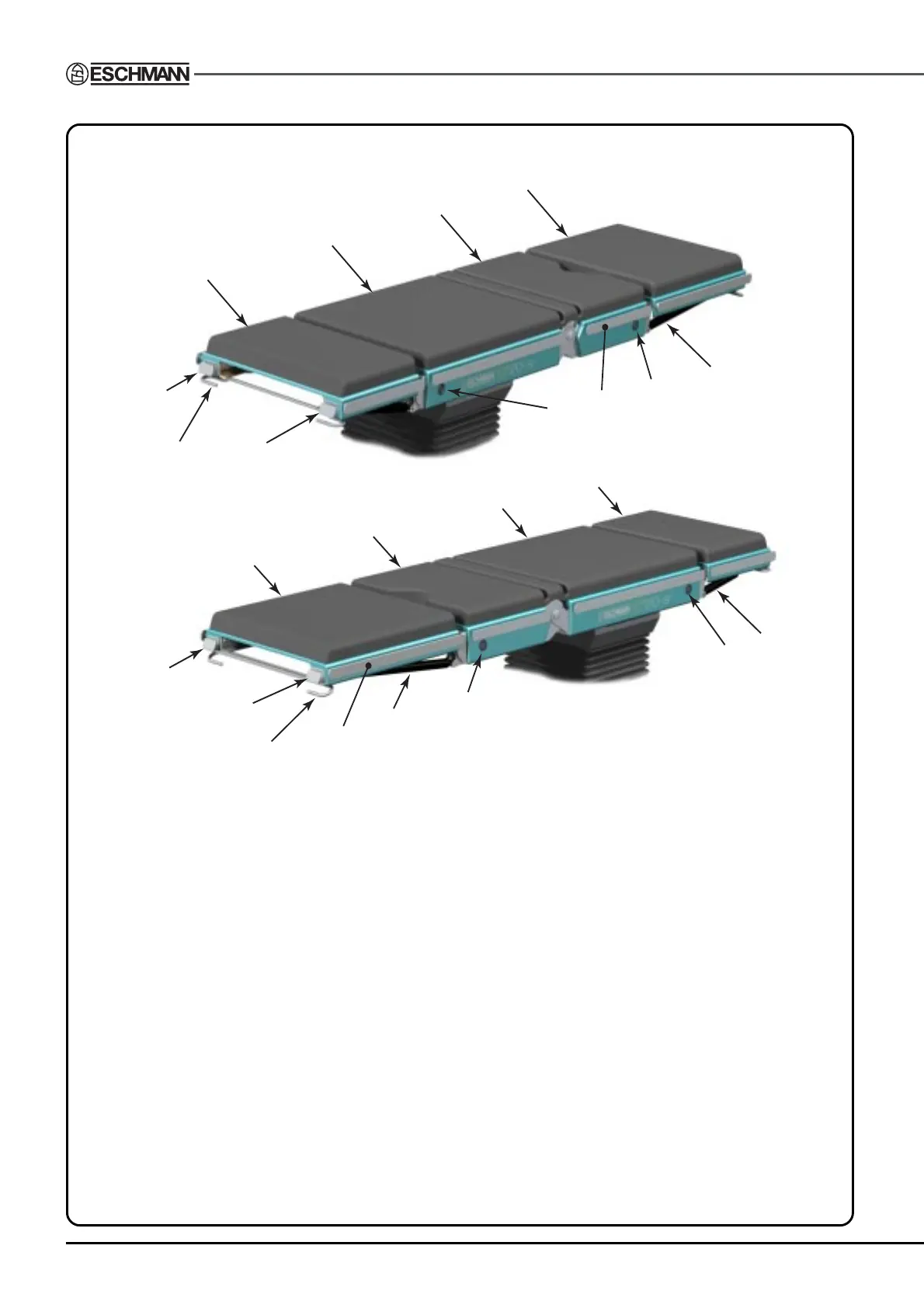

Fig. 2.1 Identification of the main parts of the T20 Series table top.
