6.5 Coupling FlatFix Fusion segments

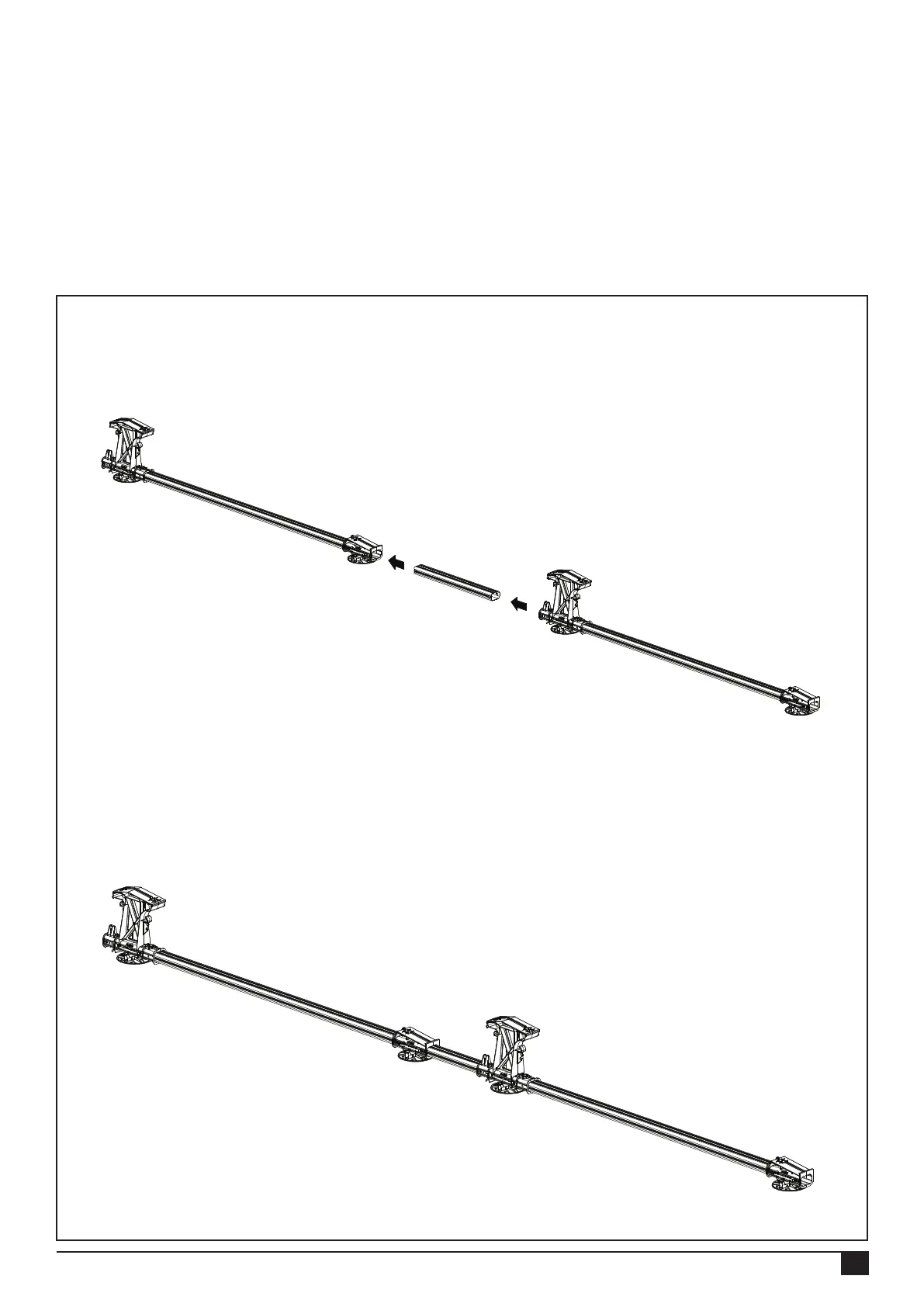

1. Make two FlatFix Fusion segments upright and place them at such a distance behind each other so that the base prole
can be mounted between them. Slide the end of the base prole into the opening on the low side of the rst FlatFix Fusion
segment until it clicks.
2. Slide the second FlatFix Fusion segment with the opening of the high side over the end of the base prole until it clicks.
3. The rst coupled FlatFix Fusion segments are now ready. Repeat the above steps until you have enough coupled FlatFix
Fusion segments to set out the rst two rows of solar panels.
09
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
1.
2.
CLICK !
CLICK !
3.
