ESDEC FlatFix Fusion - 6.10 Mounting cable exit guides and cables (option)

6.10 Mounting cable exit guides and cables (option)
14
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS

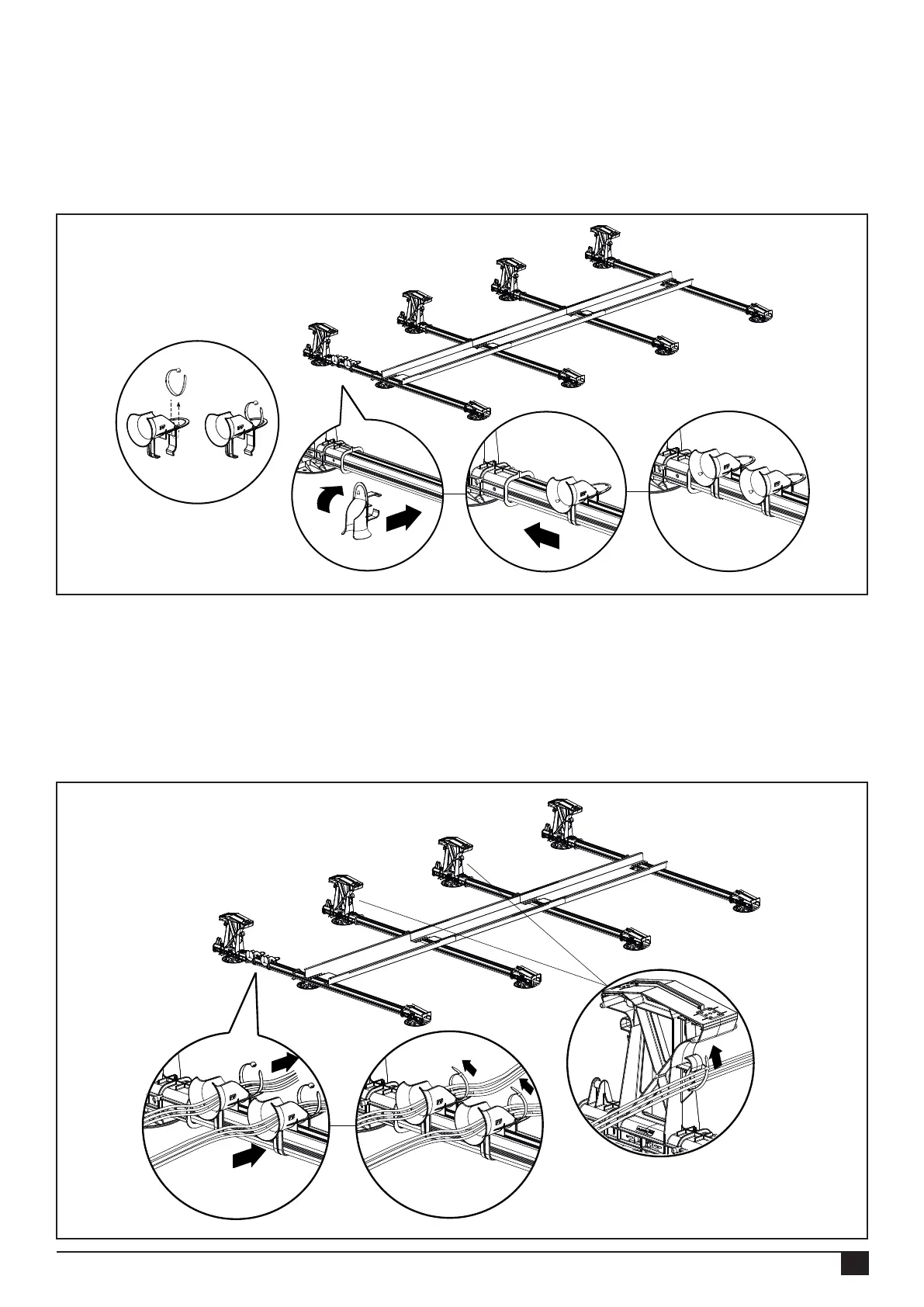

Cable exit guides can be clicked left and right on the base proles of the panel eld.
NOTE! Use cable ties (not included) to x the cables at the cable exit guides.
NOTE! Use cable ties that are compatible with the hole size of the cable exit guide (max. 7 mm width).
1. Feed all (+) cables through the 1
st
cable exit guide and all (-) cables through the 2
nd
cable exit guide. Secure the cables in
the cable exit guides using cable ties to prevent cable play.
2. Fix the cables to the top cable guide of the 2
nd
high base using cable ties. Repeat this step until the cables are attached
to all high bases except the last high base.
Make sure that the length of cable that hangs loose is limited as much as possible.
NOTE! Make sure the cables are securely tied to prevent the cables from slipping.
