6.16 Equipotential bonding multiple rows (option, see also section 7.3)
The module clamps ensure good equipotential bonding between panels in the row direction. The rows can easily be
equipotential bonded to the earth busbar by connecting a 6mm
2
multi-core cable to 1 end clamp per row and nally to the
earth busbar.
If a blind mounting is desired under the panels, the grounding clamps can also be attached directly to one of the panels per
row. See section 7.3.2 for both options.

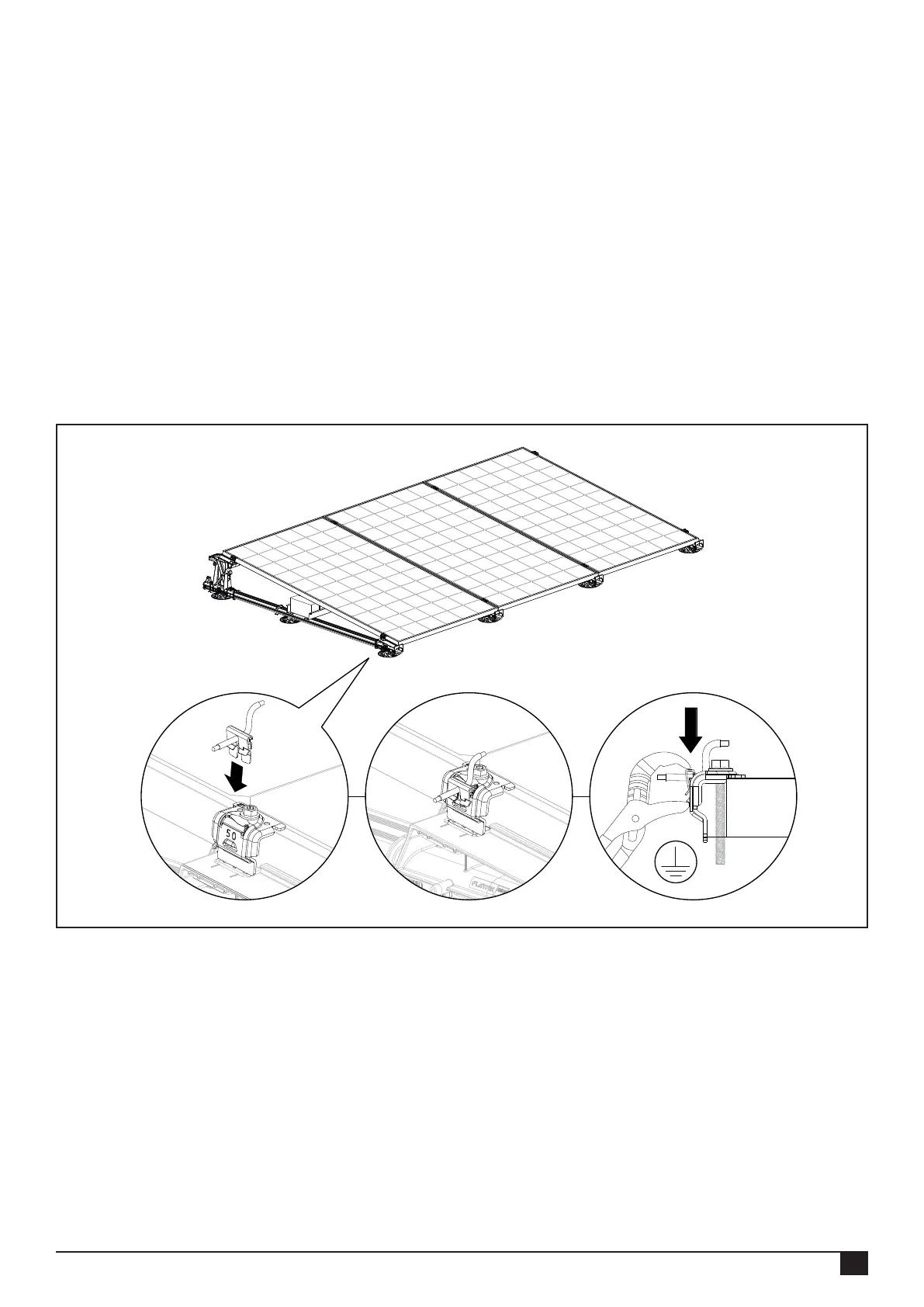

1. Place the multi-core cable at one side of the system. The multi-core cable can be easily clipped into the FlatFix Fusion
cable clip. To connect the multi-core cable to the end clamp, a loop must be created to the end clamp.
2. Use the grounding clamp to connect the multi-core cable to the end clamp. Insert the multi-core cable into the grounding
clamp and clamp the grounding clamp securely to the end clamp using pliers. Attach a grounding clamp to at least 1 end
clamp per row.
NOTE! The diagram in annex section 7.3.2 shows the positions of multi-core cable and grounding clamps on the end
clamps.
21
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
