16
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
6.12 Installing 1
st
solar panel

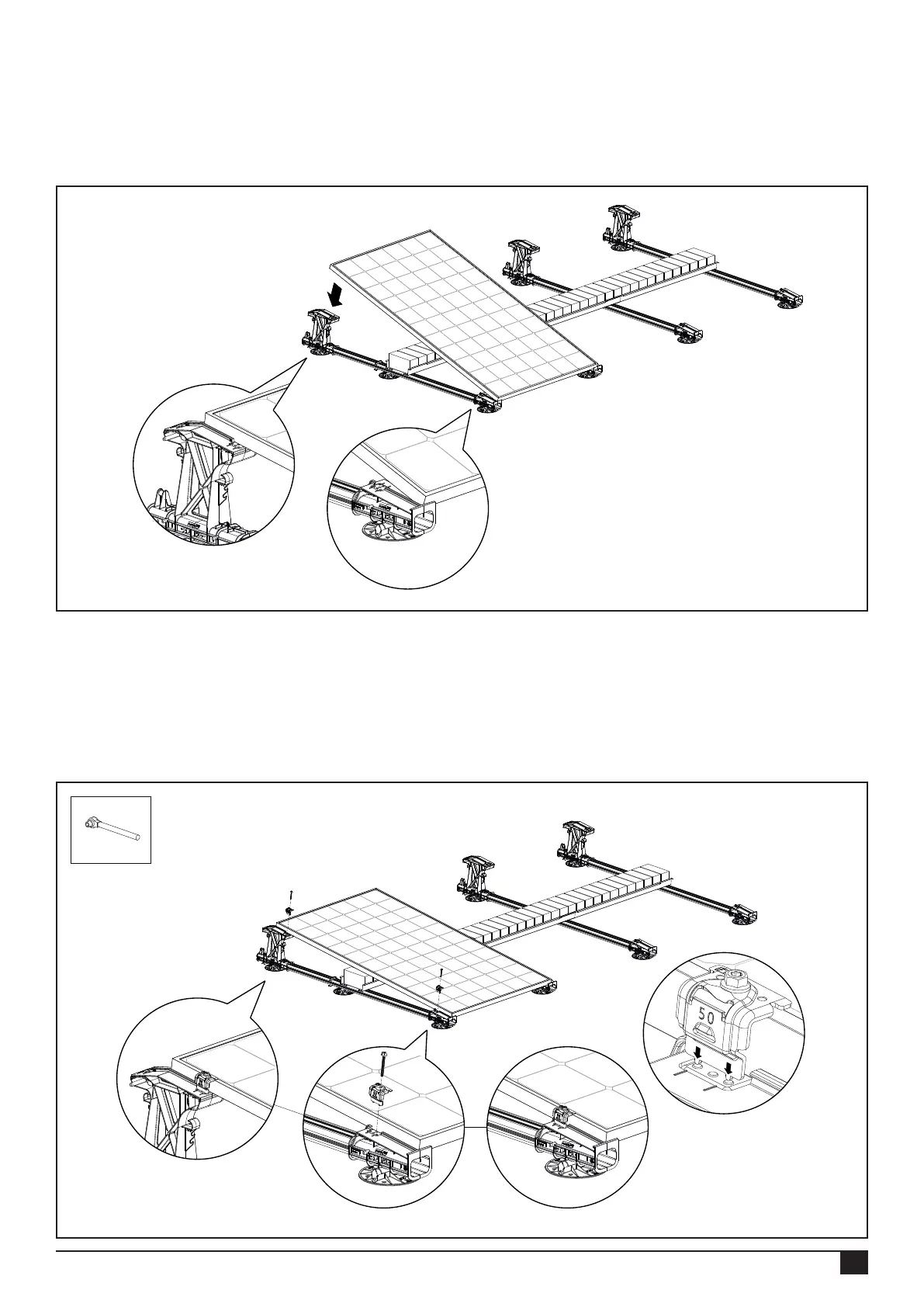

1. Place the 1
st
solar panel between the raised lugs of the low base.
2. Carefully tilt the solar panel so that it lies between the raised lugs of the bases.
3. Place the end clamps on the edge of the solar panel and position them at the mounting holes in the high and low bases.
Screw in the end clamp with the mounting screw into the mounting hole.
NOTE! The minimum tightening torque of the screw connection on clamps (10044xx) is 9Nm (maximum 10Nm). Refer to
your tool manual to set it to the correct torque.
