Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
6.
9 Mounting MLPE devices & cables

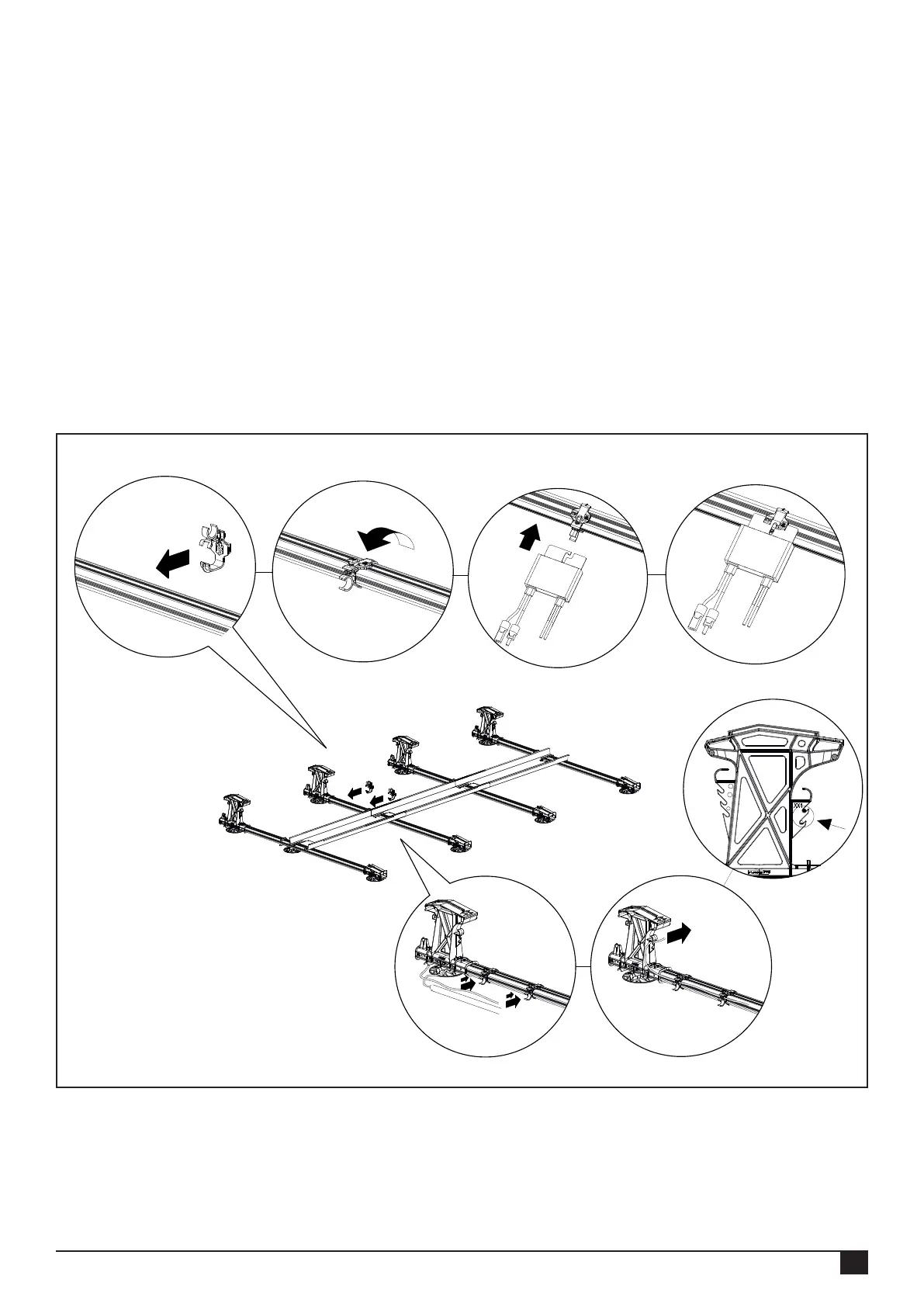

FlatFix Fusion Cable-clip Optimiser Ready Clips with integrated cable management and MLPE device attachment
have been supplied so that the cables are well guided and secured. There are also cutouts in the high base elements
to pass the cables through. This prevents the cables from lying on the (wet) roof. For mounting, follow the steps below:
1. Place the clips over the narrow side of the base proles.
2. Turn the clips so that they are clamped over the broad side of the base proles.
3. Place the cables in the cut-outs. The clips also provide a holder for a Ø25 mm conduit.
4. Pass the end of the cable through one of the cable guides of the high base element.
5. The solar panel cables can be attached to the high base element in the cable guide.
Optional: Click the optional MLPE device onto the MLPE Clip.
1. 2.
3.
5.
4.
CLICK!
