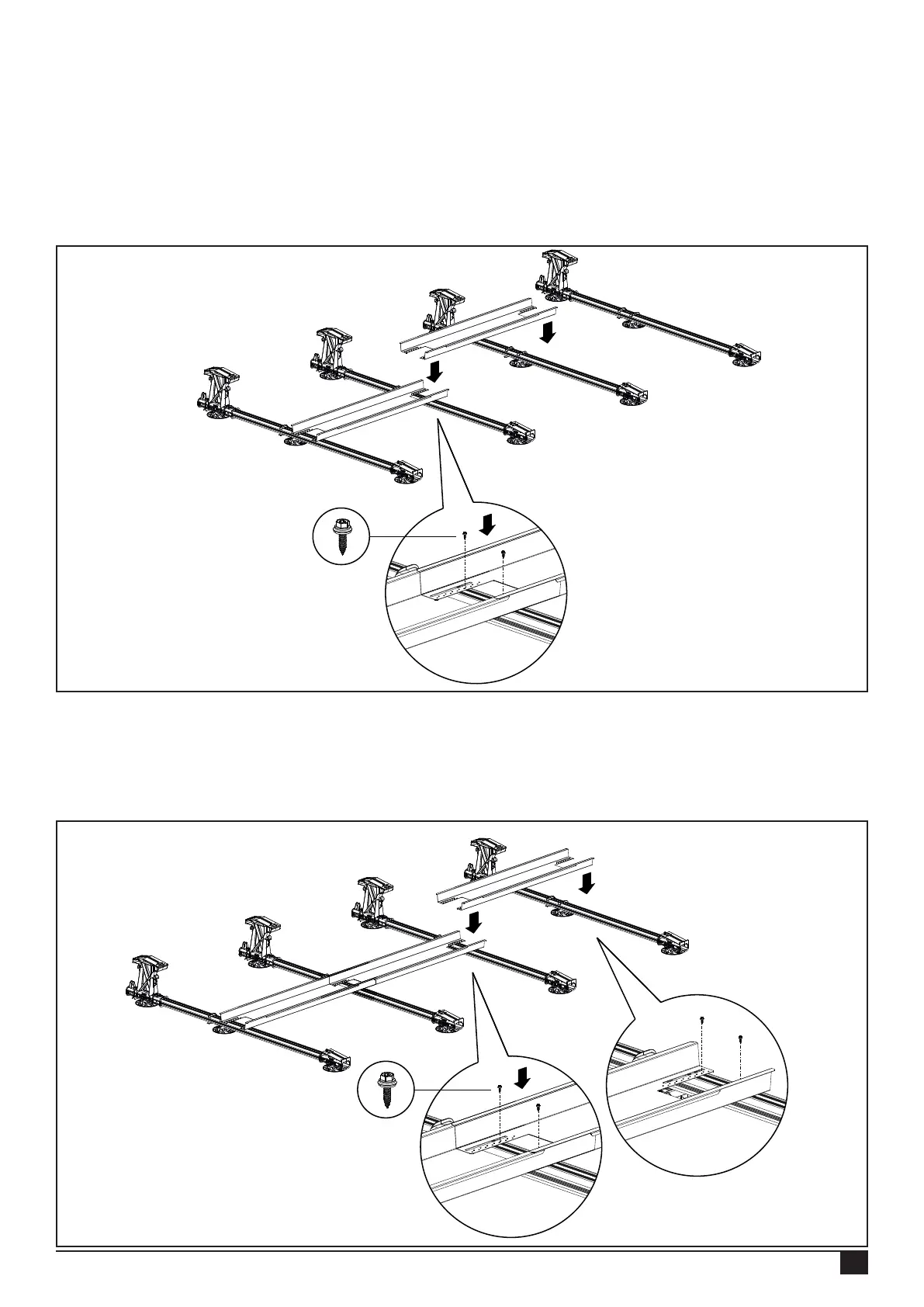

Place the second ballast container on the perimeter position precisely between the FlatFix Fusion segments and so that it
overlaps the rst ballast container Place the second ballast container on the base prole, against the roof support adapter.
NOTE! Ensure that the ballast container protrudes the same amount on both sides of the FlatFix Fusion segment
basic prole. Screw the ballast container onto the base proles with the self-tapping sheet metal screw (see illustration)
through one of the pre-punched holes in the ballast container. Where two ballast containers are located next to each other
overlap, one screw is sufcient.
12
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
Place the third ballast container on the perimeter position between the FlatFix Fusion segments and so that it overlaps the
second ballast container. Place the third ballast container on the base prole, against the roof support adapter.
Screw the ballast container onto the base proles with the self-tapping sheet metal screw (see illustration) through one of
the pre-punched holes in the ballast container. Repeat these steps until all ballast containers are installed. NOTE! Ensure
that the last ballast container of the last FlatFix Fusion segment protrudes a maximum of 10 mm relative to the base prole.
6x25 mm
Article no.:
1008085
6x25 mm
Article no.:
1008085
