ESDEC FlatFix Fusion - Annex; 7.1 Dimensional variants

24
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS

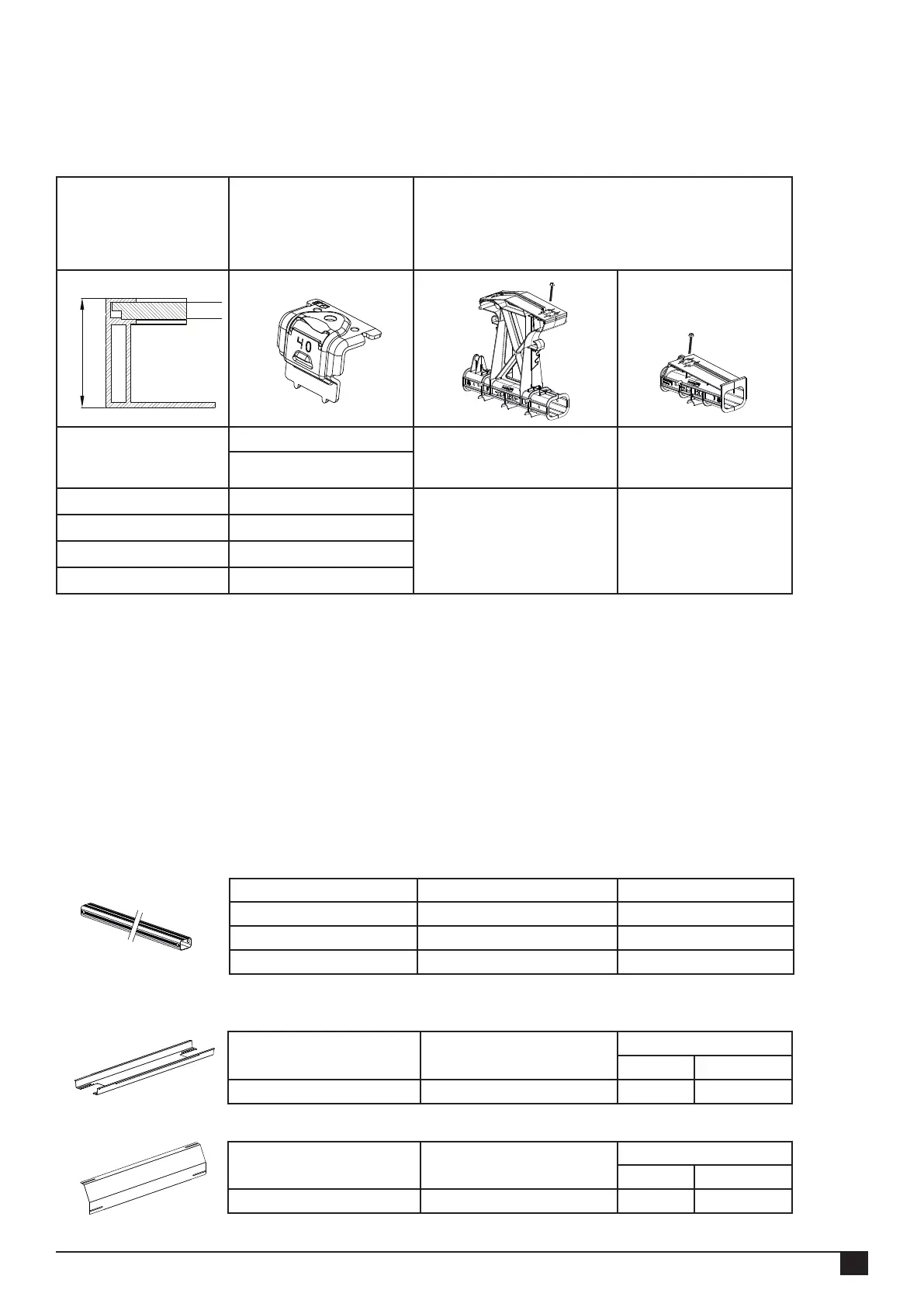

7. Annex
Frame thickness
[mm]
End clamp Mounting screw
Mounting screw -
High base
Mounting screw -
Low base
Article number
30 1004430
1000655
(55mm)
1000655
(55mm)
32 1004432
35 1004435
40 1004440
H
7.1 Dimensional variants
Article number Description Row spacing single
1007637 Base prole 370 mm 2050 *
1007655 Base prole 550 mm 2230
1007675 Base prole 750 mm 2430
* Standard length in the Esdec calculator
Row distance at base profile 1670 mm (article no. 1007197)
Article number Description Panel width [mm]
Min Max
1007230 Ballast container 1000 1140
Article number Description Panel width [mm]
Min Max
1007231 Wind deector rear 1000 1140
