ESDEC FlatFix Fusion - Installation; 6.1 Mounting roof support to bases; 6.2 Mounting additional roof supports (option); 6.3 Mounting TPO Protective Mat (option)

6. Installation
07
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS

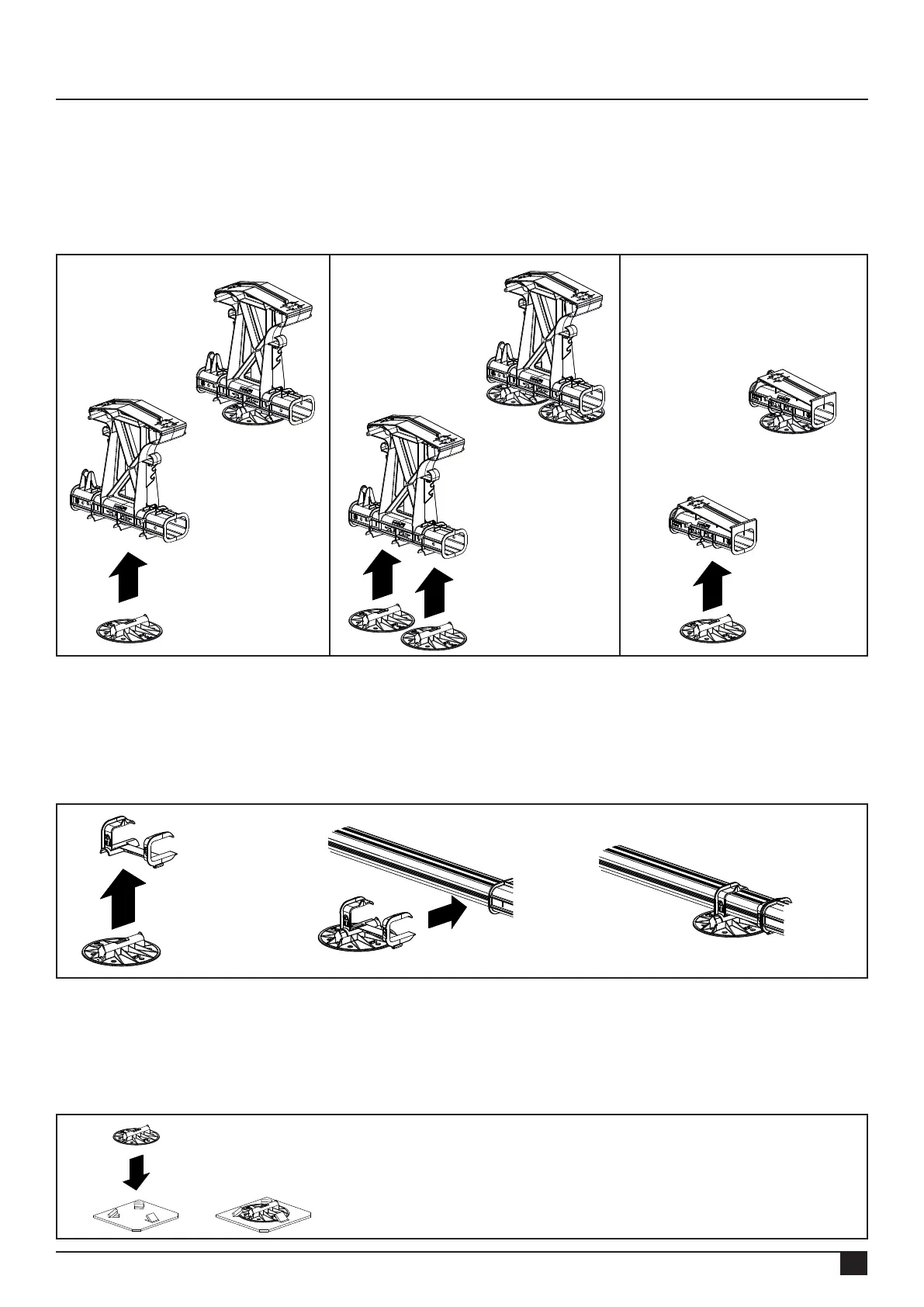

6.1 Mounting roof support to bases
1. Attach the roof support to the high base by means of a click connection. For this purpose, use the middle click connection
on the underside of the high base. Optional: In situations where ballast is placed, two roof supports are xed under the high
base. For this purpose, use the two click connections from the centre (1A).
2. Attach the roof support to the low base by means of the click connection.
1. 2.1A. Situation with ballast
CLICK!
CLICK!
CLICK!
6.2 Mounting additional roof supports (option)
If additional roof supports are required, these can be exibly adjusted by means of the roof support adapter. Attach the
roof support to the adapter by means of the click connection. This combination can then be snapped in place sideways
anywhere on a base prole.
CLICK!
CLICK!
6.3 Mounting TPO Protective Mat (option)
The optional TPO protection mat can be used to protect the TPO roong. Press the 3 rubber lips of the protective mat open
and place the roof support under the lips of the mat. Make sure that the roof support is properly enclosed by the rubber lips.
