ESDEC FlatFix Fusion - Ballast Configurations

420 mm
29
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
7.4 Ballast configurations

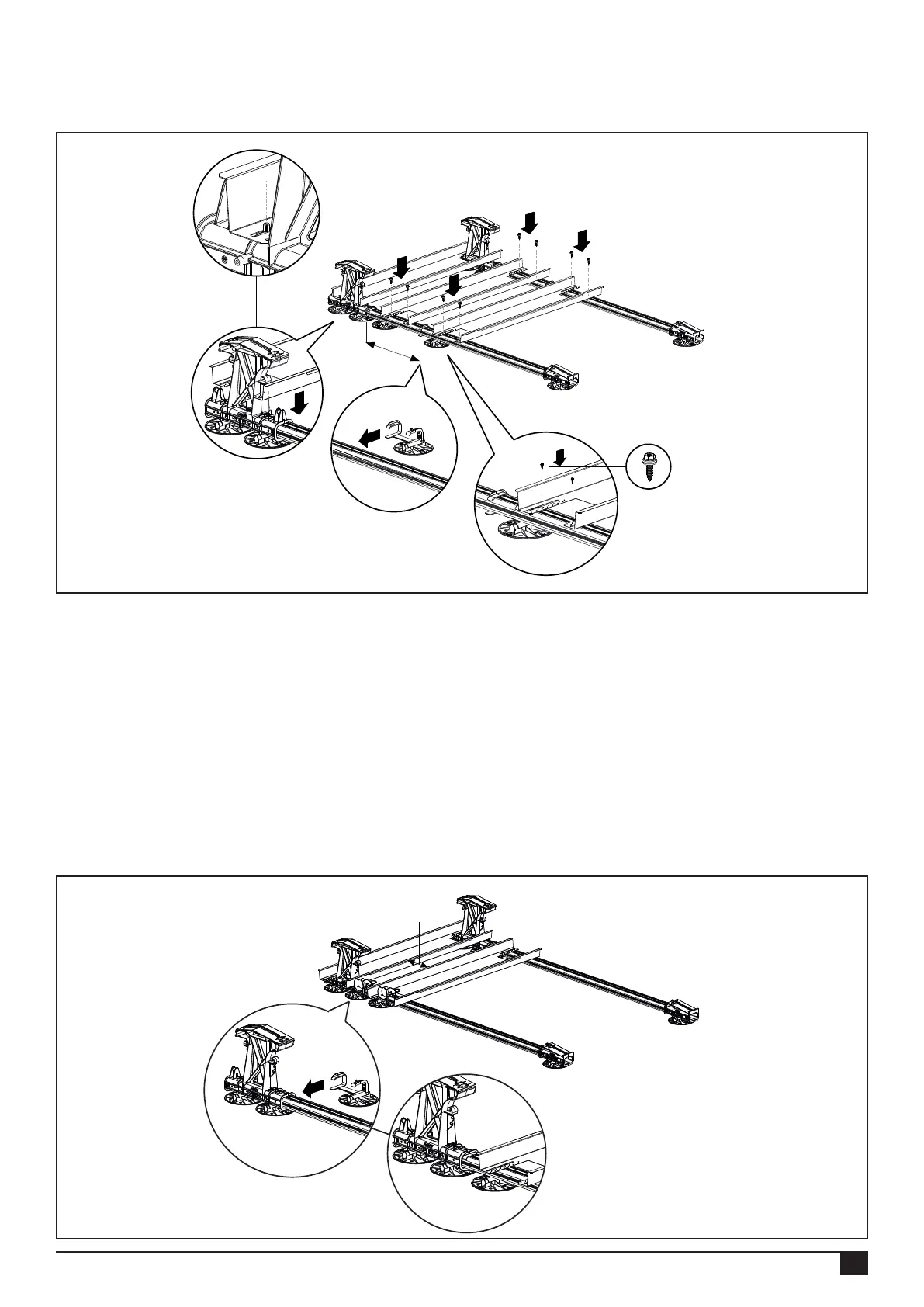

Ballast under the solar panel
1.
CLICK!
2.
If the calculator prescribes situations P, P2, or P3, an additional roof support with roof support adapter must be mounted
on the base prole. The ballast container must then be screwed with the self-tapping placement screw 6.0 x 25 mm SW10
HEX/T30 (article no. 1008085) through one of the pre-punched holes in the ballast container, onto the base proles. Where
two side-by-side positioned ballast containers overlap each other, one screw is sufcient.
If a cable exit guide must be placed here, take into account a distance of 135mm.
6,0x25
Article no.:
1008085
135 mm
1.
CLICK!
2.
