ESDEC FlatFix Fusion - Product description; Placing ballast; Fixing the solar panels

7*
1
2
6
5
3
8
13
2A
10
9
3A
11
19*
15*
15*
16*
18*
21*
4
20
17*
14
14
16*
16*
12
20
20
20
3. Product description
4. Parts overview

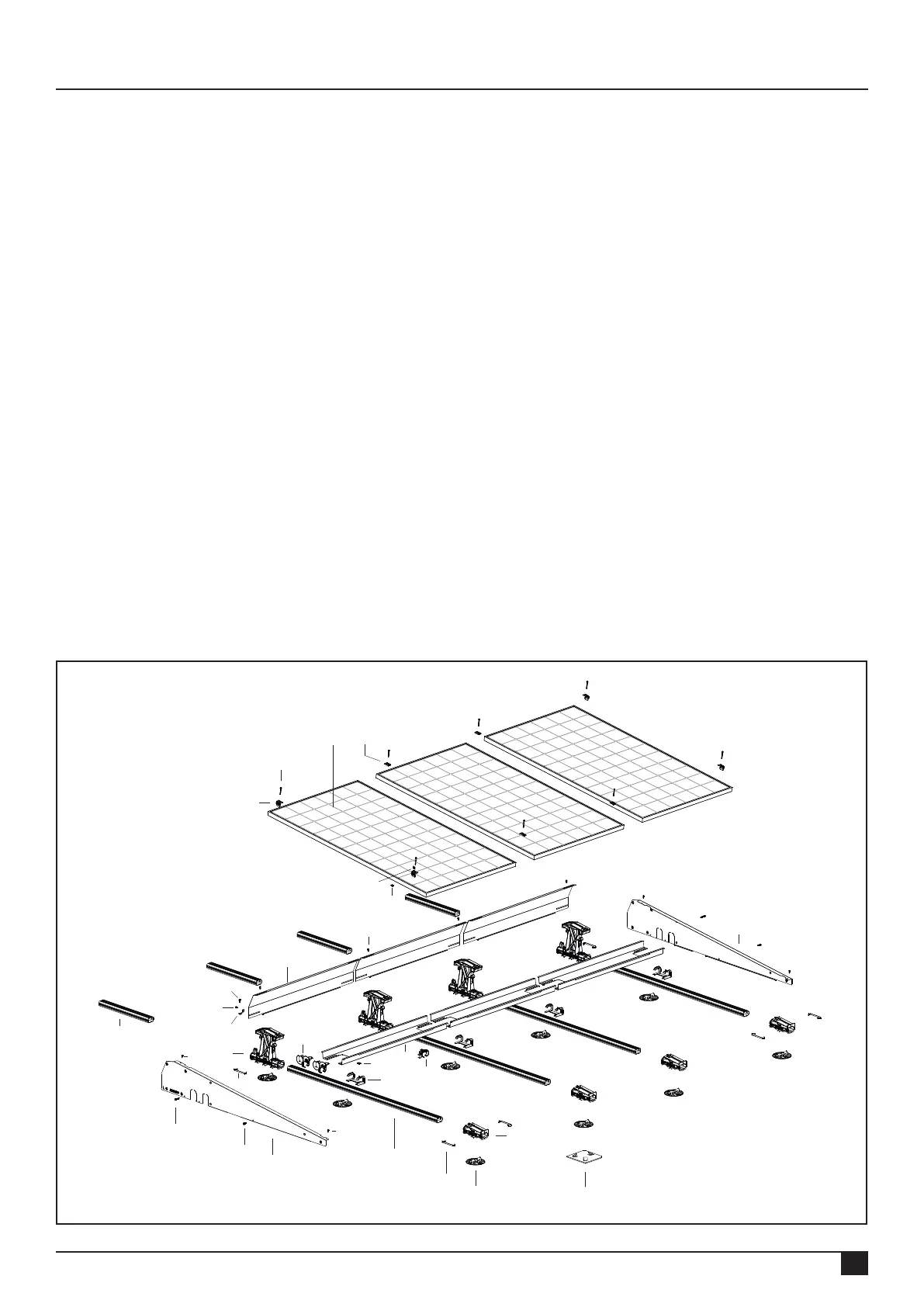

4.1 Exploded-view
03
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
The mounting system is made up of high-quality plastic bases, which are connected to each other in the longitudinal
direction with aluminium base proles. In the lateral direction, the FlatFix Fusion segments are connected to each other with
wind deectors. The necessary mounting materials are also available to mount the solar panels in a portrait setup on the
roof. The FlatFix Fusion mounting system can be used for all types of roong.
Placing ballast
The FlatFix Fusion system is not normally xed to the roof, but simply rests on it. Only with a roof pitch of more than
3° (2° for PVC) the roof supports have to be bonded to the roof. Please observe the processing instructions for the
sealant and the roof covering in order to ensure these are compatible. The system is made resistant to the wind by
weighing it down with ballast. The ballast weight is partly related to the height of the building and the conguration
of the system. Place the ballast in the ballast containers. Consult the project plan for the positioning and quantity of
ballast.
Fixing the solar panels
The solar panels are positioned on the top of the bases and are secured by means of universal module clamps, end clamps
and mounting screws. The mounting screws are screwed directly into the mounting holes of the bases. The tightening
torque of the mounting screws is specied in more detail in section 6.
