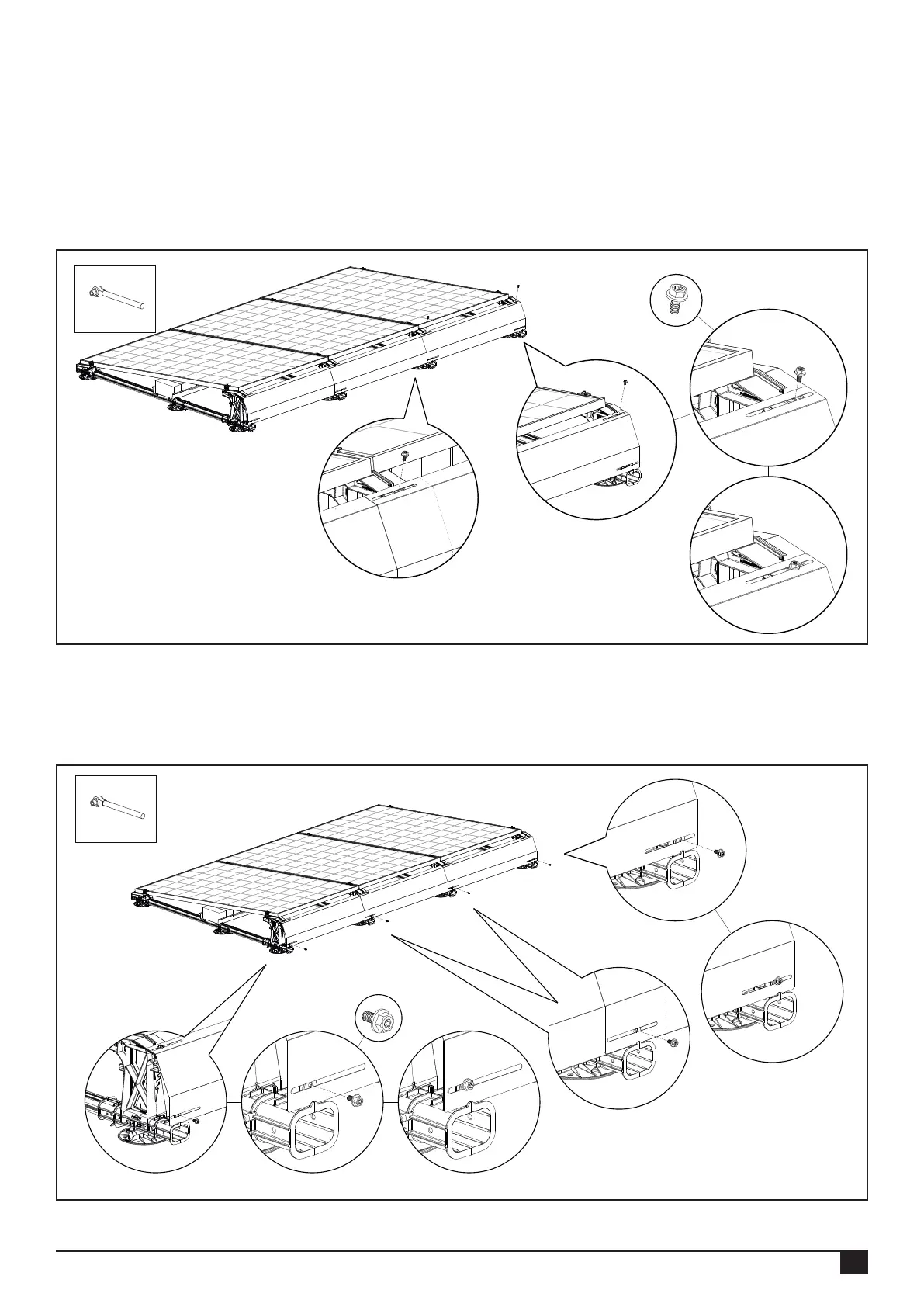

Place the last wind deector at the rear of the solar panels, so that the bottom edge of the wind deector falls between the
raised lugs of the high bases and the slots of the wind deectors, and the screw holes of the high bases overlap.
Attach the wind deector (on both sides) to the high bases by placing the mounting screw M6x12 in the 2 top slots of
the wind deector and screw it into the mounting holes of the high bases. NOTE! The maximum tightening torque of the
screw connections is 9 Nm. Refer to your tool manual to set it to the correct torque.
19
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
M6x12
Article no.:
1000612
Attach the wind deectors (on lower sides) to the high bases by placing the mounting screw M6x12 in the slots of the wind
deector and screw it into the mounting holes of the high bases. NOTE! The maximum tightening torque of the screw
connections is 2 Nm. Make sure that the mounting screws do not slip in the base. Refer to your tool manual to set it to the
correct torque.
M6x12*
Article no.:
1000612
*Esdec tested and approved the M6 x 12 metric screw for xing the rear wind deector to the high plastic base.
