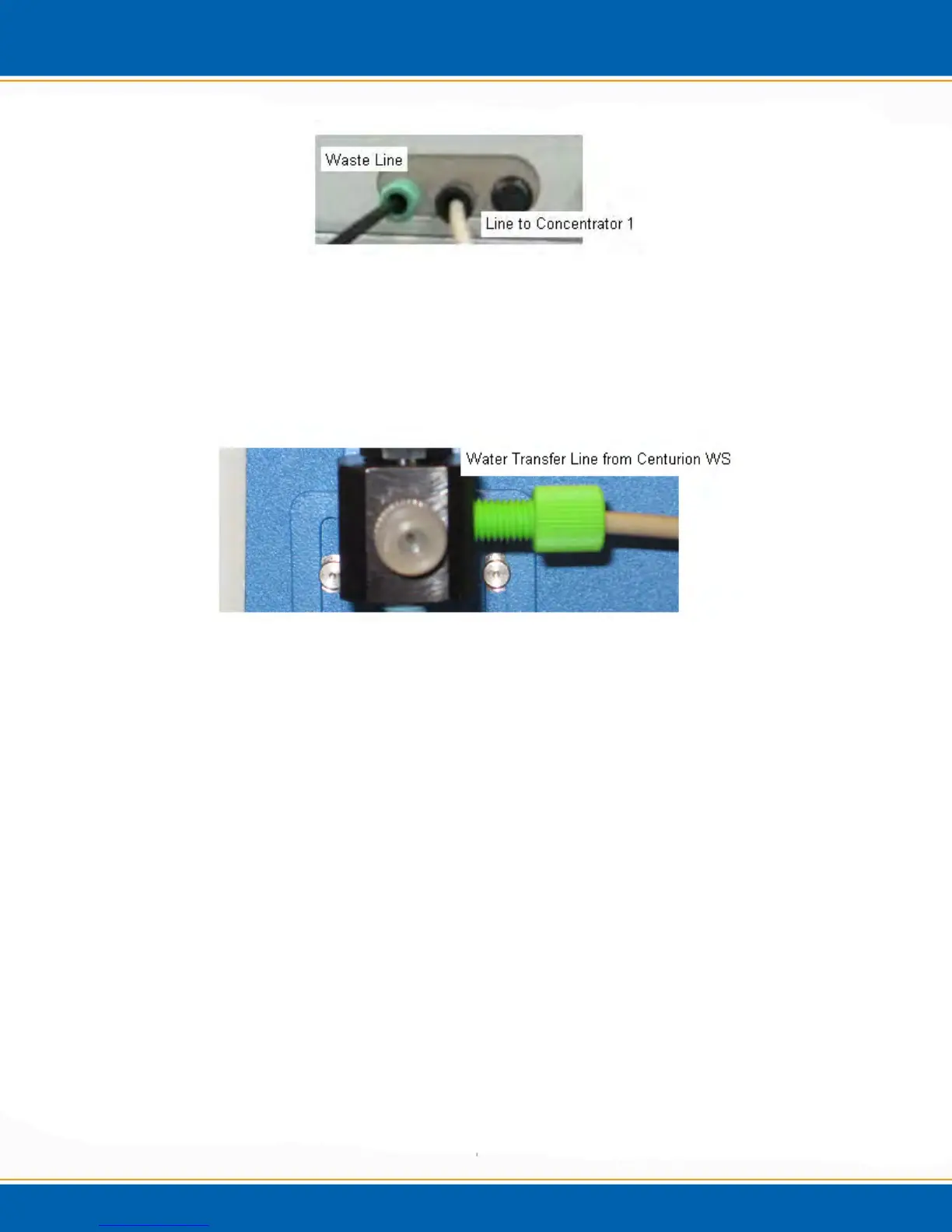

Figure 2e: Waste Line
Concentrator (1)-PEEK Tubing, see Figure 2e and 2f
o Super Flangeless Nut-black
o Super Flangeless Ferrule-ring/PEEK ferrule
o Connect to Concentrator (1) three way valve-green nut and
natural ferrule.
Figure 2f: Water Transfer Line Connection to Concentrator
Concentrator (2)-if applicable, same connections as Concentrator (1).
Concentrator (1)-Soil Purge Gas Line Connections – If Applicable.
(Note: Shipped as an assembly.)
o Connect PEEK tubing (red) to Concentrator (1) purge bulkhead
with Upchurch nut and Ferrule. See Figure 2g.
