o Connect PEEK tubing (blue) to Concentrator (1) glassware on the
purge side using the 1/16-1/4 Union. See Figure 2g.
o Connect the other end of the PEEK tubing (blue) to the Centurion
WS port labeled Concentrator (1) Sparge Tube using Reverse Nut
PEEK and ferrule. See Figure 2h.
Concentrator (2)-if applicable, same connections as Concentrator (1).
Soil Transfer Line
o Connect Valco nut on the end of the heated transfer line to the four
way Tee in the concentrator. See Figure 2i.
WARNING: The heated transfer line needs to be routed at least
10 inches away from any adjacent objects. All other cables need to
be routed away from the transfer line heaters also.
AVERTISSEMENT: La ligne de transfert chauffée doit être
acheminé au moins 25.4 centimètres de tous les objets adjacents.
Tous les autres câbles doivent être acheminés à l'écart des
réchauffeurs de conduites de transfert aussi.

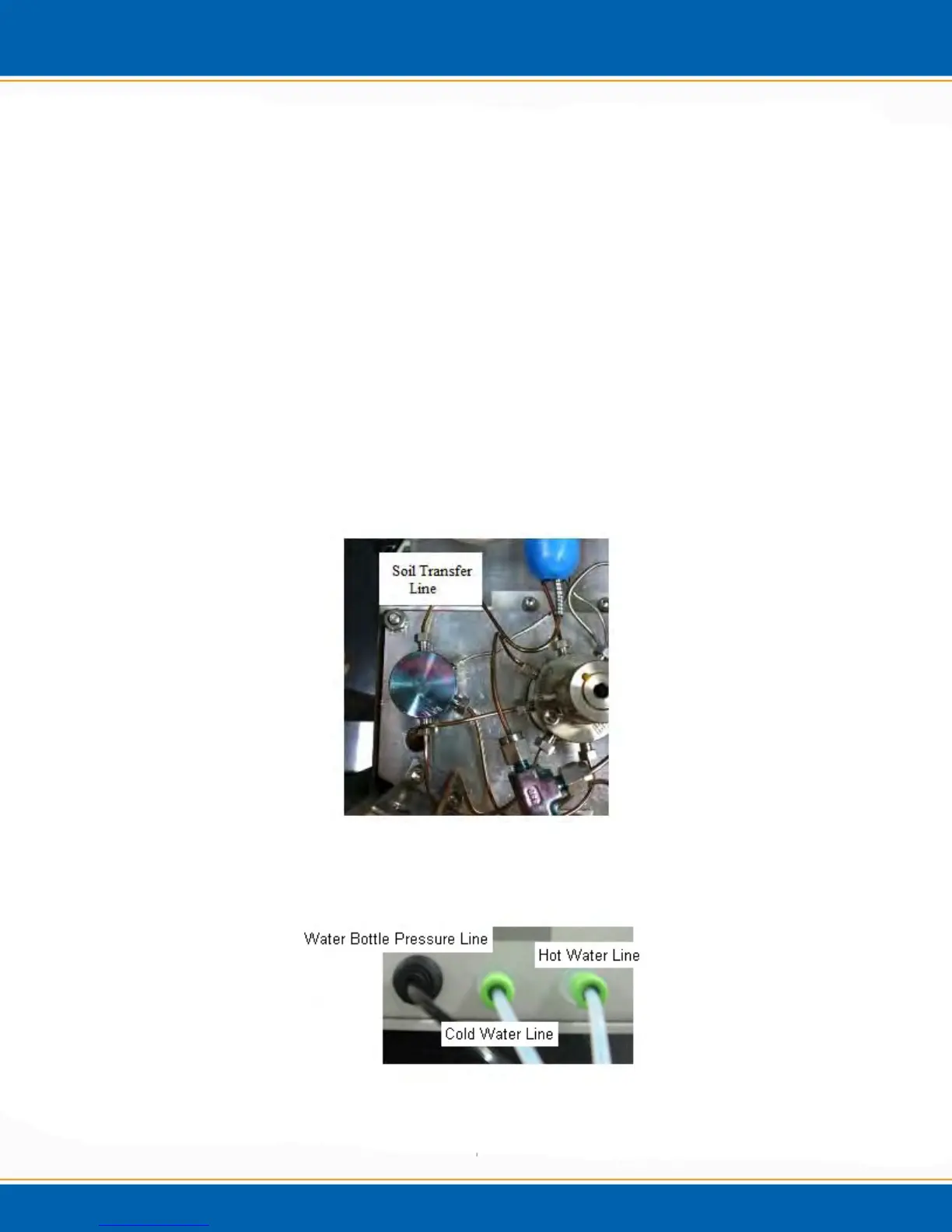

Figure 2i: Soil Transfer Line
Pressure Line (Water Bottle)-Black tubing.
o Quick connect fitting to back panel. See Figure 2j
Figure 2j: Water Bottle Pressure Line, Cold and Hot Water Lines
