 Cold Water Input (C)-Teflon Tubing, See Figure 2j
o Flangeless Nut-Green
o Flangeless Ferrule-PEEK
 Hot Water Input (W)-Teflon Tubing, See Figure 2j
o Flangeless Nut-Green
o Flangeless Ferrule-PEEK
2.5.2 Water Reservoir Cap Assembly
 Install Nut and Ferrule on the reservoir end of the cold and hot water
pickup lines. See Figure 2k.
o Flangeless Nut-Green
o Flangeless Ferrule-PEEK

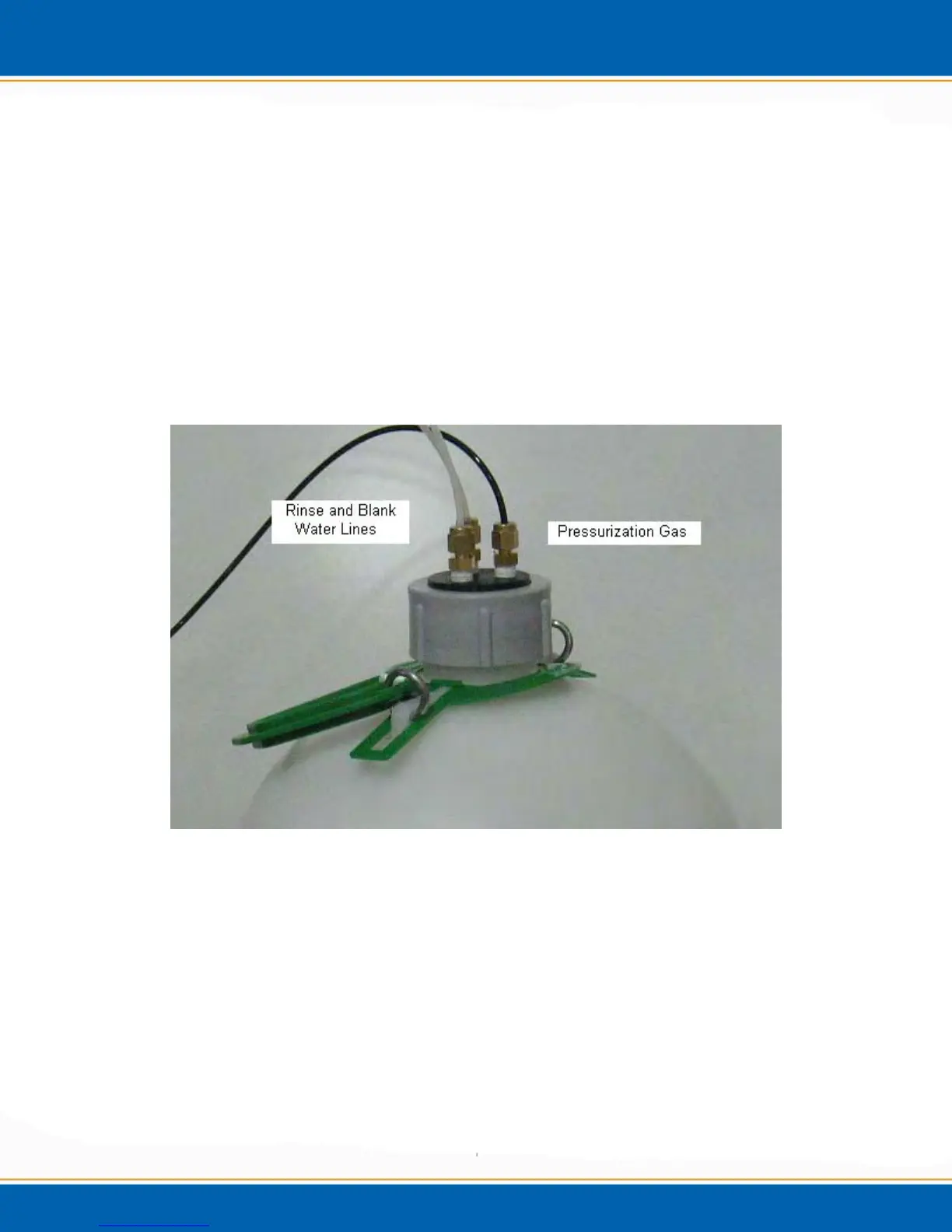

Figure 2k: Reservoir Lines
 Install cold and hot water pickup lines through two of the three holes in
the water reservoir plug. Lines need to reach the bottom of the reservoir.
 Install the frits to the ends of the cold and hot water pickup lines after
they have been installed through the reservoir plug. See Figure 2l.
o Frit
