ETAS 4 Calculated Signals
4 Calculated Signals
Calculated signals are helpful in displaying and analyzing measure data, for
example, for generating a difference signal or for making a direct comparison
with specific measured values. You first have to define a calculated signal. Then
it can be selected like any other measure signals in the Variable Explorer and be
assigned to an instrument. The inputs to calculated signals are always step inter-
polated, i.e. the last available value will be taken for calculation until there is a
new value available.

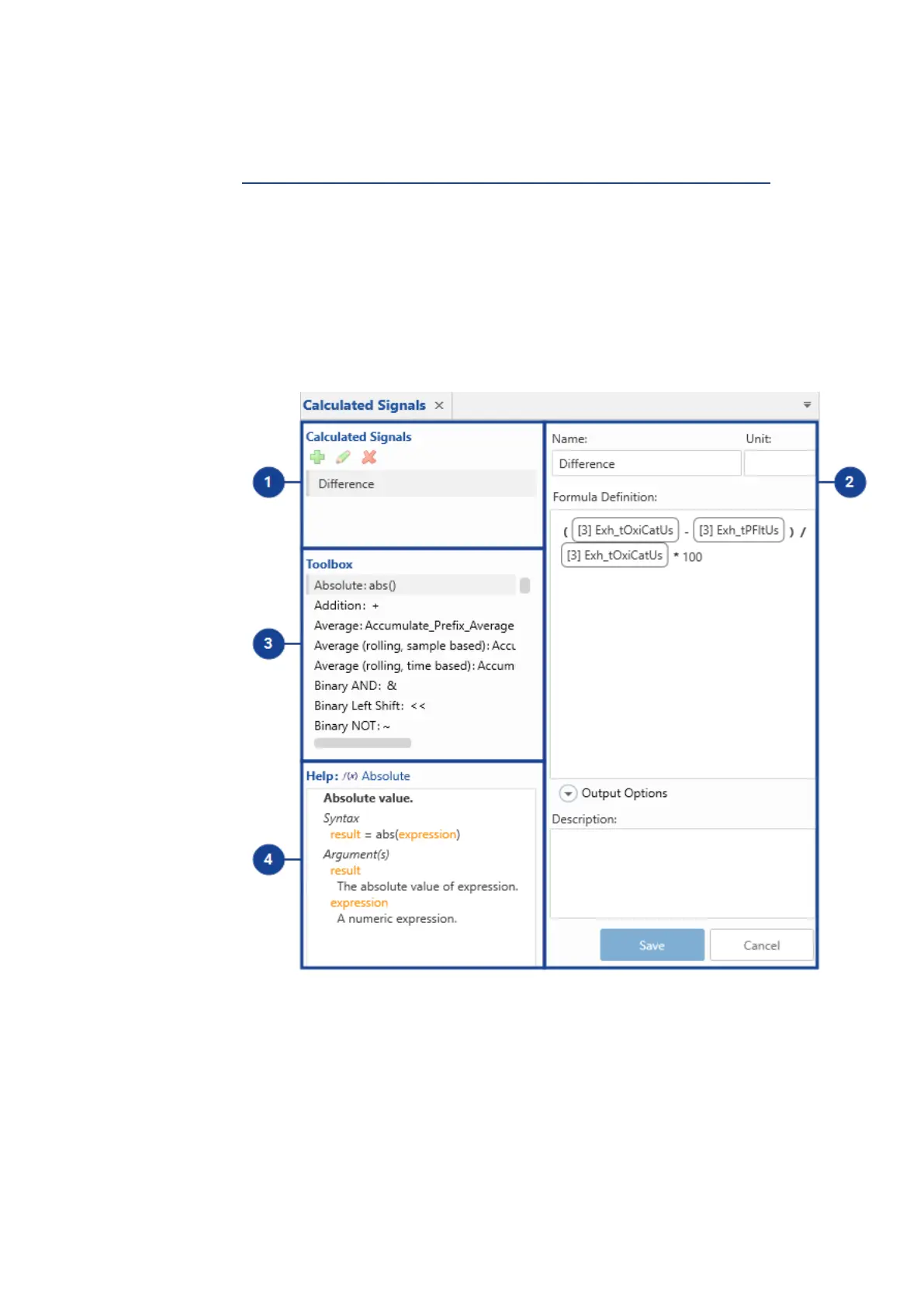

The calculated signals editor is divided into the following areas:
MDA V8.5 - User Guide 52
