System Basics 97
When the summary view has been collapsed to show only intensity data, you may include
focus, color, or beam data in the summary view by holding down [Data] and any of the
encoder paging keys (Focus, Color, Image, Shutter, or Form) This displays all categories again.

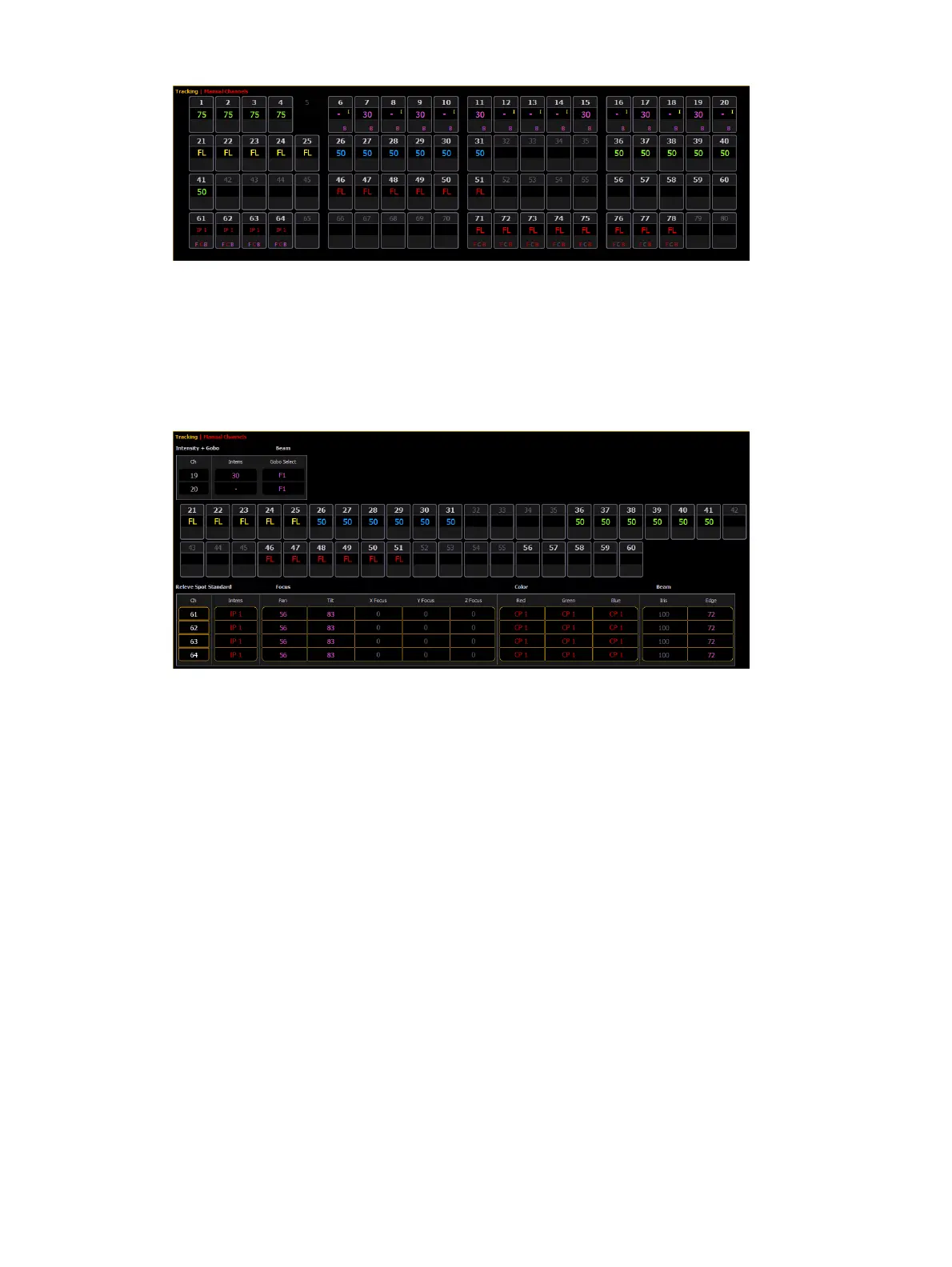

Table View
Table view is available in Live or Blind. Unlike summary view, table view displays the fixture
type associated with channels and details about each channel’s category and parameter levels.
In Live, table view displays all active channel data being output from Eos. In Blind, it will
display all data for a single record target (cue, preset, palette) depending on what is viewed. In
table view, focus, color, and beam information can be viewed in either a summary of these
three categories or an expanded view to show all parameter data.
To expand a category to show detail, press the [Data] key and the associated parameter key.
For example, [Data] [Color] will change the color category from a summary view to a detailed
one. To collapse a category. press the [Data] key and the associated parameter key. You
cannot hide a category from view.
When a category has been expanded, to hide or reveal only certain parameters, press and hold
[Data] and then select the parameter buttons of the appropriate parameters in the CIA. The
parameters will be displayed or suppressed depending on the current view.
Notice that when you hold down the [Data] button, the buttons of parameters that are
currently selected for viewing will be highlighted in the CIA.
In the table, a slight space is provided between fixture types, giving a clear delineation
between them. The name of the fixture type is displayed at the top of the section for that
fixture.
Channels with only intensity parameters will display the same as in summary view.
Preview Mode in Live
A {Preview} softkey is available when in Live Summary.
