Console Overview 19

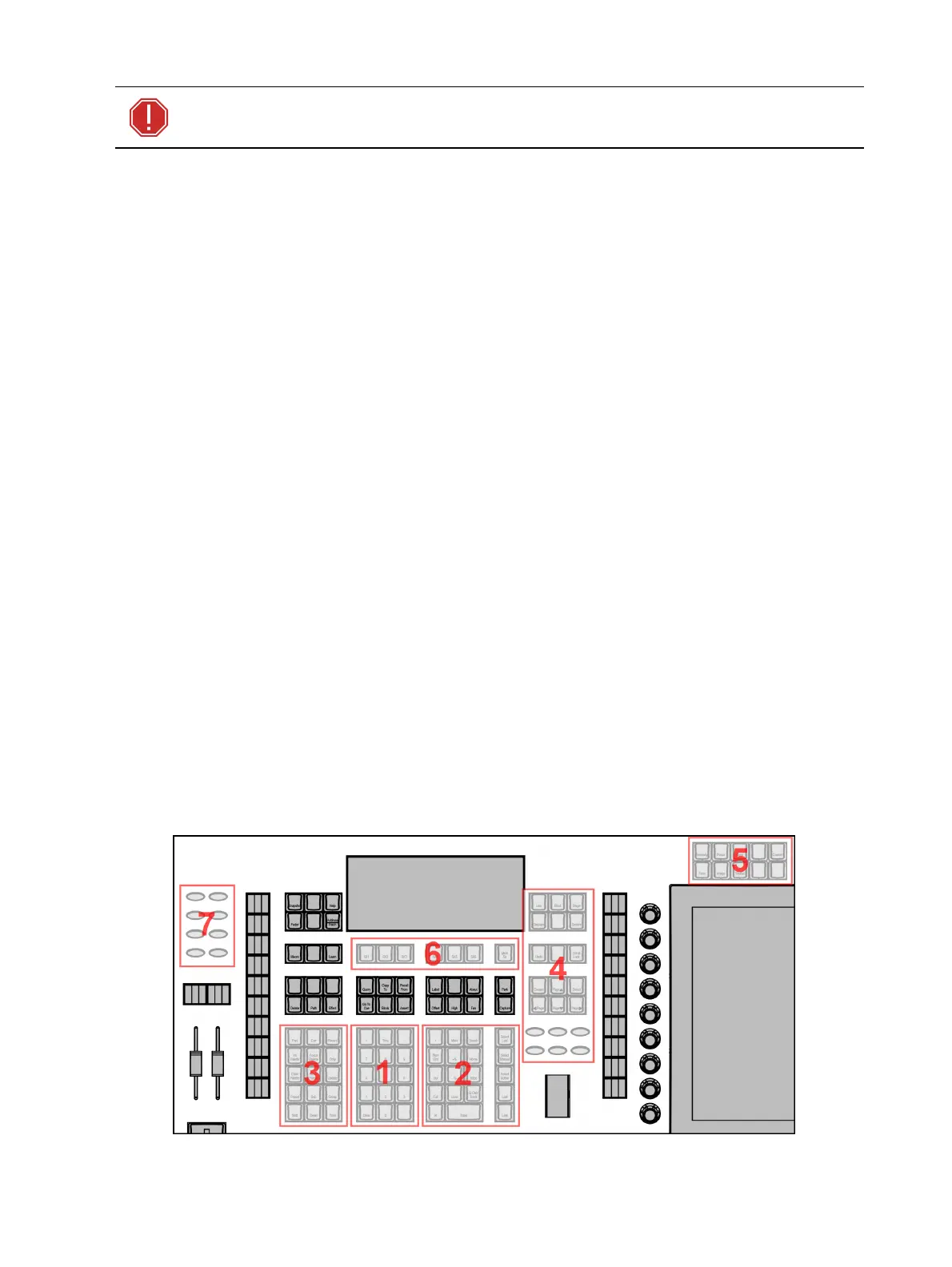

WARNING: Before servicing your console, you must switch off the power
on the rear panel and disconnect the power cord completely.
Internal Touchscreens
Apex consoles are designed with one (Apex 5) or two (Apex 10 and 20) internal touchscreen
displays, supporting haptic feedback or pressure-sensitive touch. The main touchscreens may
be used to display and control show data. They may also be used as a variety of other virtual
controls and displays.
Touchscreen position can be changed by freely adjusting the screen panel's height and angle.
Touchscreen brightness can be controlled via the
Brightness Settings (on page215)
External Monitors
Windows 7 Ion Classic can support up to 2 monitors, either 2 DVImonitors or 1 Display Port
and 1 DVI.
Display Port can use an active adapter to VGA, DVI, or HDMI. DVI-I can be converted to VGA
with a passive adapter.
Monitor Specifications
Windows 10 consoles
Display resolutions of 1920x1080 (minimum) to 3480x2160 (maximum) are supported
Each display may be utilized in landscape or portrait mode
Multi-touch display support requires the following:
Data connection via USB-A or USB-C cable per multi-touch monitor
Windows Human Interface Device (HID) compliant touch displays, utilizing Windows
standard driver
Displays must process five or more points of simultaneous touch
Display Data Channel / Control Interface (DDC/CI) is supported for control of external
monitor brightness
Windows 7 consoles
Output to 4K resolution monitors my affect performance.
For monitor configuration, see
{Monitor Arrangement...} (on page550)
.
Hardkeys
