14 Source 4WRD II Installation and User Manual

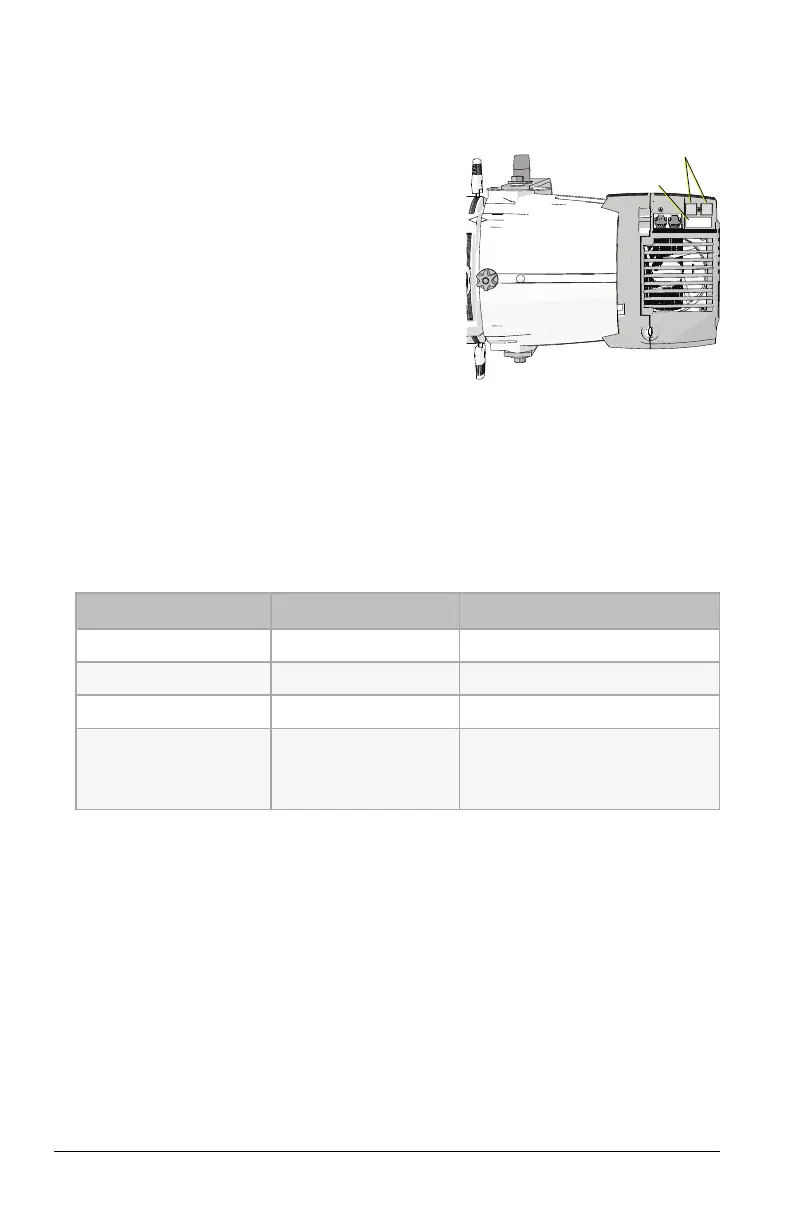

Configure the Fixture
Up and down
navigation buttons
User interface
The two-button, seven-segment display
shows the DMXaddress, ACmode, or
the manually-set level. Use the up and
down navigation buttons to configure
the fixture.
•
Set a DMX address: Use the up and
down arrows to navigate to
thedesired DMX address number
(1–512).
•
Set the fixture to use line-dimming
(ACmode): Use the down arrow to
navigate one number below DMX
address 1. The display will read AC.
•
Manually set a level: Use the down arrow to navigate one number
below AC. The display will read L.FL (Level = Full). Usethe down
arrow to decrease the level to a percentage of full (L.99 = 99%,
L.98 = 98%, etc.). You can set levels from 0%–100% (full).
RDMValues
Parameter RDMPID Value
Manufacturer ID 0x6574 Electronic Theatre Controls
Model ID 0x0801 ETC Source 4WRD II (230V)
DMX Start Address 0x00F0 Range = 1–512
Personality ID 0x00E0 1 = DMX
2 = ACDimming
3 = Local Control
