1 Installation and User Interface 21
Power and Data Cabling Requirements
Power
The Source 4 LED fixture operates on AC power, 100 to 240VAC/50-60Hz. The fixture must
be connected to a non-dimmable power source in order to avoid damage to its internal
power supply and other electrical components.
Data
The Source 4 LED fixtures operate on a DMX control signal or as standalone fixtures. The
fixture is supplied with a 5-pin XLR DMX input connector and a 5-pin DMX Thru connector.
DMX cables should be acceptable for DMX data transmission (not microphone cable) and
should follow the standard pinout. The optional secondary data pair is not used by the
Source 4 LED fixtures. The maximum DMX data run from any DMX source to the last fixture
in a chain is 1000 feet (300m). Source 4 LED fixtures are self-terminated.
See DMX Profile, page 23 for additional information on DMX addressing of Source Four
LED Profile fixtures.
WARNING:
The fixture must be connected to a non-dimmable power source in order to
avoid damage to its internal power supply and other electrical components.
Dimming will damage the fixture and void the warranty.

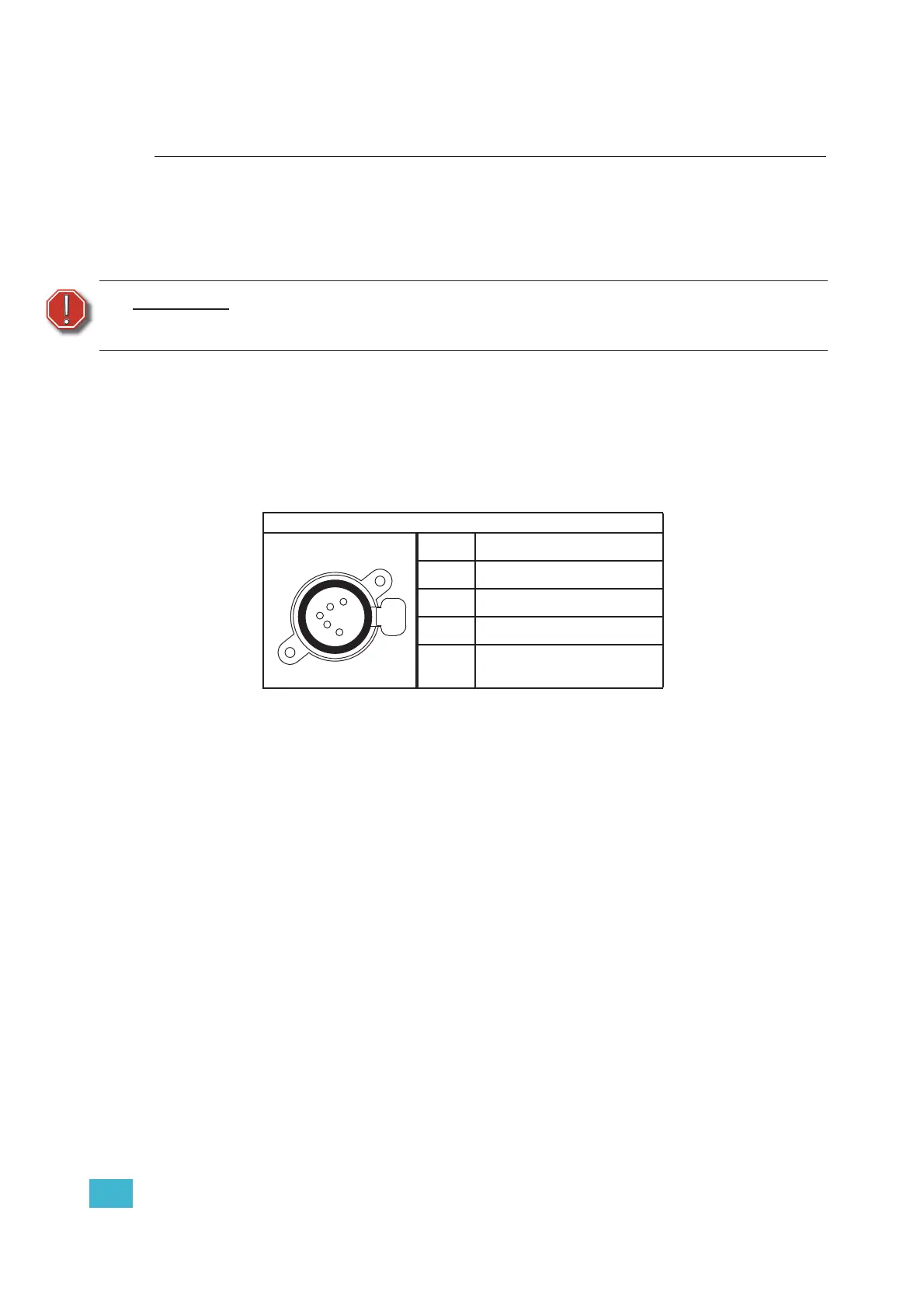

DMX512 pinout for five-pin XLR female
1 Common (Shield)
2Data –
3Data +
4 not connected
5 not connected
Push
1
2
3
4
5
