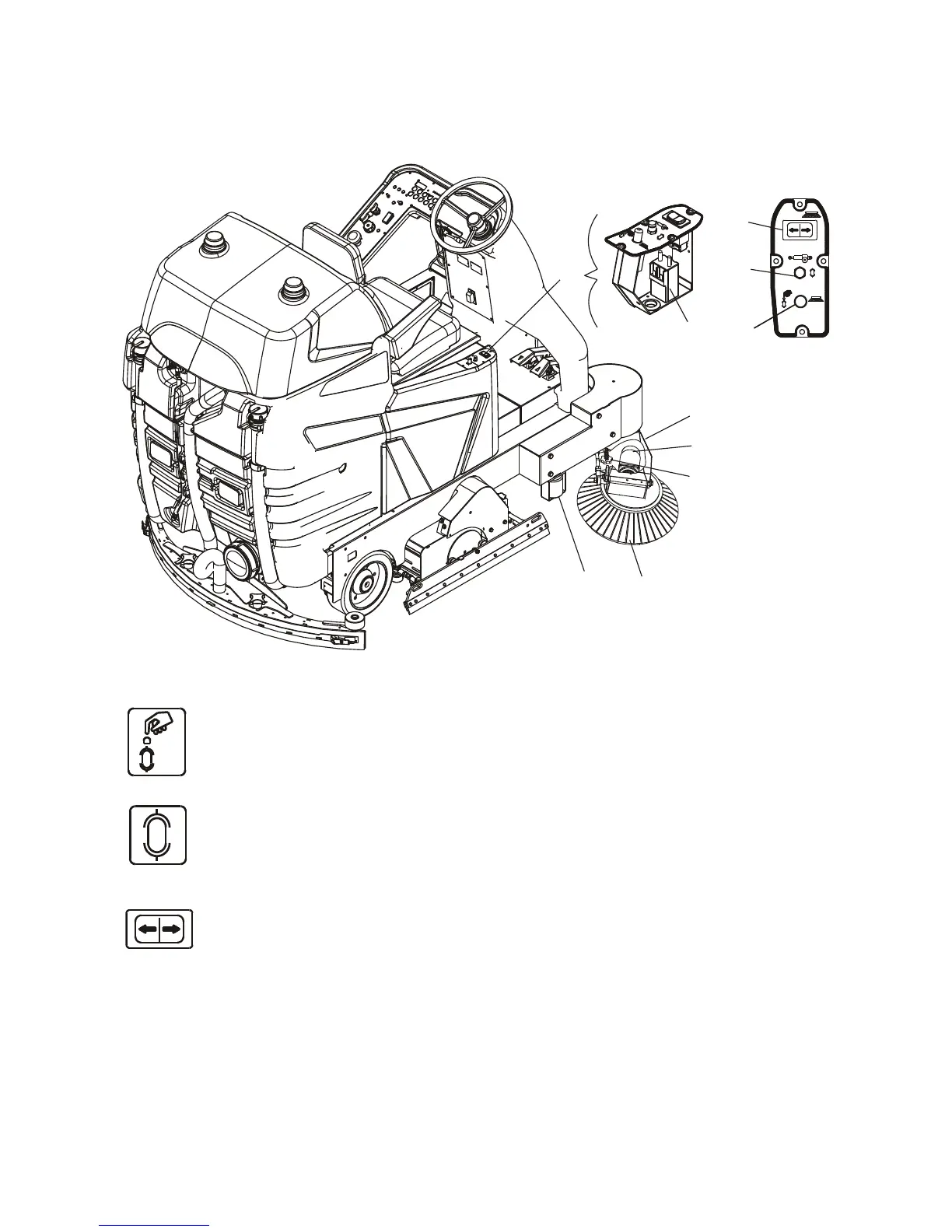

Eureka E110 - Optional- Description of the Machine with the Right Side Sweeper Brush

44
OPTIONAL
RIGHT SIDE SWEEPING BRUSH
1
6
9
7
10
8
2
3
4
5
1. SIDE BRUSH CONTROL PANEL
2.
RESET FUSE – When the brush motor exceeds the established current draw for a few minutes, the
fuse trips and stops the motor. Wait 1-2 minutes, press the fuse button and the brush will start
working again.
3.
FUSE - 3 A glass fuse to protect the brush lifting actuator
4.
BRUSH CONTROL BUTTON – By pressing the right side of the button, the brush drops
and comes out of the side. By pressing on the left side of the button, the brush returns in and
lifts up.
NOTE – the side brush only turns when the main brushes are operating.
5. REMOTE-CONTROL SWITCH
6. BRUSH PLATE
7. GEAR MOTOR
8. BRUSH PRESSURE ADJUSTMENT HANDWHEEL
9. BRUSH
10. BUFFER ROLLER
