Eureka E110 - Splash Guard Blades Rotation;Replacement; Cleaning the Dirt Container

33

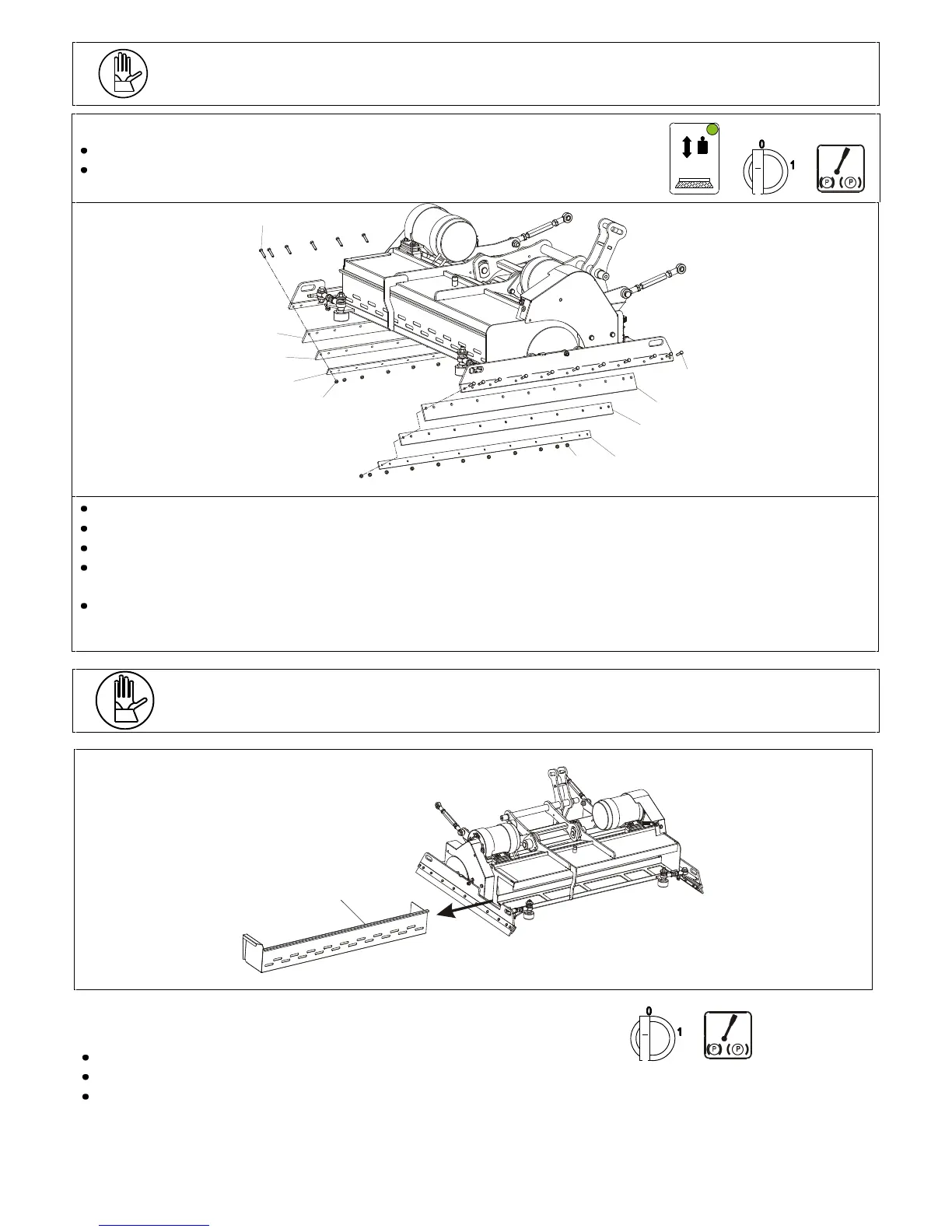

ROTATING OR REPLACING THE SPLASHGUARD BLADES
Follow the instructions below to rotate or replace the splashguard blades :
Turn off the brushes function and lift the brush plate;
Turn off the machine, remove the key and the battery connector and put on the
brake.
1
1
2
2
3
3
4
4
5
5
Use a 10mm hex wrench and remove the nuts (pos 1)
Unscrew the screws (pos 2)
Remove the internal rubber locking plate (position 3) and the internal rubber (pos 4);
Remove the blade (pos. 52), rotate it 180° and put it back into place if the external edge is in good condition,
otherwise replace it with a new one
Put the rubber, the internal plate and the sheet (pos 3) back into place with the anti-slip surface on the rubber, using the
screws. Before fixing completely the screws, make sure that the rubber is equally distributed over the entire length. Fix
the nuts.
CLEANING THE DIRT CONTAINER
1
With the lifted plate turn off the machine and remove the key, insert the brake.
Lift slightly the dirt container (pos 1) releasing it from its place and remove it.
Empty the dirt container. Clean the dirt container with water and remove all pieces tangled in the net. Remount the
container making sure it is well locked in its place.
