Eureka E110 - PIPE FITTING AND SUCTION FILTER CLEANING

35
CHECKING OR REPLACING FUSES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
To check or replace the fuses on the switchboard proceed as follows:
Bring the machine into a stop position in a flat surface area, turn the key in pos. 0 and put on the
brake;
Press the emergency button (pos.19);
Remove the 6 locking screws pos.16 from the fuse holder hood pos.15 and remove it;

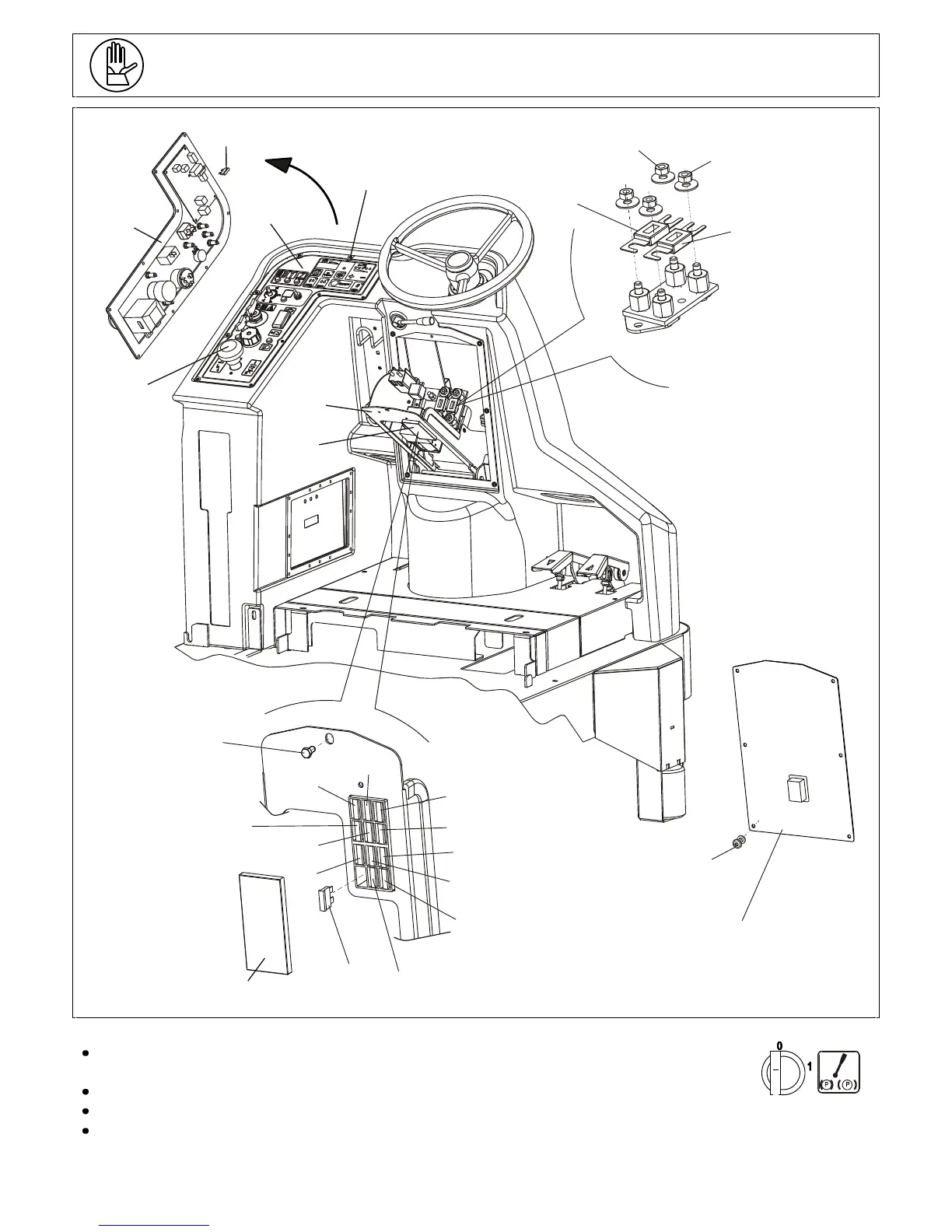

To make fuse changing more accessible, remove the screw (pos. 14) and open the control panel box (pos. 18) as
shown in the illustration;
