Eureka E75/2 - Battery Installation Procedure

12
INSTALLING BATTERIES
CAUTION: USE PROTECTIVE GLOVES AND GOGGLES WHEN HANDLING BATTERIES, AVOIDING
ANY CONTACT WITH THE ACID INSIDE THE BATTERIES.
Refer to the specification sheet for battery types and sizes suitable for the machine.
L= 260 mm
6
L= 180 mm
8
L=535 mm
L=685 mm
+
9

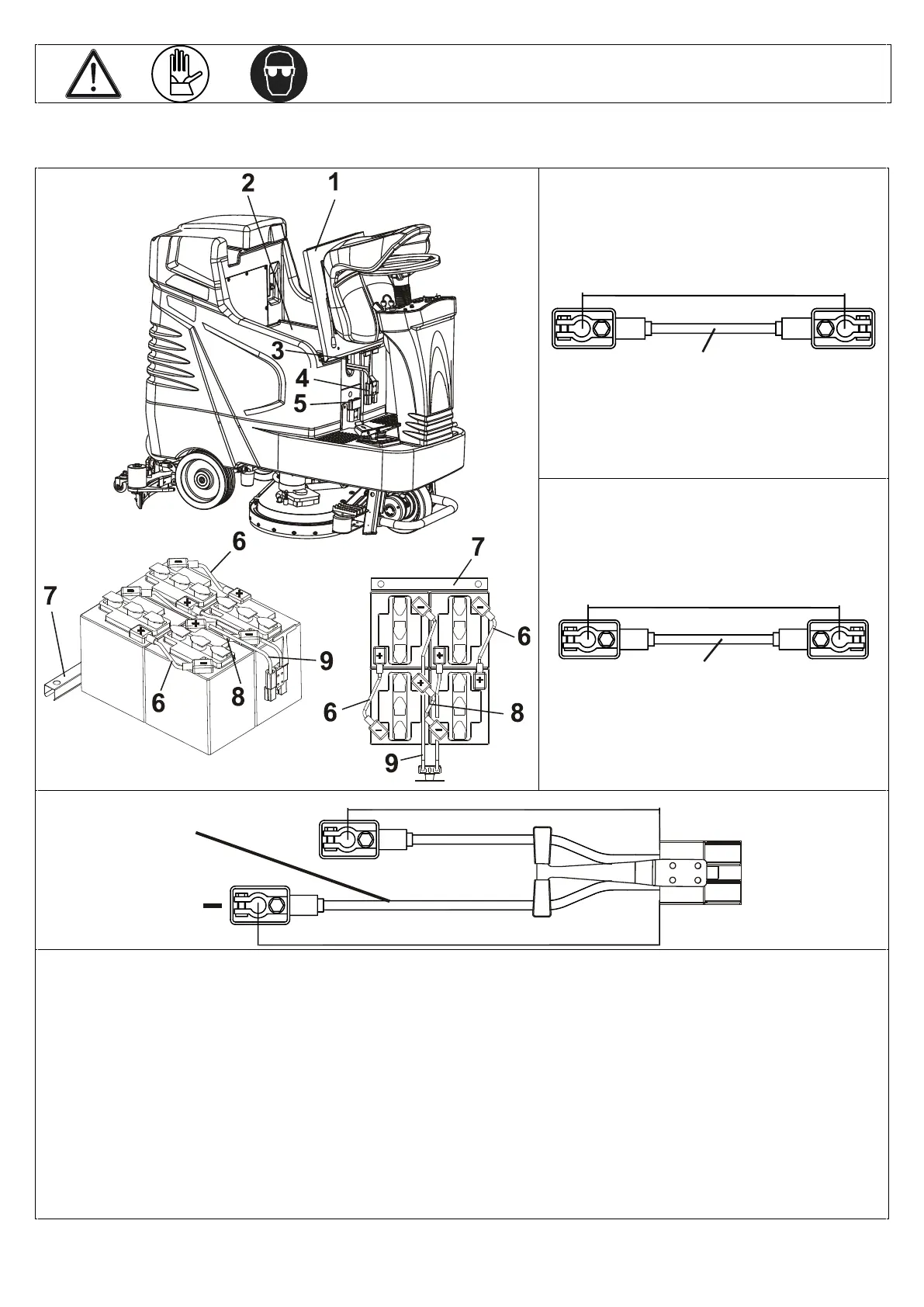

Follow the instructions below to mount the batteries to the machine:
• Park the machine on a levelled area, put on the brake and remove the key;
• Unplug the mobile connector (pos. 4) from the fixed connector (pos. 5);
• Open the hood of the seat (pos. 1);
• Position the four 6V batteries into the battery box inside the battery compartment (pos. 2), if necessary position the
spacer (pos. 7) as shown in the figure;
BE VERY CAREFUL NOT TO TIP OVER THE BATTERIES AS ACID COULD SPILL AND DAMAGE
THE MACHINE.
• Ensure that the poles of the batteries are clean and apply a thin layer of Vaseline;
• Use the cables (pos. 6-8) provided with the machine and connect the batteries, as shown the in the figure;
• Insert the cables (pos. 9) through the provided opening on the tank (pos. 3) and connect them to the batteries as shown
in the figure;
• Connect the mobile connector (pos. 4) to the fixed connector (pos. 5).
